Apple-1 Texas Instruments 16-Pin Socket Variations
TI closed-border sockets were produced with several very subtle variations, in some cases but not always with different part numbers.

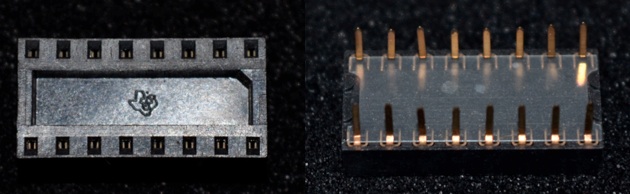

Variation 1 Details
-
TI (“point” dotted “i”) logo with no letter.
-
Non-textured border, sometimes observed with corner pin numbers.
-
Plastic backing.
-
Copper/gold-colored legs, tin inlay.
-

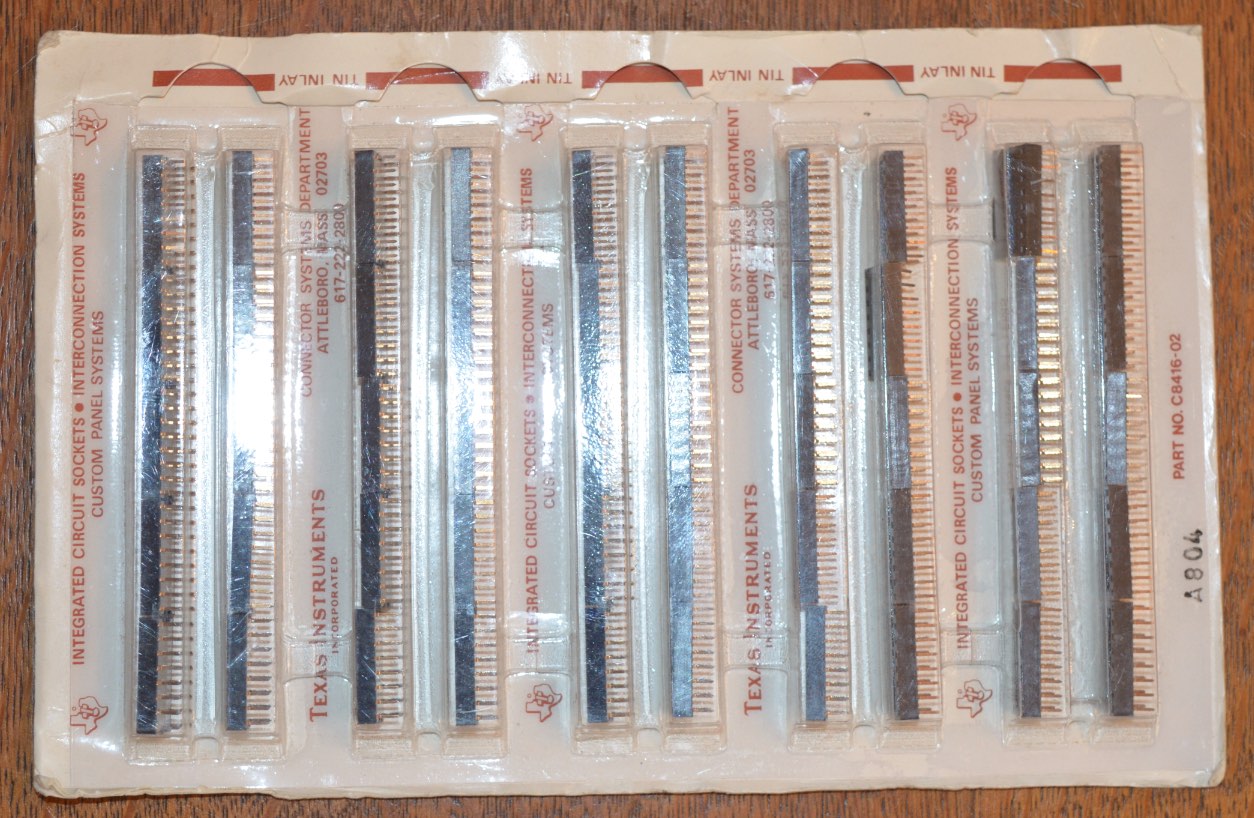

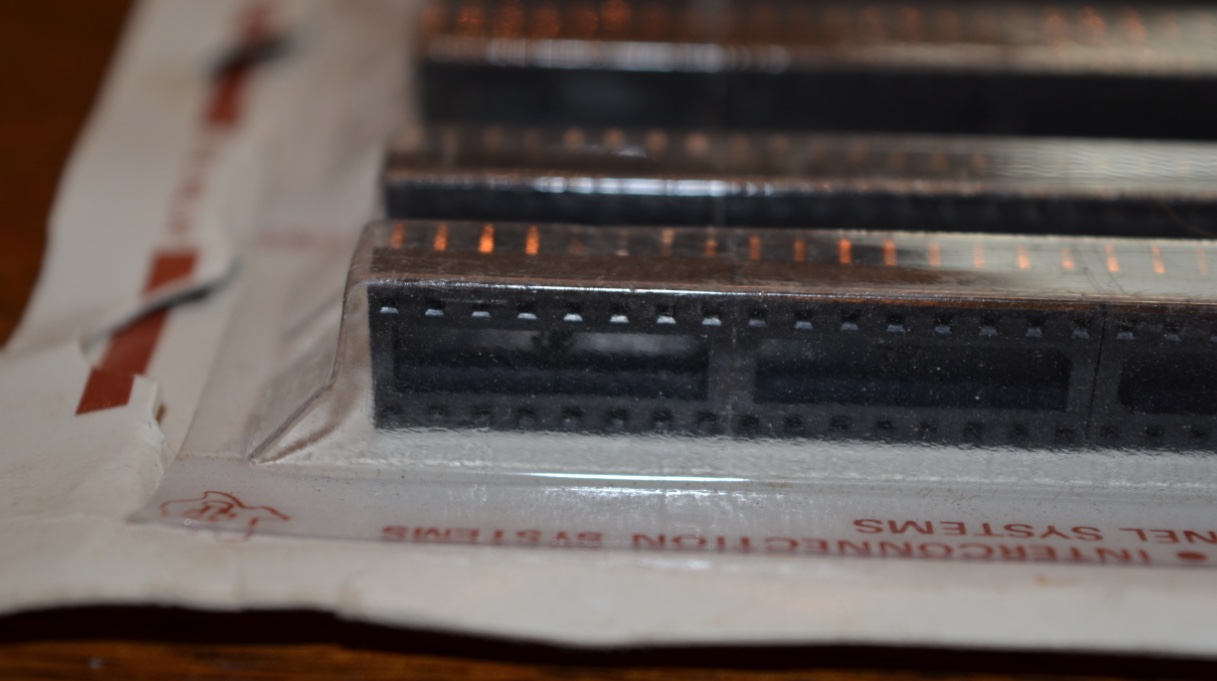

Part number: C8416-02.
-
Date code on package: “A804” (4th week in 1978)?

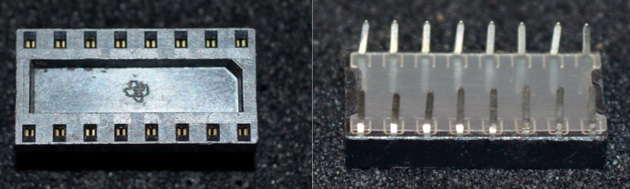

Variation 2 Details
-
Slightly smaller TI (“point” dotted “i”) logo with no letter.
-
Non-textured border with or without corner pin numbers.
-
Plastic backing.
-
Tin-colored legs, gold-colored inlay.
-
Note: Corner numbers are visible on some but not all Variation 2 sockets. This seems to be true with other variations too.

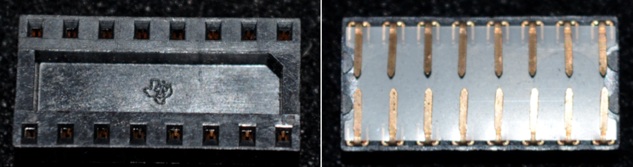

Variation 3 Details
-
Slightly smaller TI (“point” dotted “i”) logo with no letter.
-
Non-textured border, with or without corner pin numbers (“9” and “16” on this one).
-
Plastic backing.
-
Copper/gold-colored legs and inlay.

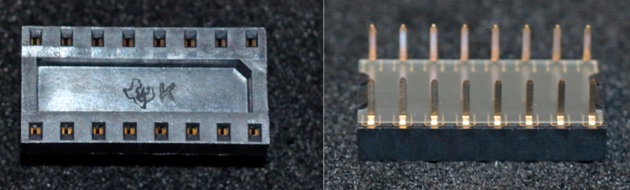

Variation 4 Details
-
Slightly larger TI (“point” dotted “i”) logo with letter.
-
Non-textured border, no pin numbers.
-
Plastic backing.
-
Copper/gold-colored legs and inlay.
-

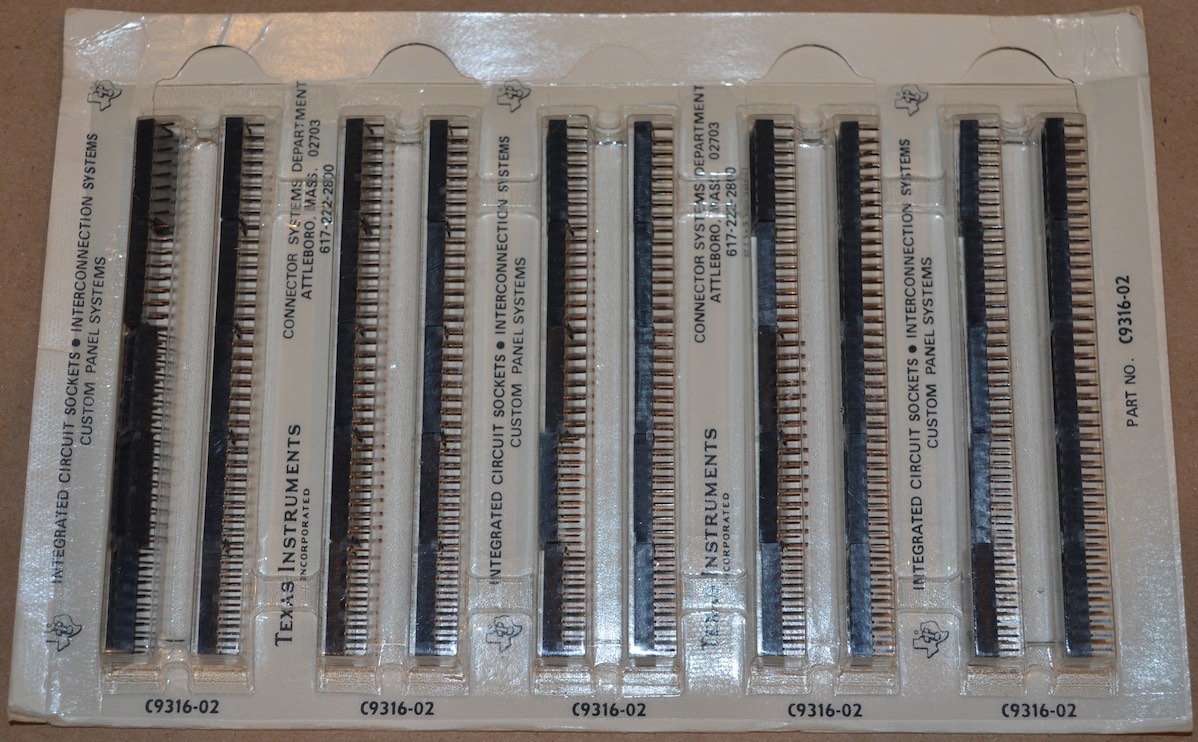

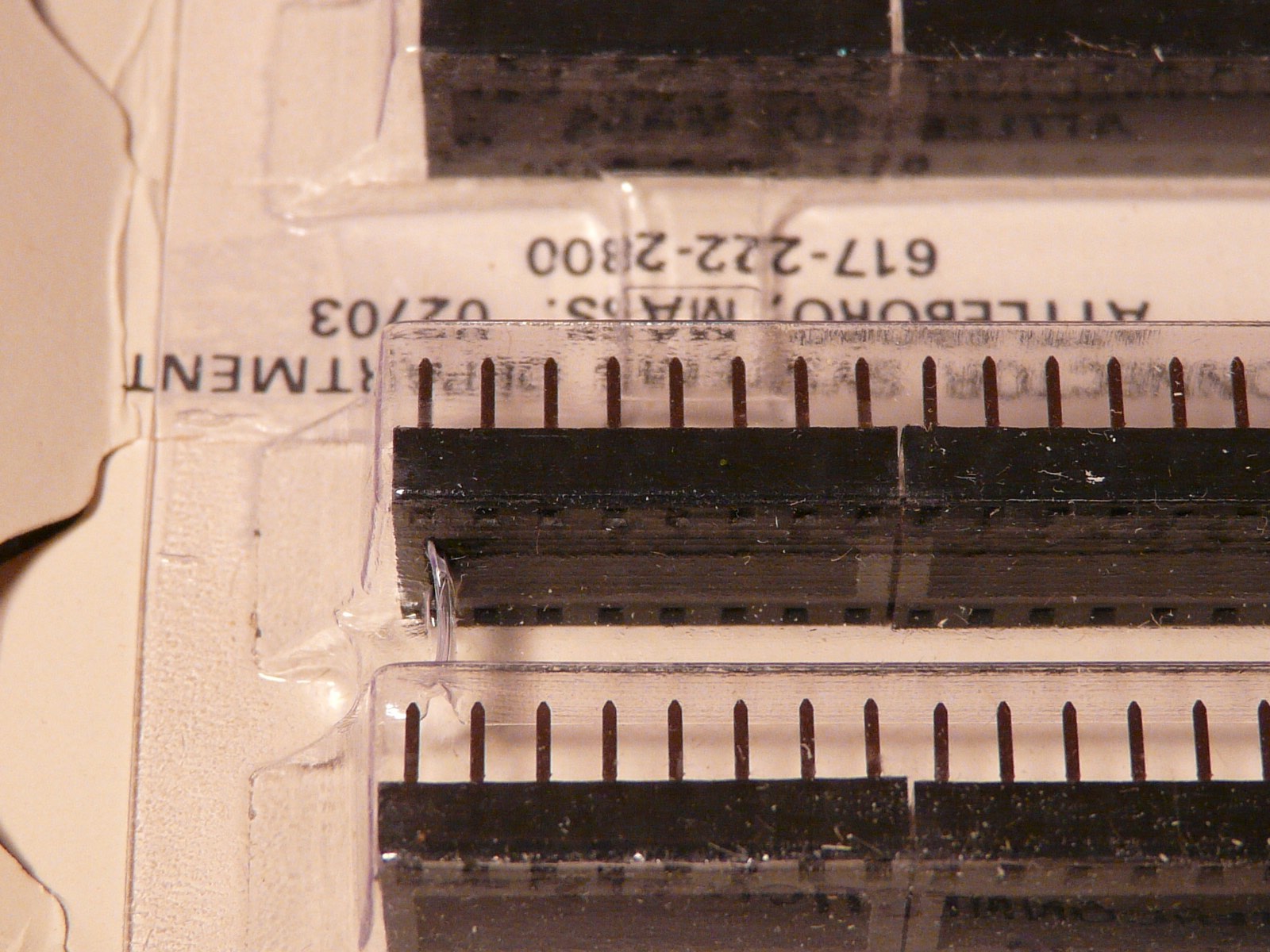

Part number: C9316-02.
-
“A841” date stamp (41st week in 1978)?

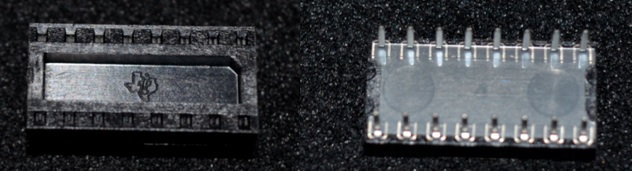

Variation 5 Details
-
Larger, bold TI (“donut” dotted “i”) logo with no letter.
-
Slightly textured border, no pin numbers.
-
Plastic backing.
-
Tin-colored legs and inlay.

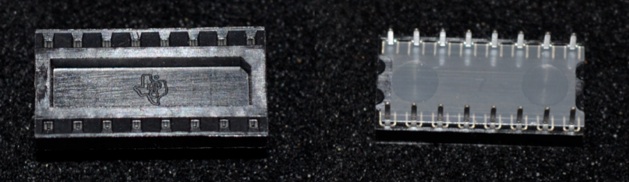

Variation 6 Details
-
Larger, bold TI (“donut” dotted “i”) logo with no letter.
-
Non-textured border, no pin numbers.
-
Paper backing.
-
Tin-colored legs and inlay.

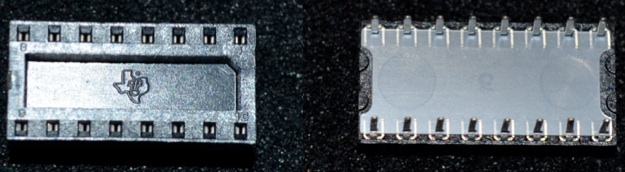

Variation 7 Details
-
Larger, bold TI (“donut” dotted “i”) logo with no letter.
-
Slightly textured border with corner pin numbers.
-
Plastic backing.
-
Tin-colored legs and inlay.
