Apple ][ Parts

Cassette Audio In/Out Connectors

Manufacturer?

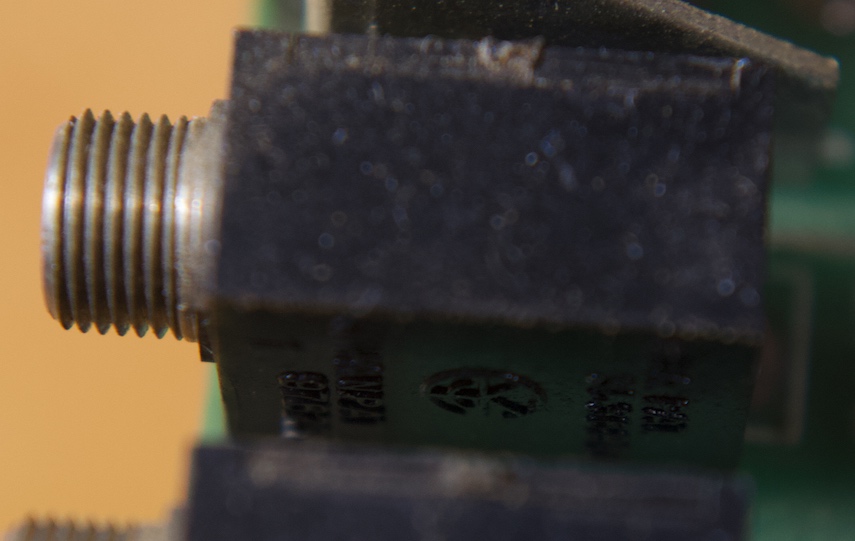

From a photo of Rev. 0 board 1070 (A2S1-0800), near location K13.
Total # on board: 2.

Manufacturer?

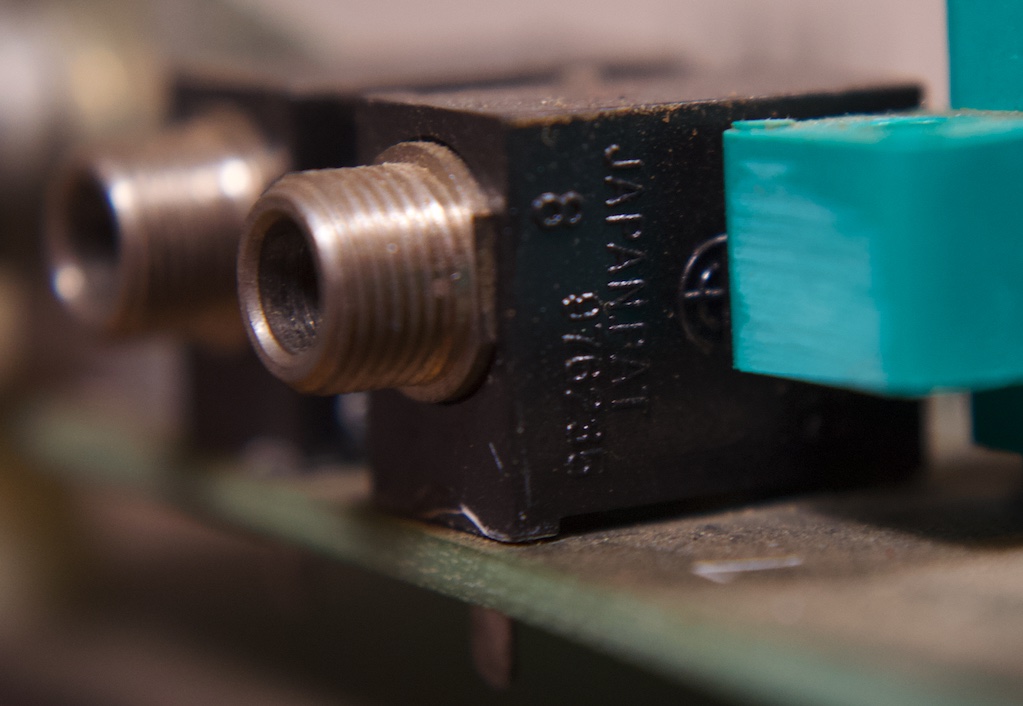

From another angle on Rev. 0 board 1070.

Manufacturer?

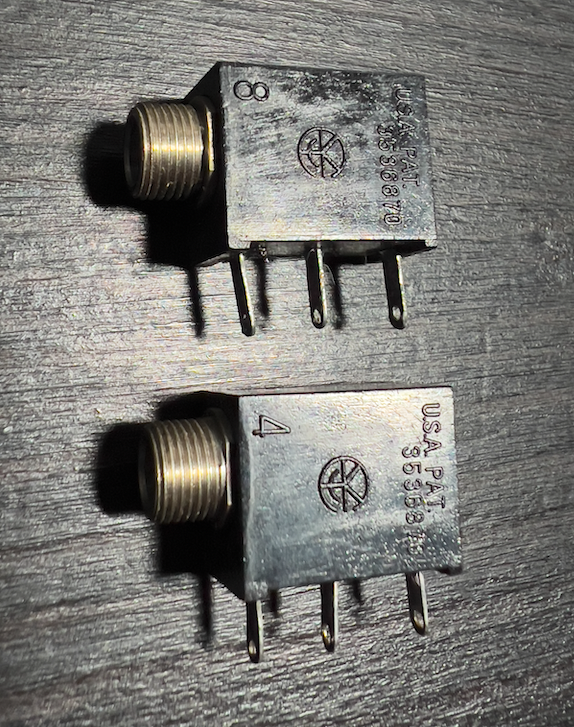

Parts for my Rev 0 replica. Missing the “JAPANPAT” embossed lettering. Used pulls.

Composite Video Output Connector

Manufacturer?

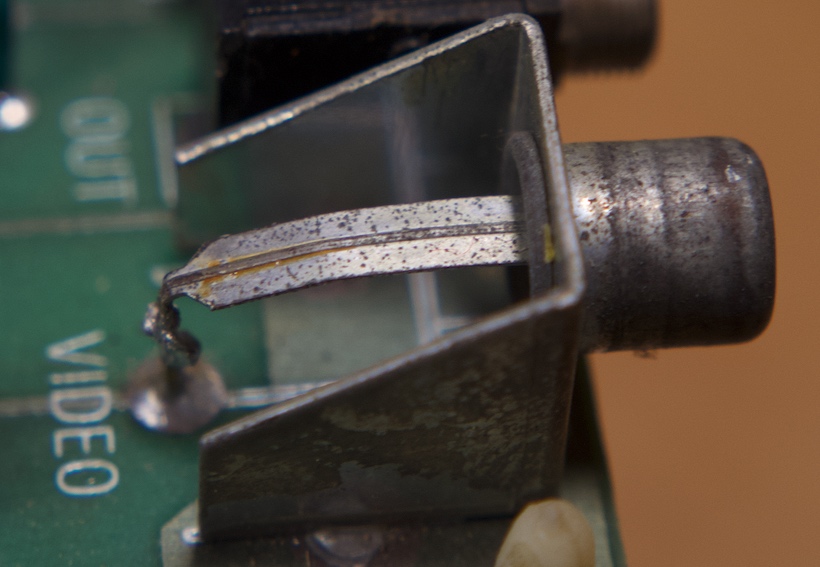

From a photo of Rev. 0 board 1070 (A2S1-0800), near location K14.
Total # on board: 1.

Manufacturer?

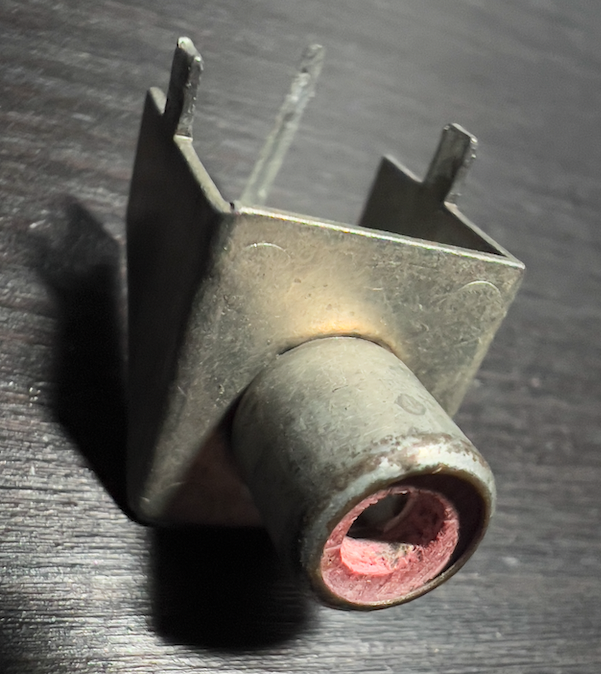

Part for my Rev 0 replica.

6-Pin Power Connector

Manufacturer?

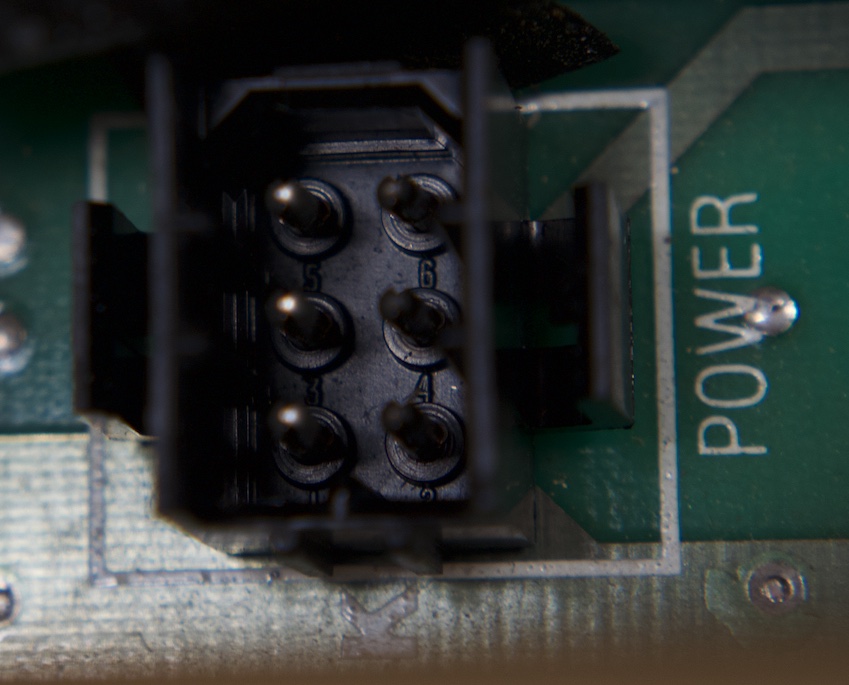

From a photo of Rev. 0 board 1070 (A2S1-0800), near location K1.
Total # on board: 1.

AMP

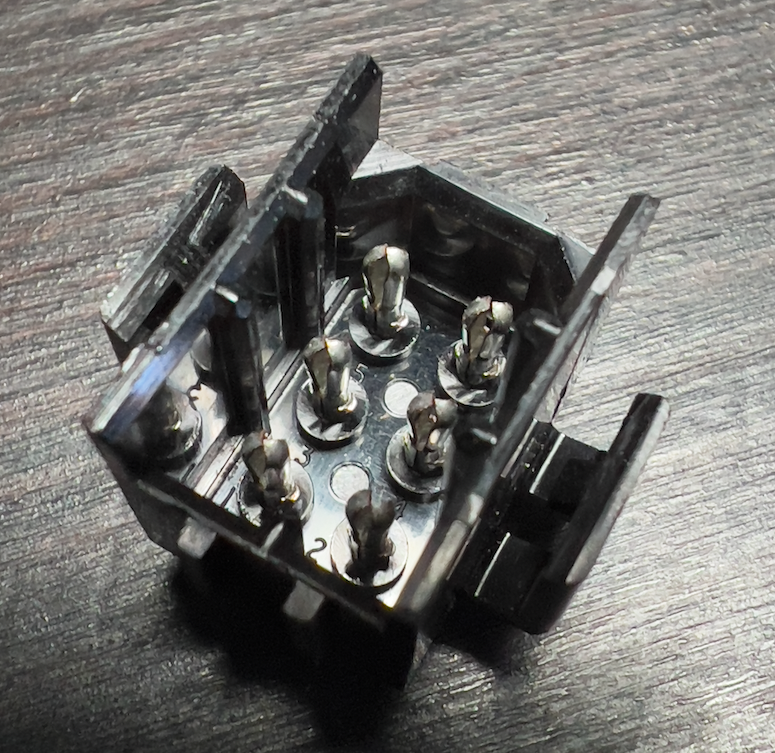

Part for my Rev 0 replica. “AMP” on the back, internal embossed numbers are slightly different from original.

Alternate Video Output Connector

Manufacturer?

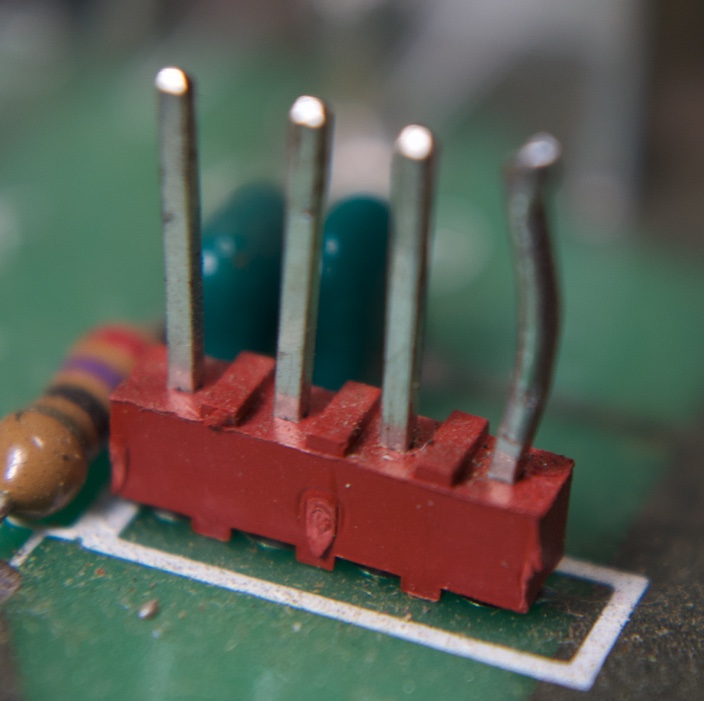

From a photo of Rev. 0 board 1070 (A2S1-0800), near location K14.
Total # on board: 1.

Manufacturer?

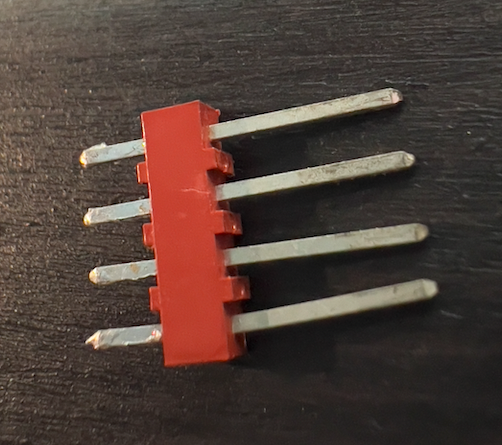

Part for my Rev 0 replica.

Speaker Output Connector

Manufacturer?

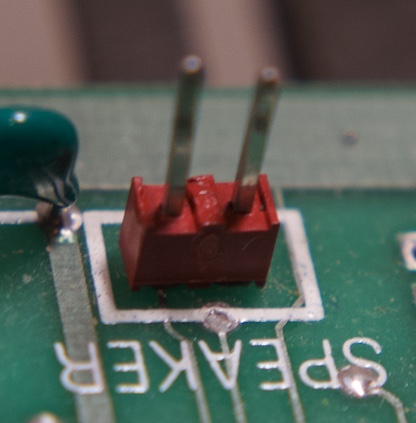

From a photo of Rev. 0 board 1070 (A2S1-0800), near location B14.
Total # on board: 1.

Manufacturer?

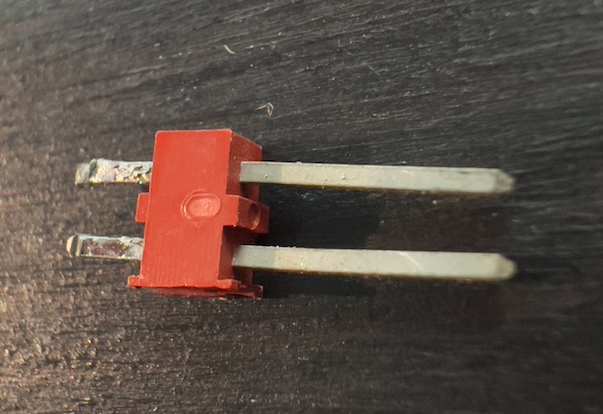

Part for my Rev 0 replica.

Crystal

Sentry Manufacturing

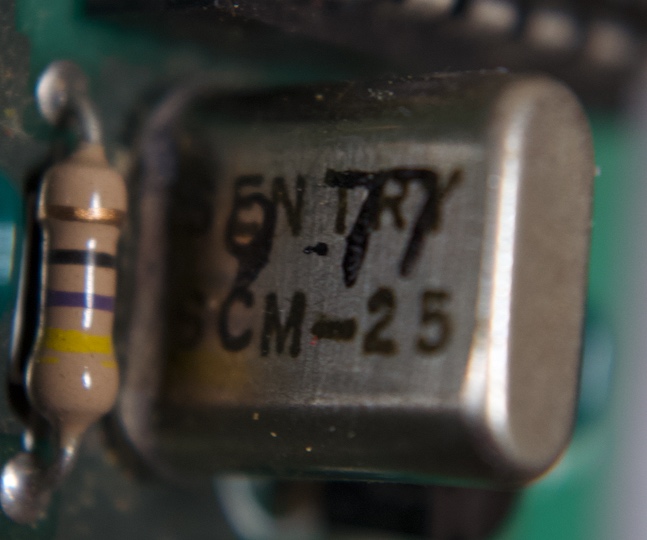

From a photo of Rev. 0 board 1070 (A2S1-0800), near location A1.
SCM-25 9-77 date code.
Frequency ?
Total # on board: 1.

Sentry Manufacturing

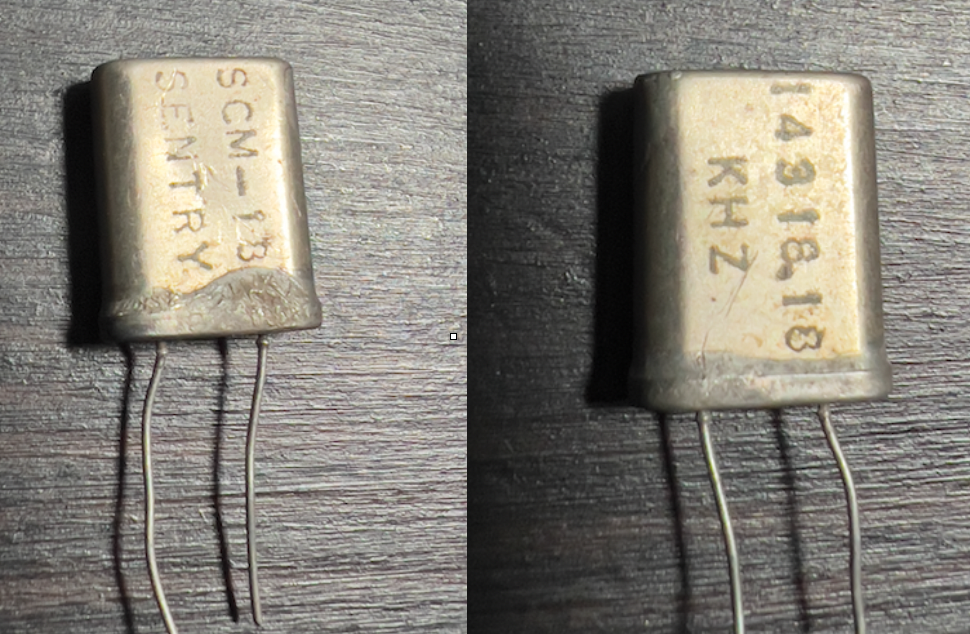

Part for my Rev 0 replica. SCM-18, 14318.18 KHz.

SCM-25 is the case designation for plug-in, and SCM-18 is the case designation for wire leads.
