8-Pin IC Sockets
Robinson-Nugent

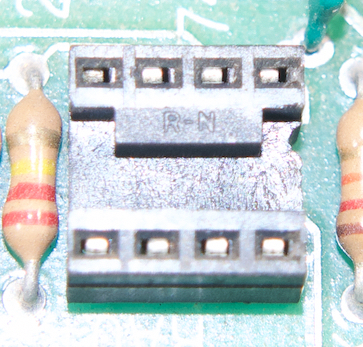

From a photo of Rev. 0 board 1070 (A2S1-0800), near location K13. Another is near location B3.
Plain “R-N” logo, tin inlay.
Total # on board: 2.

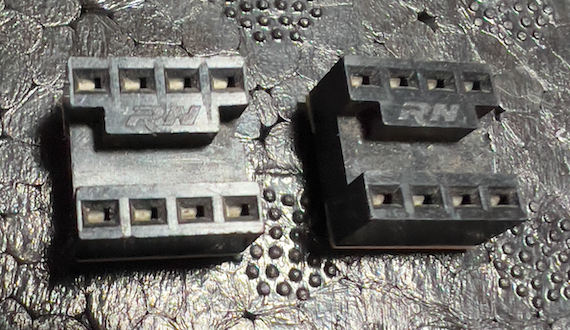

Robinson-Nugent
Parts for my Rev 0 replica.
Large stylized “RN” logo, tin inlay. NOS.
14-Pin IC Sockets

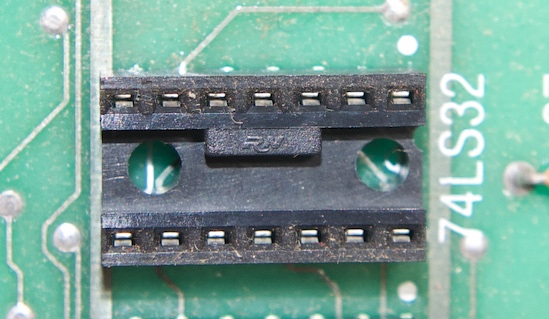

Robinson-Nugent
From a photo of Rev. 0 board 1070 (A2S1-0800).
Small stylized “RN” logo, tin inlay.
Total # on board: 14.
Robinson-Nugent

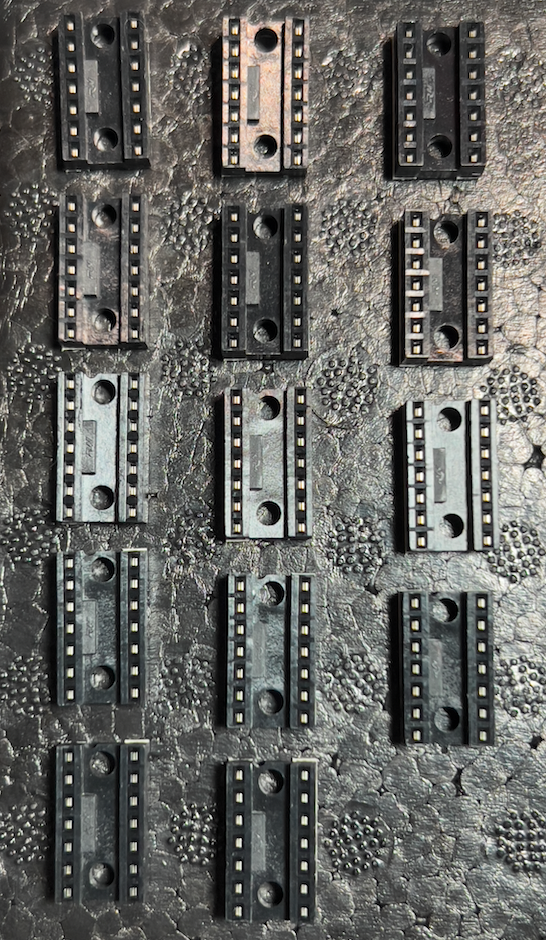

Parts for my Rev 0 replica. Part #:
ICN143 T.
Small stylized “RN” logo, tin inlay. NOS, have all 14.
16-Pin IC Sockets
Robinson-Nugent

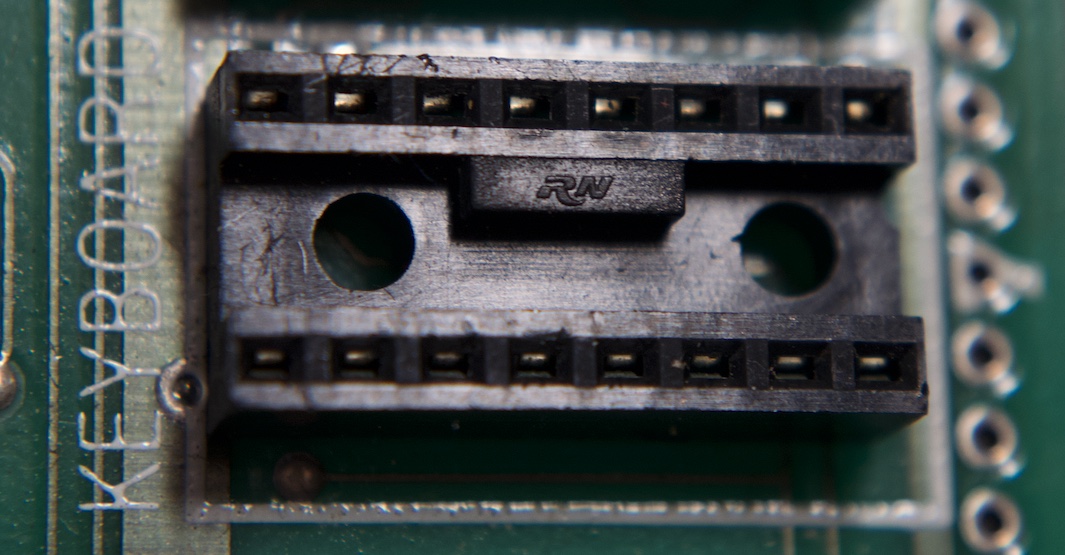

From a photo of Rev. 0 board 1070 (A2S1-0800).
Small stylized “RN” logo, tin inlay.
Total # on board: 62.
Robinson-Nugent

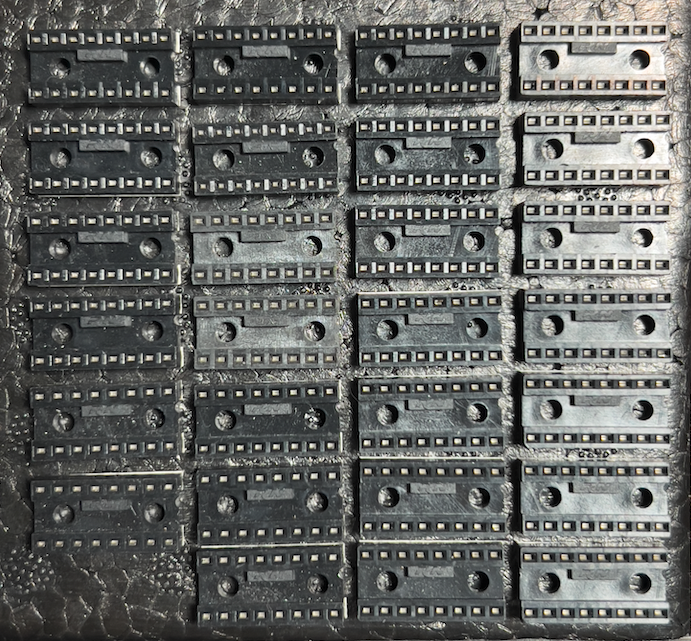

Parts for my Rev 0 replica.
A couple of plain “R-N"logos, but mostly the large stylized “RN” logo, tin inlay. NOS, have 58 so need 4 more.

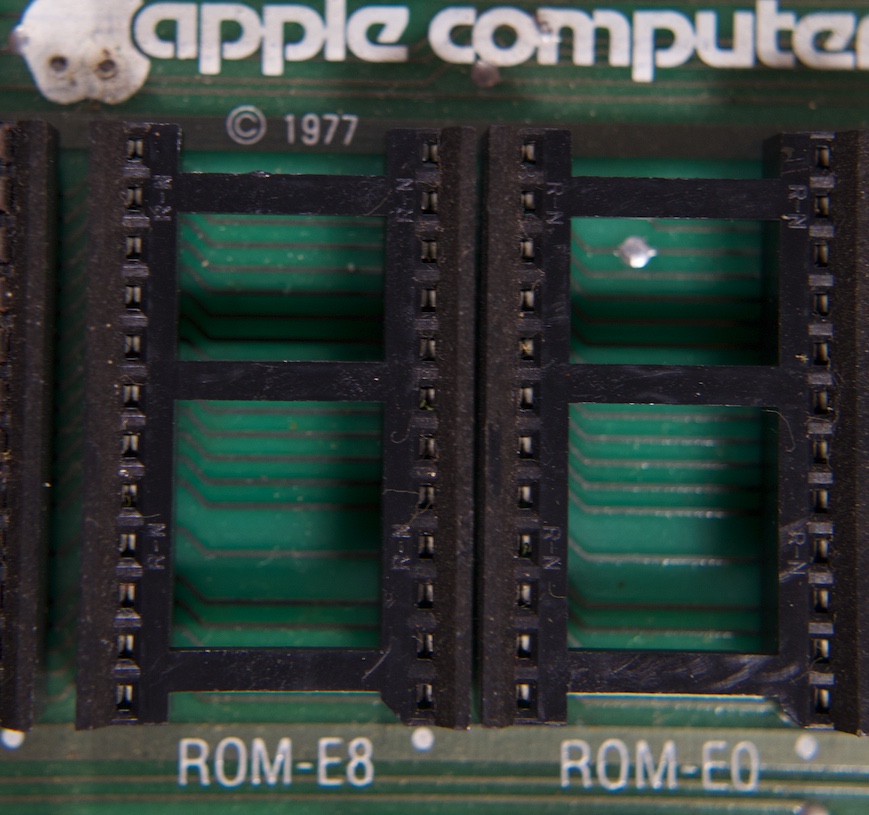

24-Pin IC Sockets
Robinson-Nugent
From a photo of Rev. 0 board 1070 (A2S1-0800), location row F.
Both plain “R-N” and small stylized “RN” logos on sides, tin inlay.
Total # on board: 7.
Robinson-Nugent

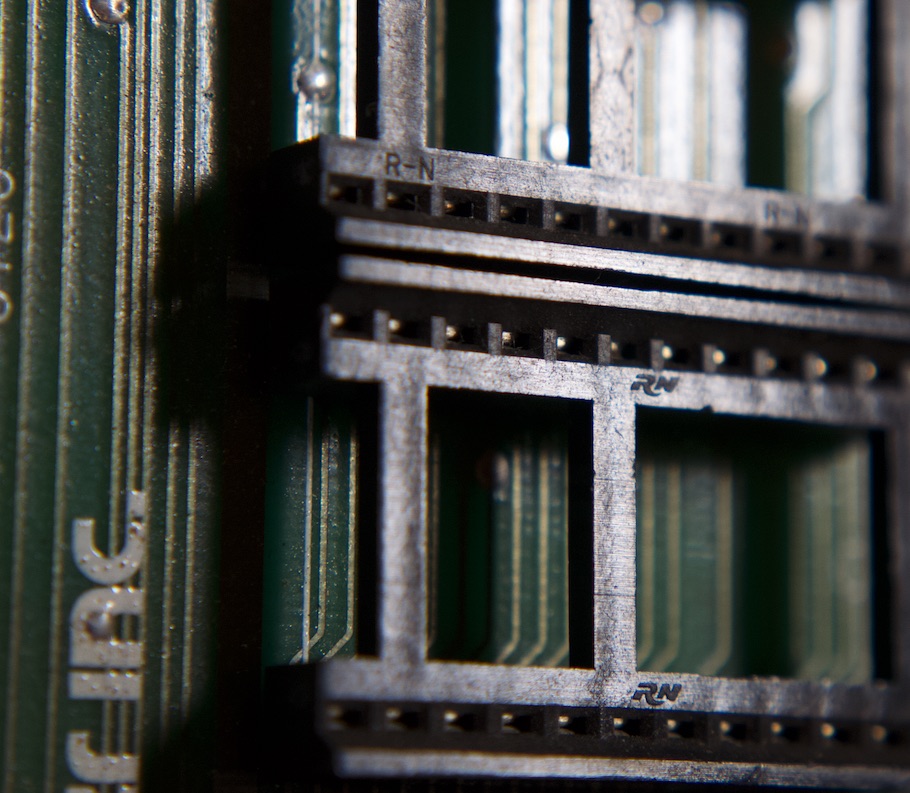

From another photo of board 1070 showing two of the sockets with the plain “R-N” logo.
Robinson-Nugent

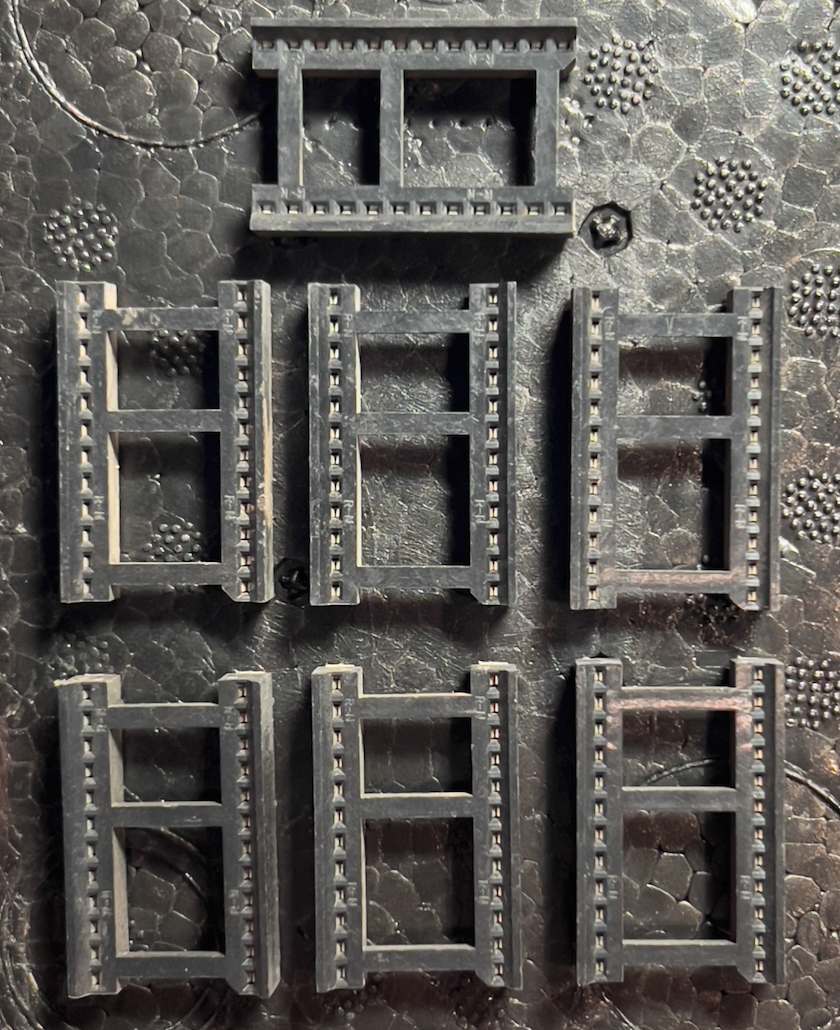

Parts for my Rev 0 replica. All plain “R-N” logos, tin inlay. NOS.
40-Pin IC Socket
Robinson-Nugent

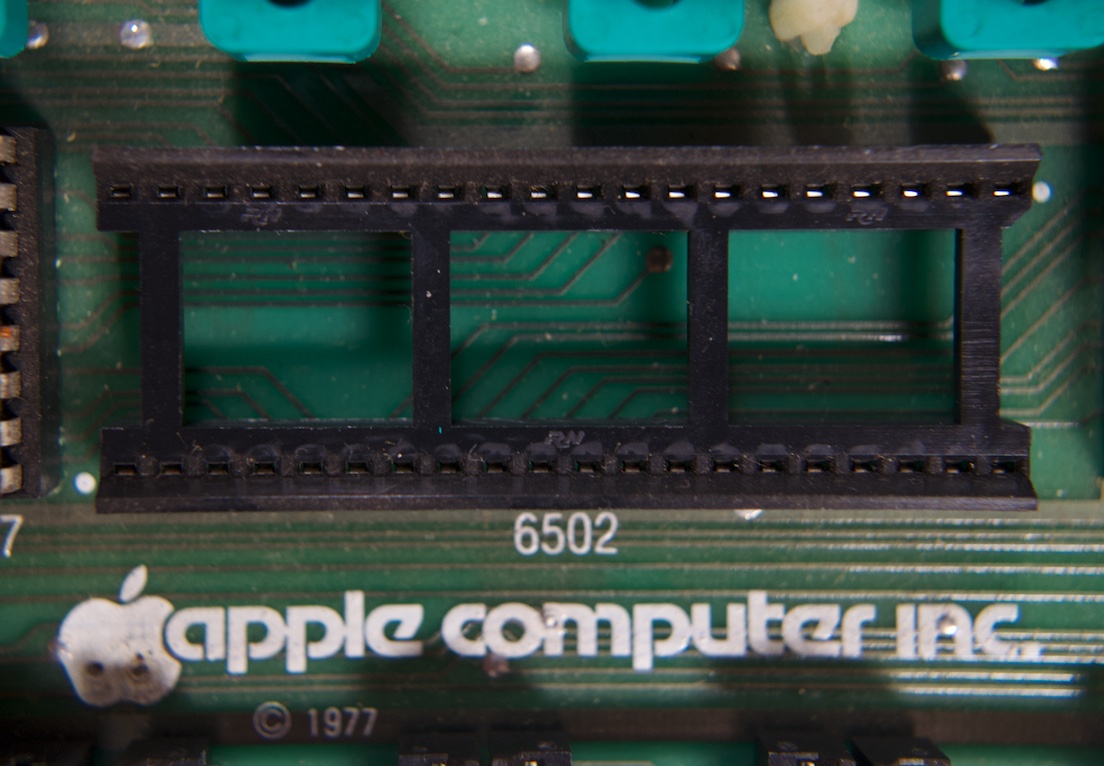

From a photo of Rev. 0 board 1070 (A2S1-0800), at location H6-H9.
Small stylized “RN” logo on sides, tin inlay.
Total # on board: 1.

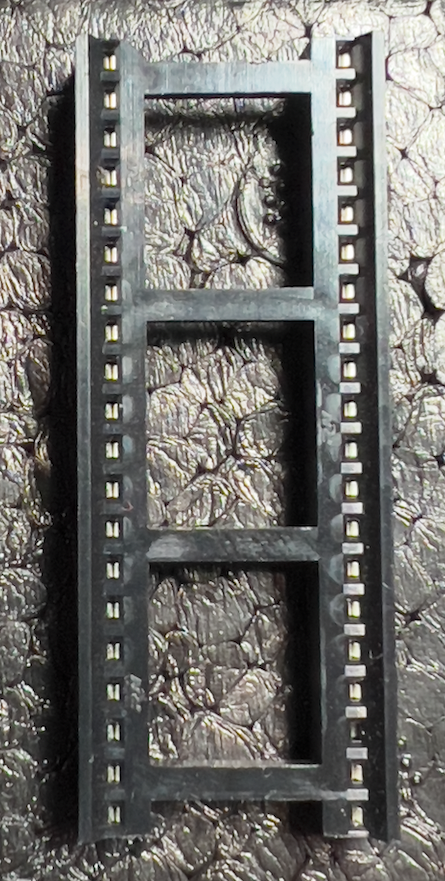

Robinson-Nugent
Part for my Rev 0 replica.
Small stylized “RN” logo on sides, tin inlay. NOS.
50-Pin Card Sockets
Winchester
From a photo of Rev. 0 board 1070 (A2S1-0800), at rows J and K.
“2HW25CO-111 7D”, 0.1 inch pin centers, light green with ears.
Total # on board: 8.

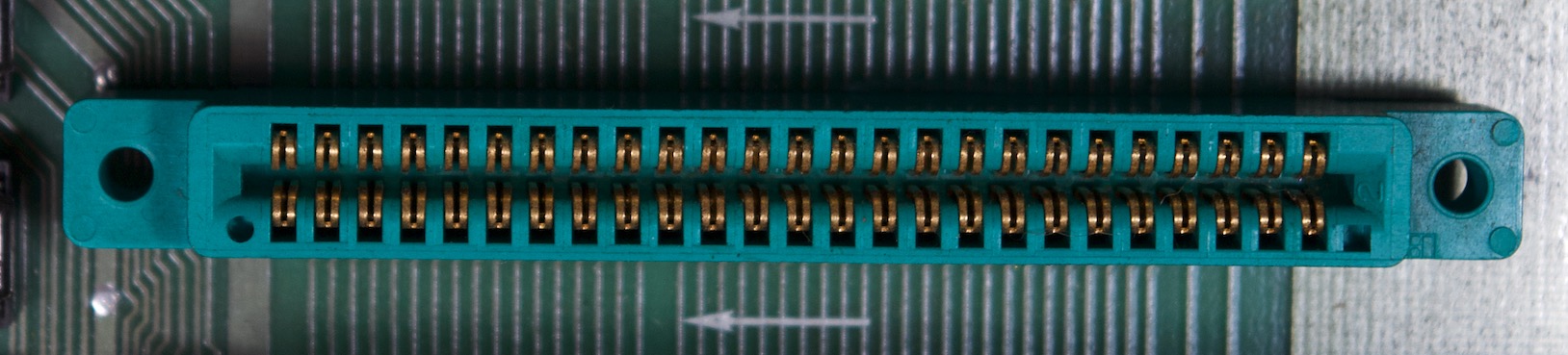

Winchester

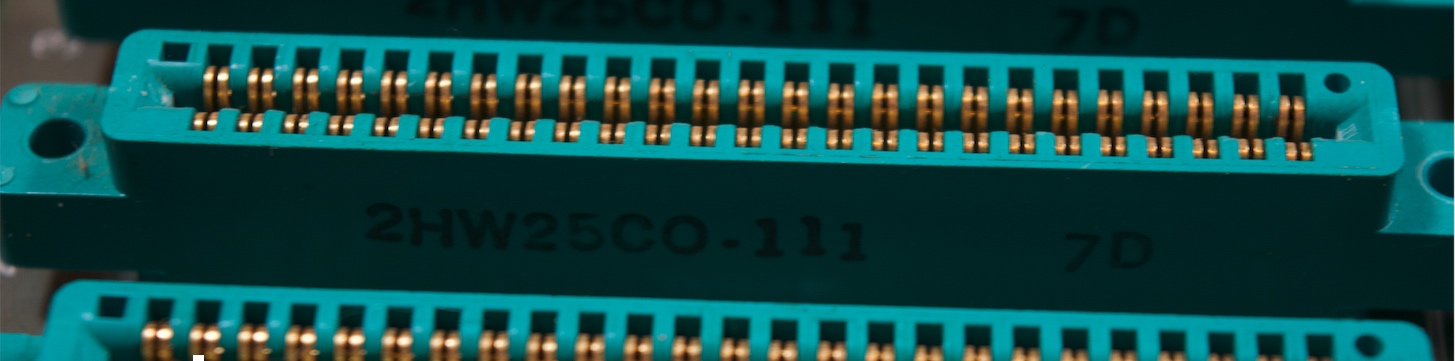

From another photo of board 1070, with a view directly from the top of the connector.
Viking

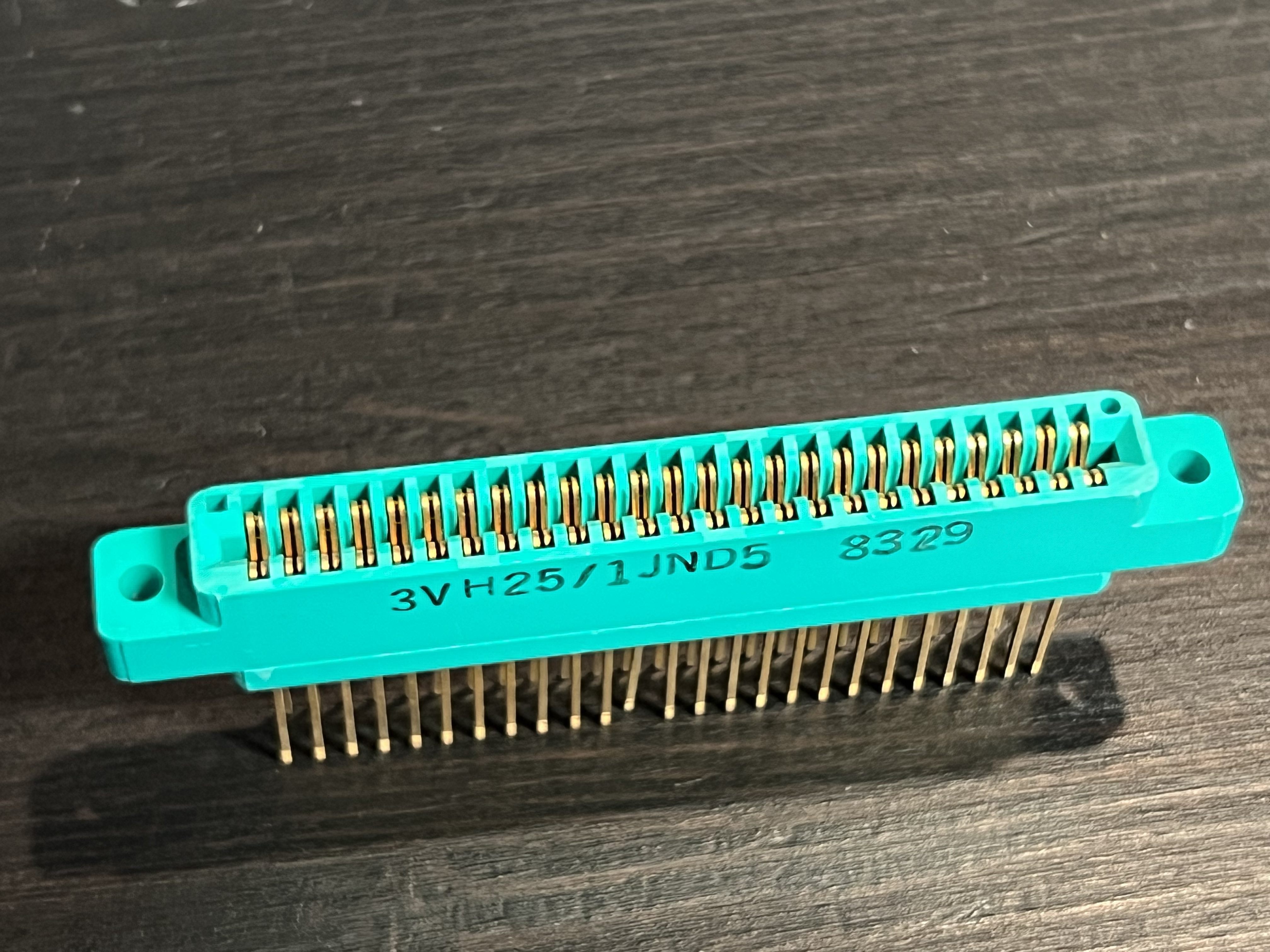

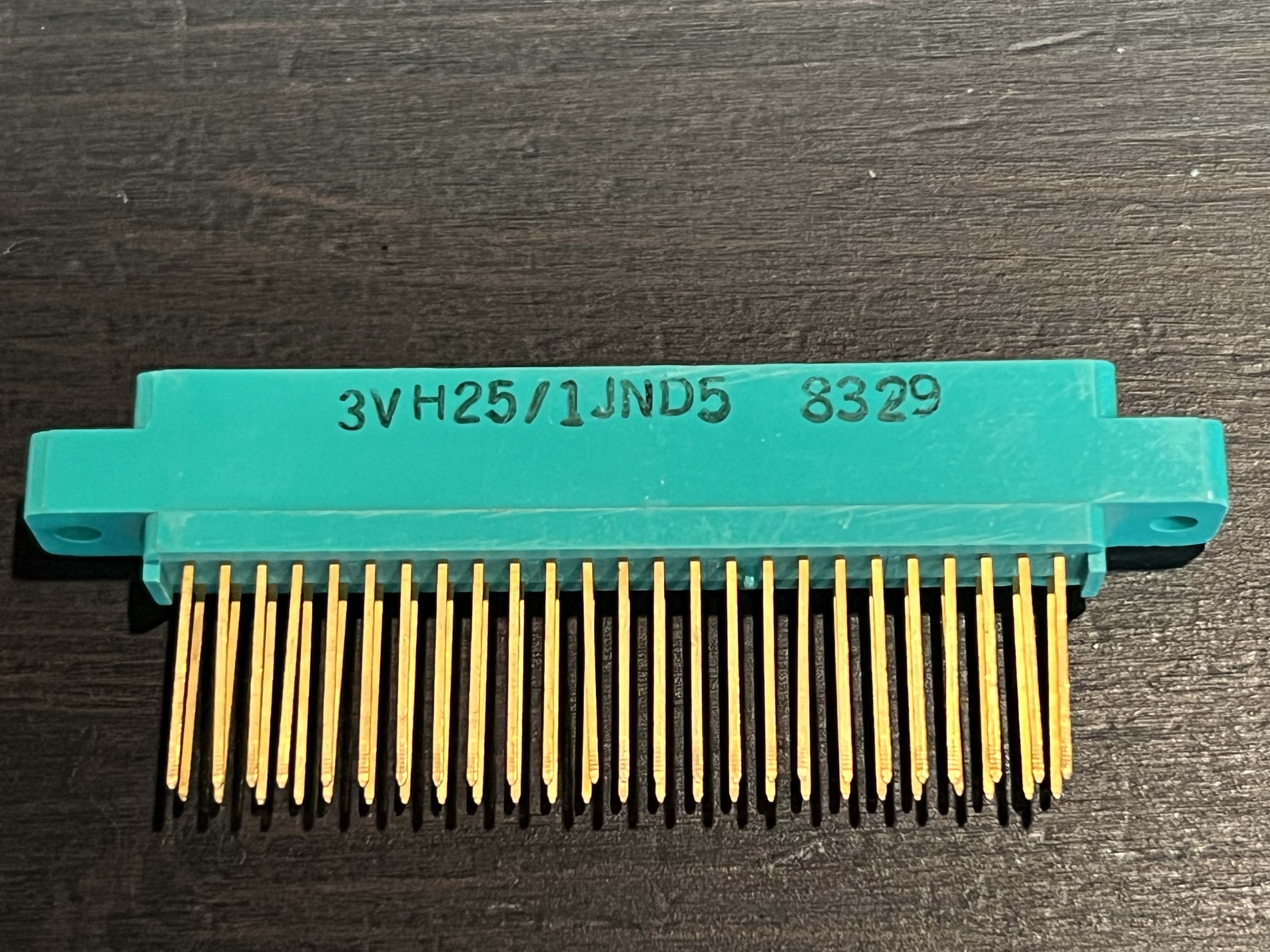

Part for my Rev 0 replica. “3VH25/1JND5", 8329 date code. 0.1 inch pin centers, 0.2 inch row separation. Have all 8.
Viking
Another view.
14-Pin Memory Select Blocks
SAE

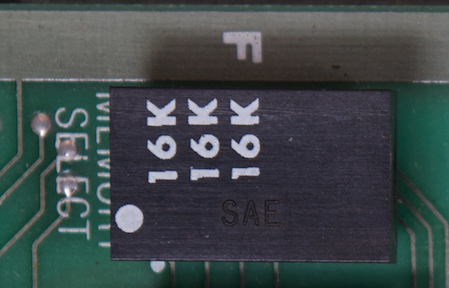

From a photo of Rev. 0 board 1070 (A2S1-0800), near location F1. There are two others on the left side of the board.
16K markings, “SAE” embossed.
Total # on board: 3.

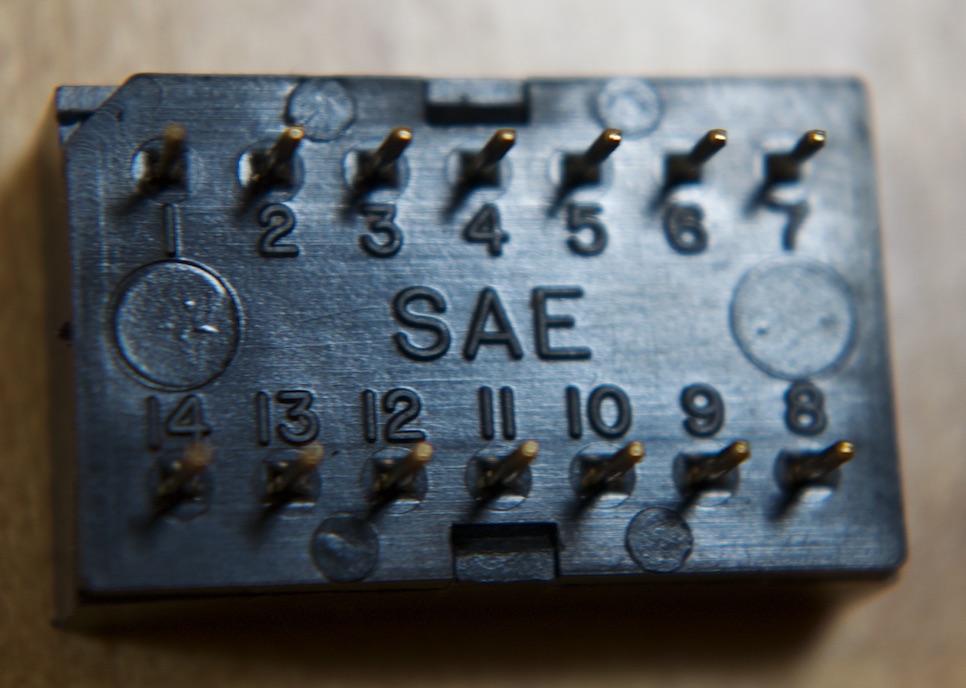

SAE
Another photo of the Rev. 0 board 1070 memory block, showing the back of the block.

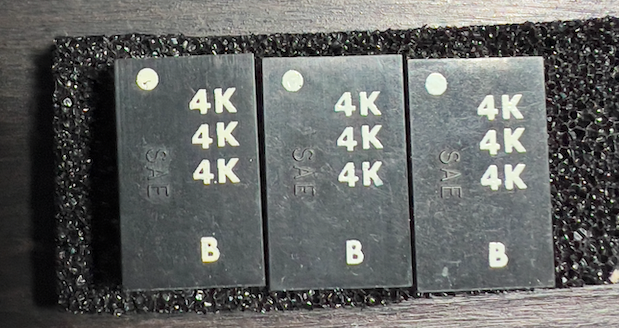

SAE
Parts for my Rev 0 replica. These are original 4K memory select blocks from a collection attributed to Robert Sander-Cederlof (presumably from his first Apple ][ system, from which I also have the ROMs and CPU).
SAE

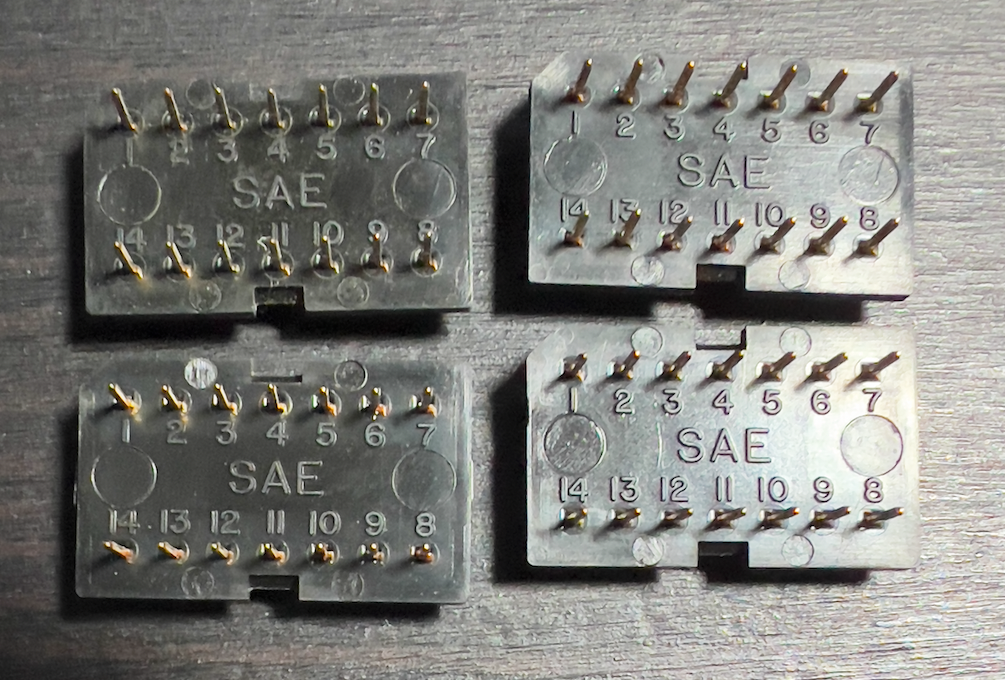

Parts for my Rev 0 replica. These are extra SAE 14-pin headers, 2 are used and 2 unused. Don’t have the SAE caps though.
