14.31818 MHz Crystal
Torotel?
From a photo of a real pre-NTI Apple-1.
7544 date code. HC-18/U or HC-25/U?
Total # on board: 1.
Maker?
From a photo of a real NTI Apple-1.
Total # on board: 1.
Maker?

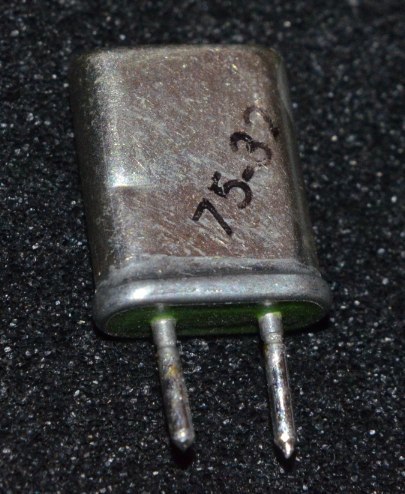

75-32 date code? HC-25/U (insertion leads), desoldered.

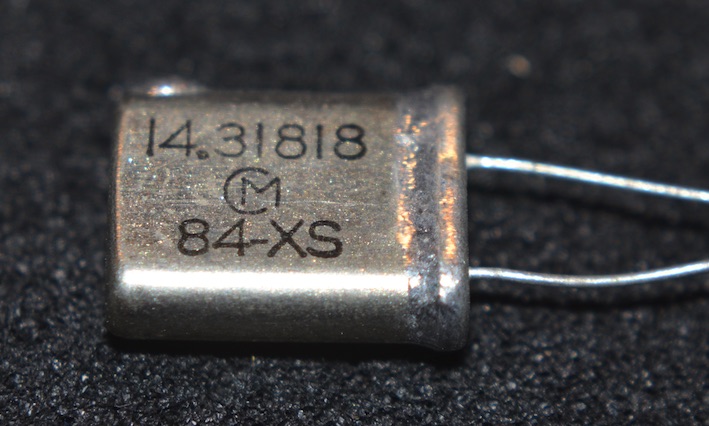

CM
84 (?) date code. HC-18/U (solder leads), unused.

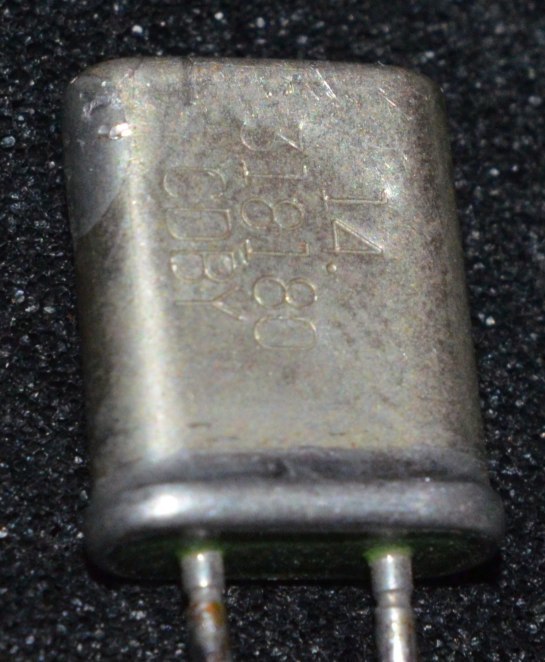

CDBY
HC-25/U (insertion leads).
Wakefield Heat Sink
680-1.25A

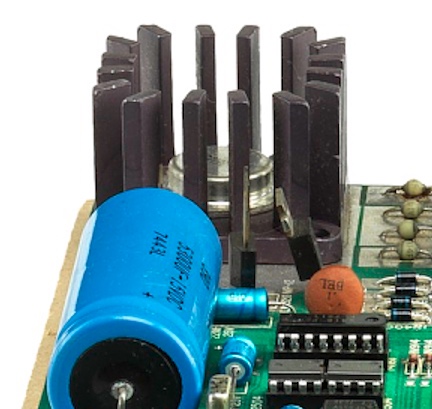

From a photo of a real pre-NTI Apple-1.
Total # on board: 1.
680-1.25A

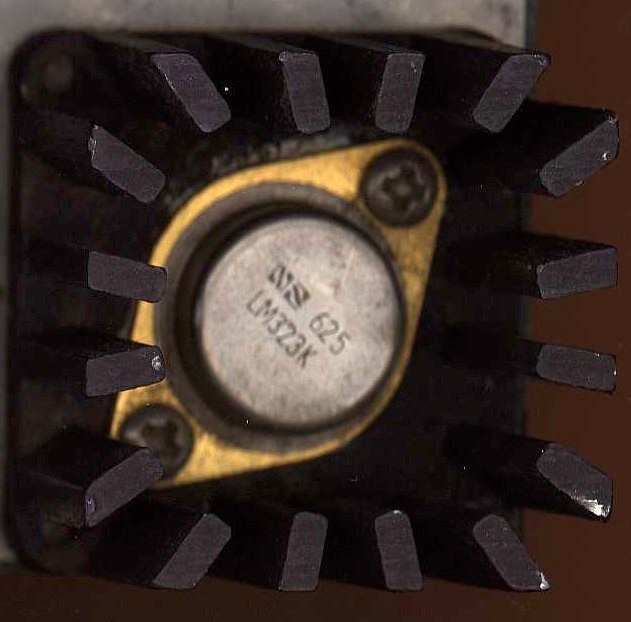

From a photo of a real NTI Apple-1.
Total # on board: 1.

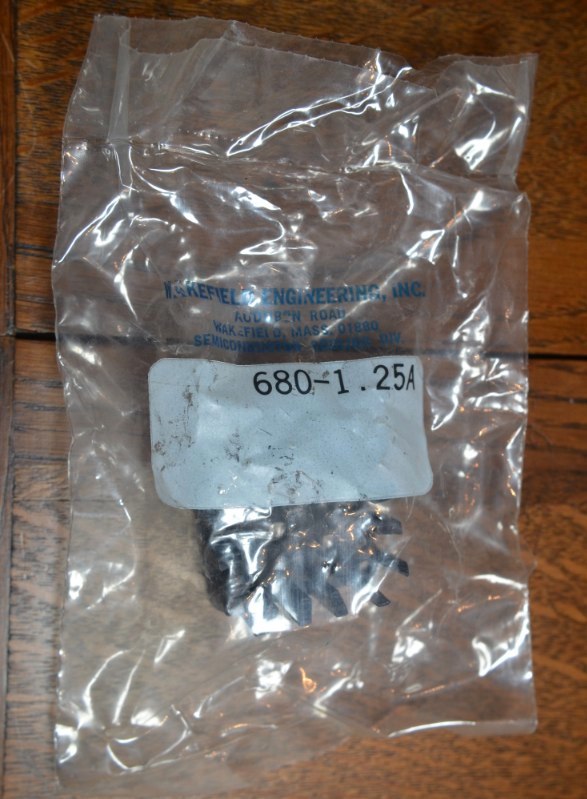

680-1.25A
Still in package. “Wakefield Engineering, Inc.” label.

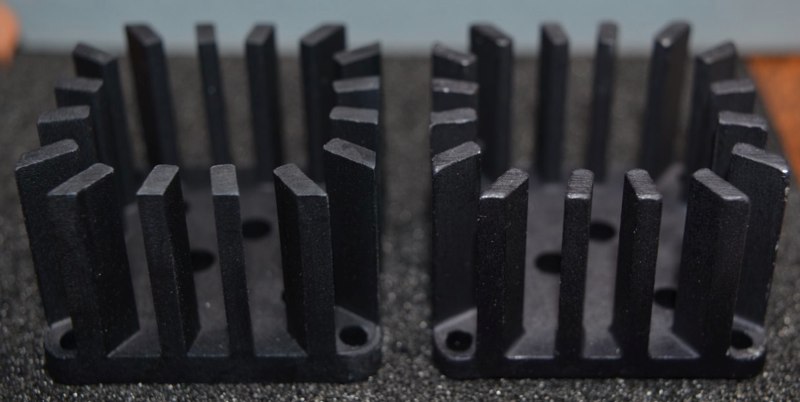

New vs Old
New on the left has sharper edges.

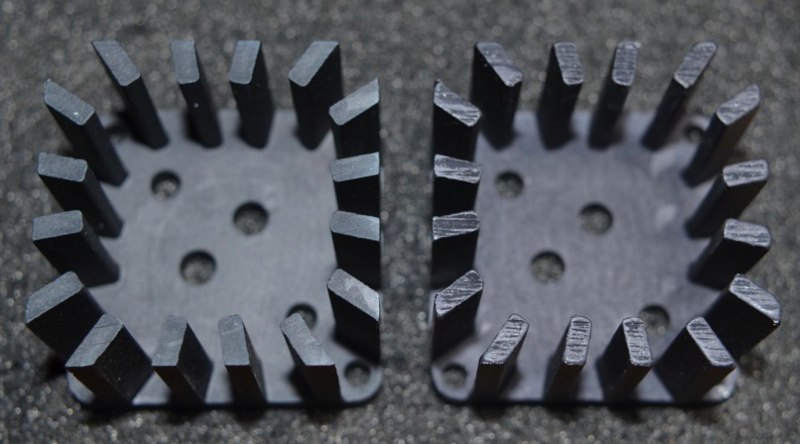

New vs Old
Visible marks on the top surfaces of the old one on the right.

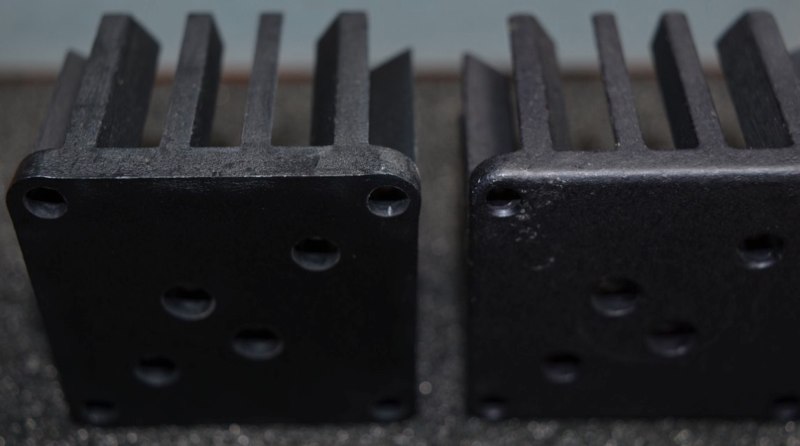

New vs Old
The old one on the right has more rounded edges.

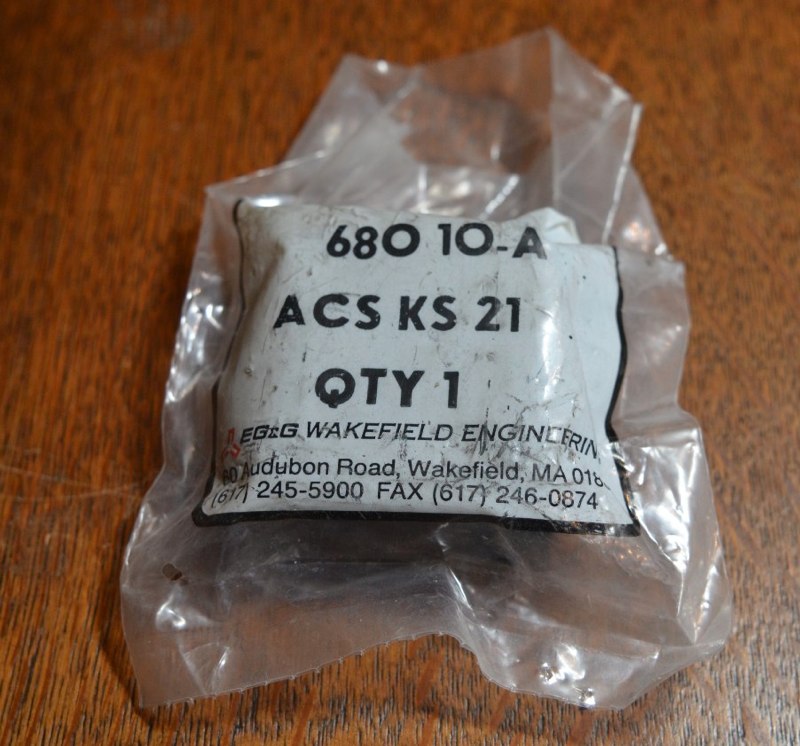

680 10-A
Still in package. “EG&G Wakefield Engineering” label.

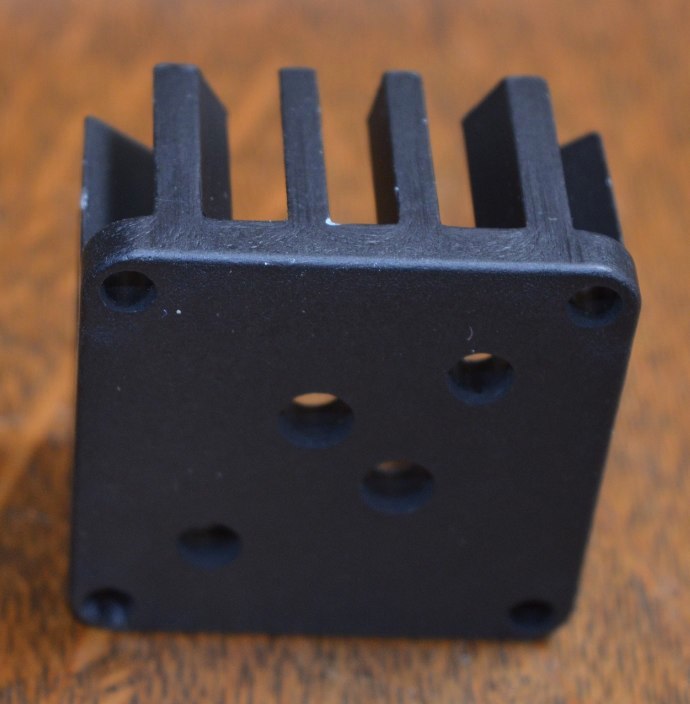

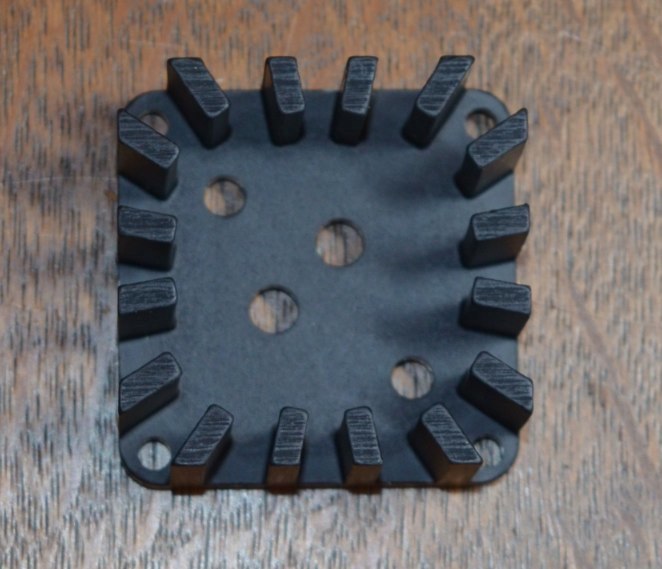

680 10-A
Same general appearance as 1.25 just shorter.
680 10-A

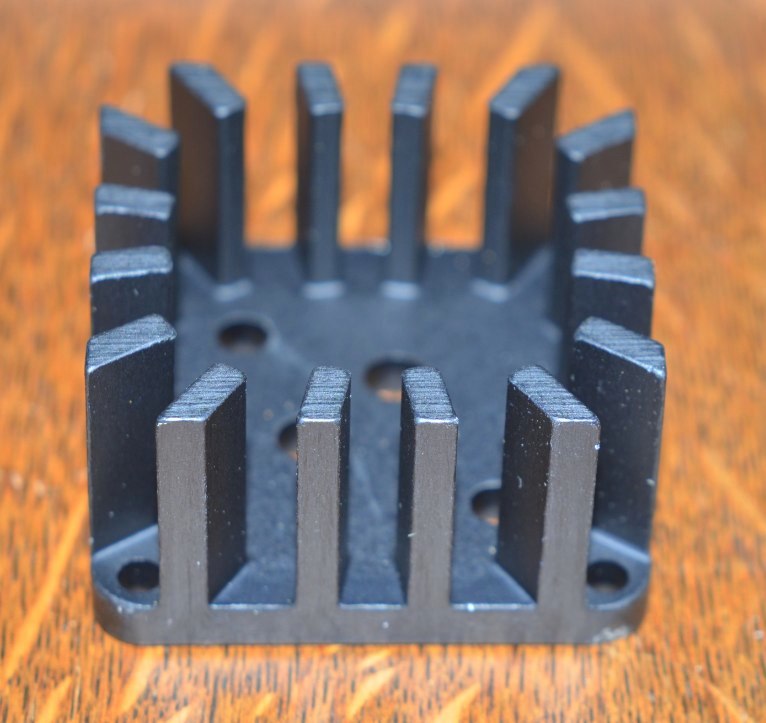

Side view showing smaller height.
680 10-A
Rounded edges similar to 1.25.
6-Pin Power Connector

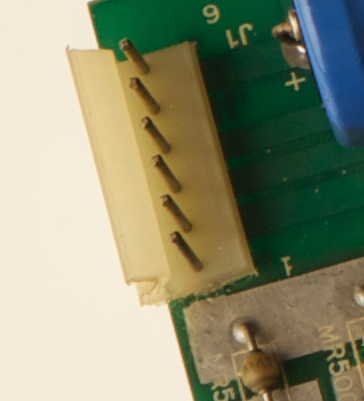

TBD (Molex?)
From a photo of a real pre-NTI Apple-1.
Total # on board: 1.
TBD (Molex?)

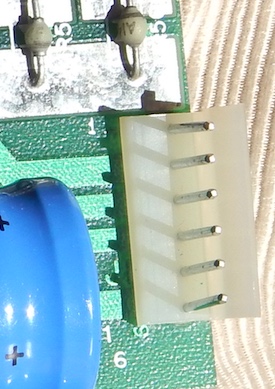

From a photo of a real NTI Apple-1.
Total # on board: 1.

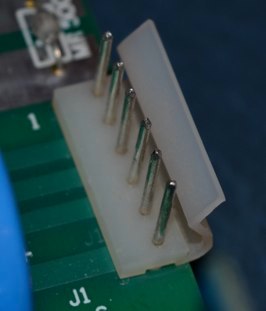

TBD (Molex?)
On my Mimeo replica.
TBD (Molex?)

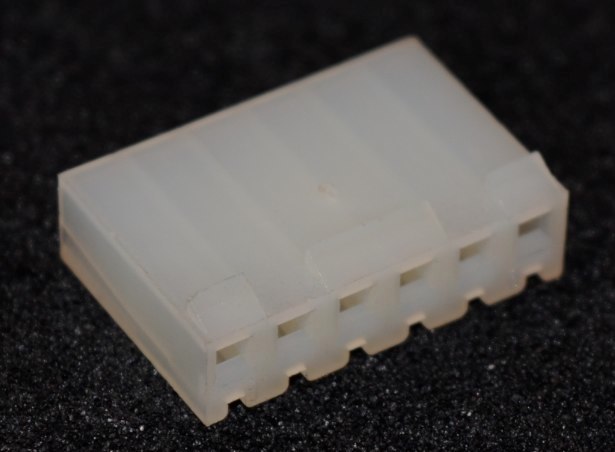

Compatible female connector shell.
TBD (Molex?)
Compatible female connector pins.

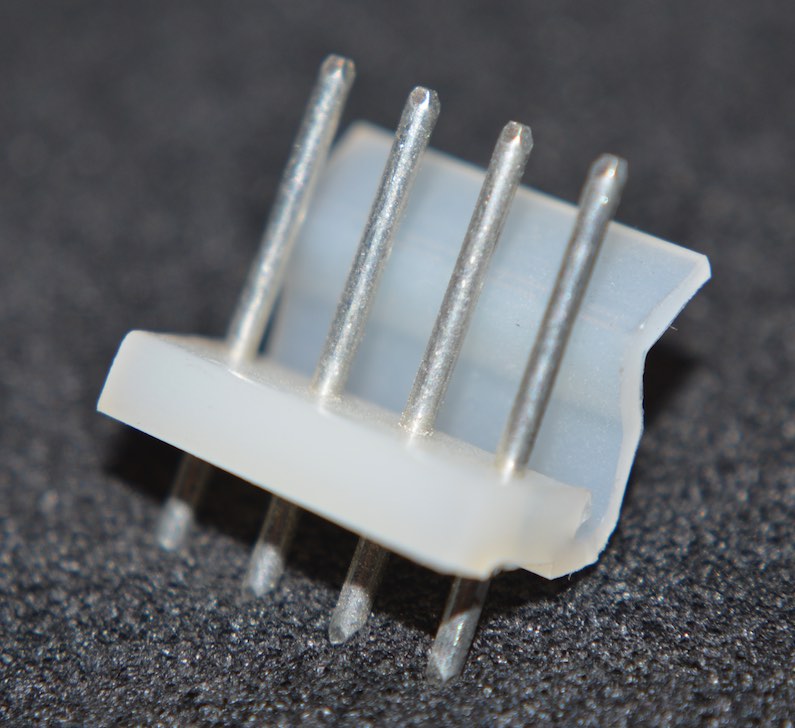

4-Pin Video Connector
TBD (Molex?)
From a photo of a real pre-NTI Apple-1.
Total # on board: 1.
TBD (Molex?)

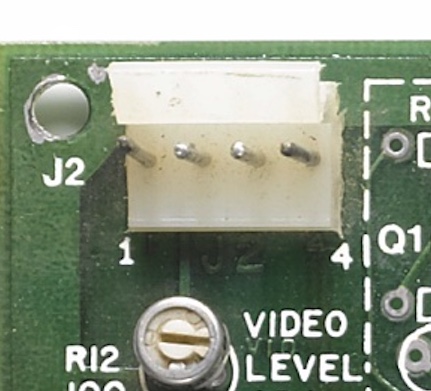

From a photo of a real NTI Apple-1. The edges appear roughly cut.
Total # on board: 1.
TBD (Molex?)
On my replicas.

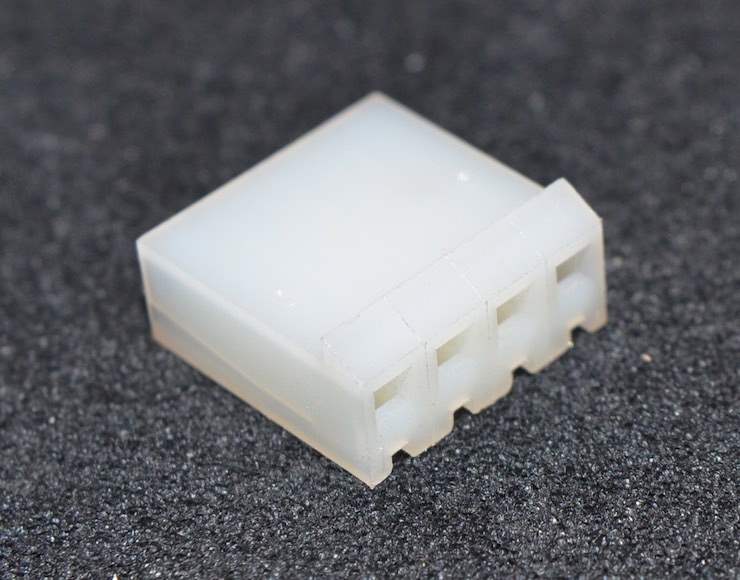

TBD (Molex?)
Compatible female connector shell.
TBD (Molex?)
Compatible female connector pins.
ACI Audio Jacks
TBD Maker

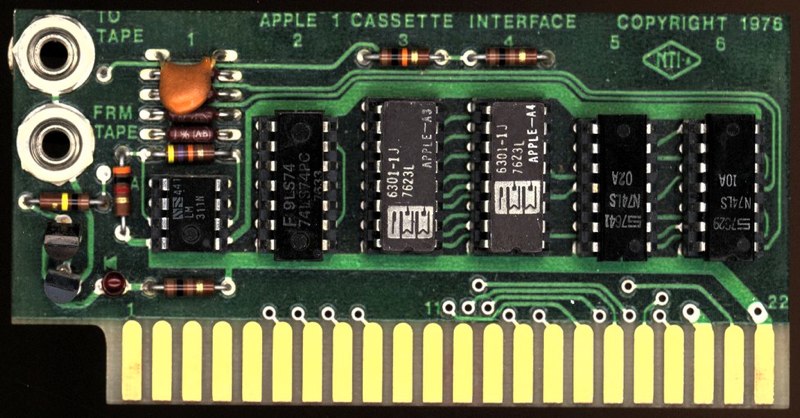

A photo of a real NTI Apple-1 ACI card. Audio jacks are in upper left corner.

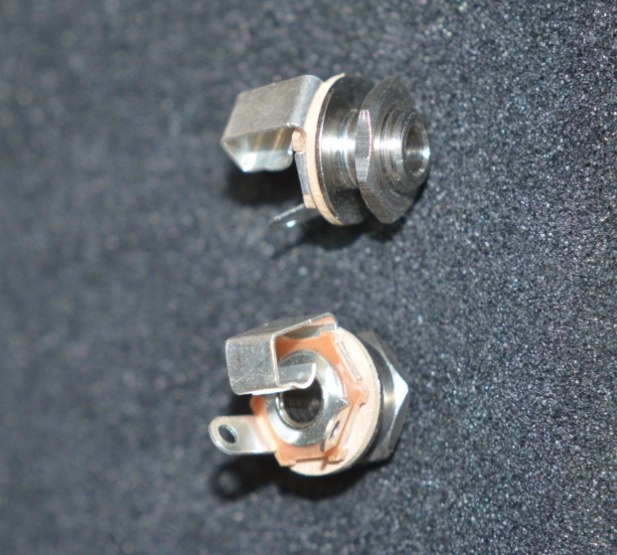

TBD Maker
Similar to ACI card jacks.

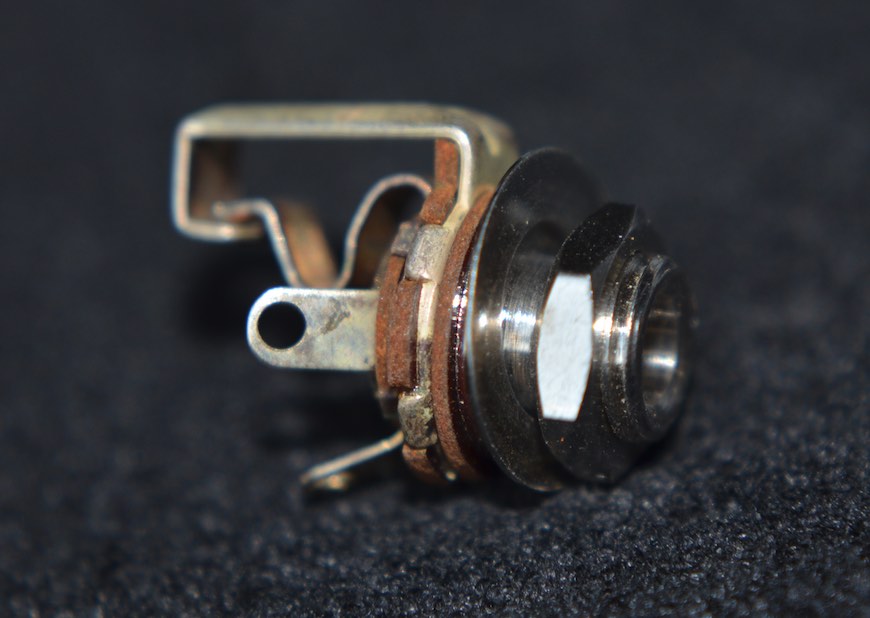

TBD Maker
Slightly different configuration.
Transformers

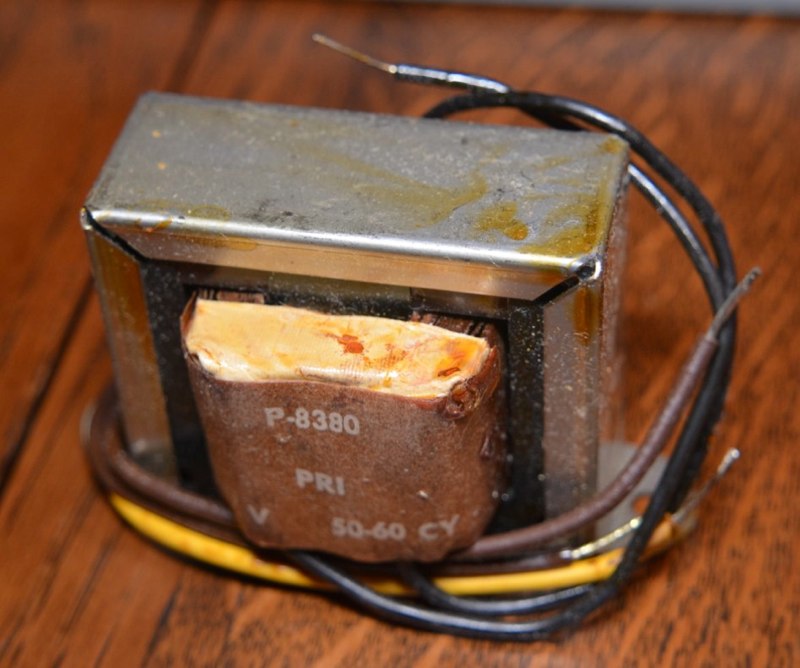

Stancor
P-8380, 10VCT 3A.
7927 date code.

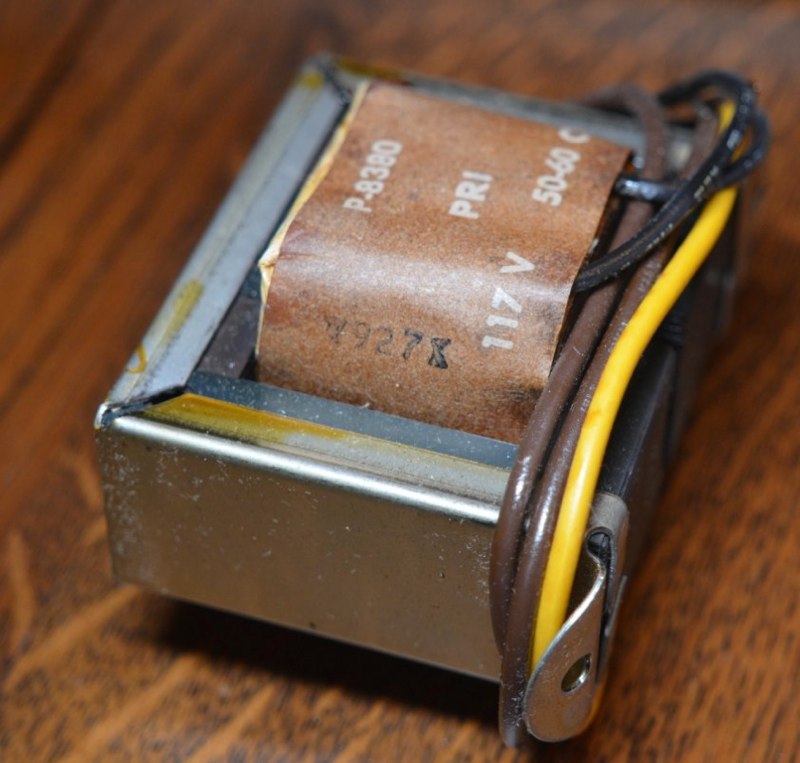

Stancor
P-8380, 7927 date code.

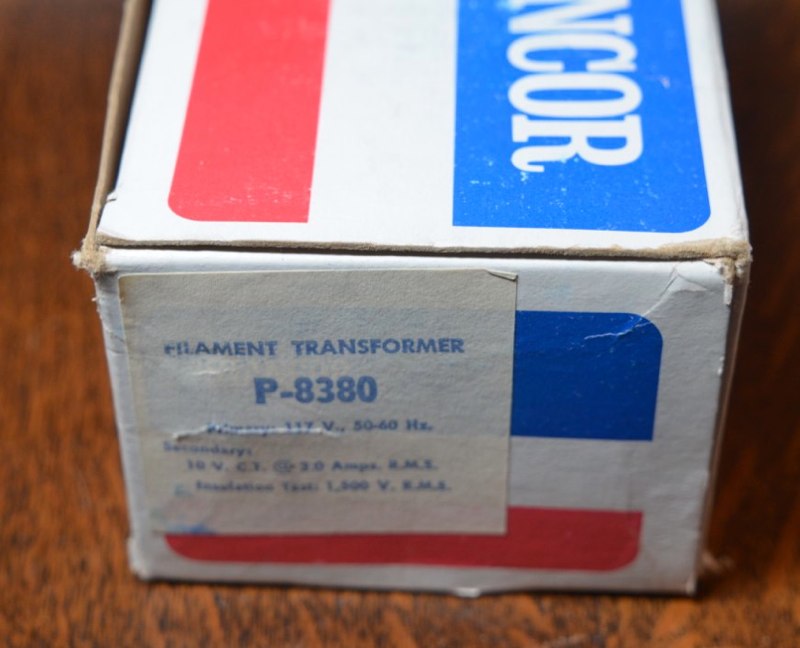

Stancor
P-8380 package.

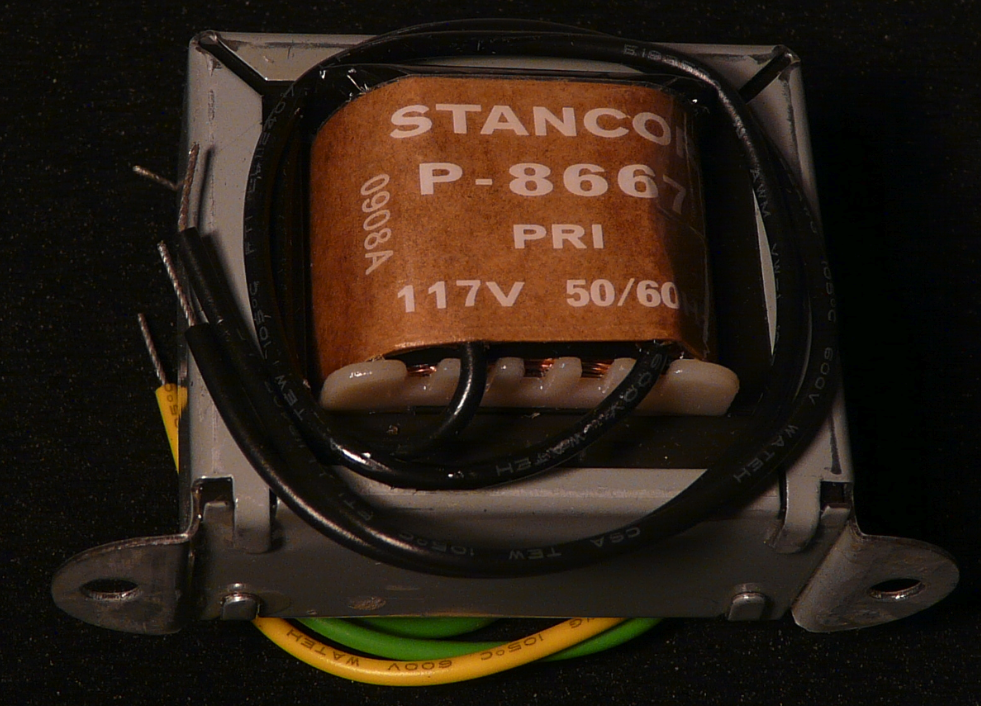

Stancor
P-8667, 28VCT 1A. Newer, not vintage.
Monitor

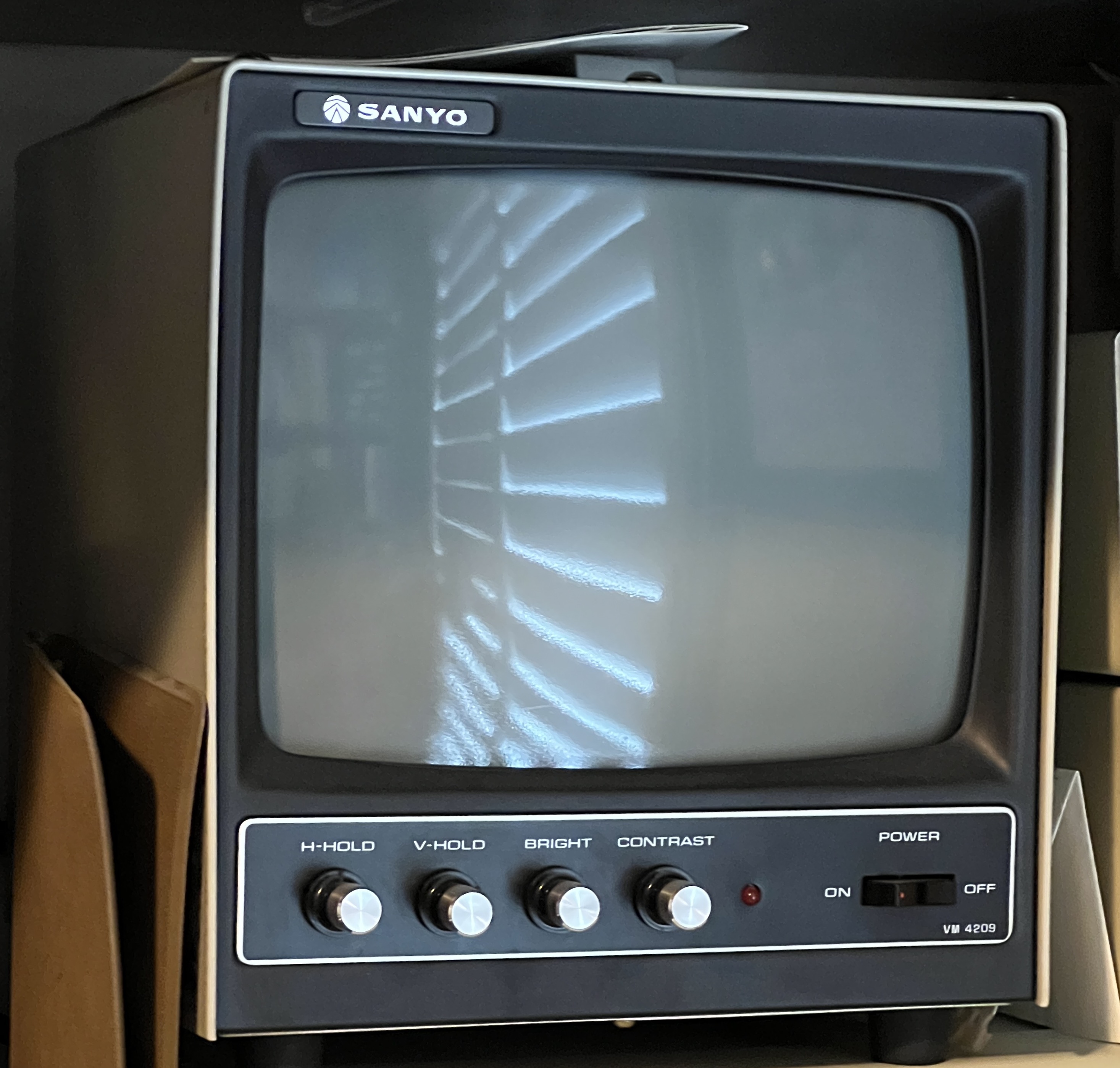

Sanyo
VM 4209, working condition.

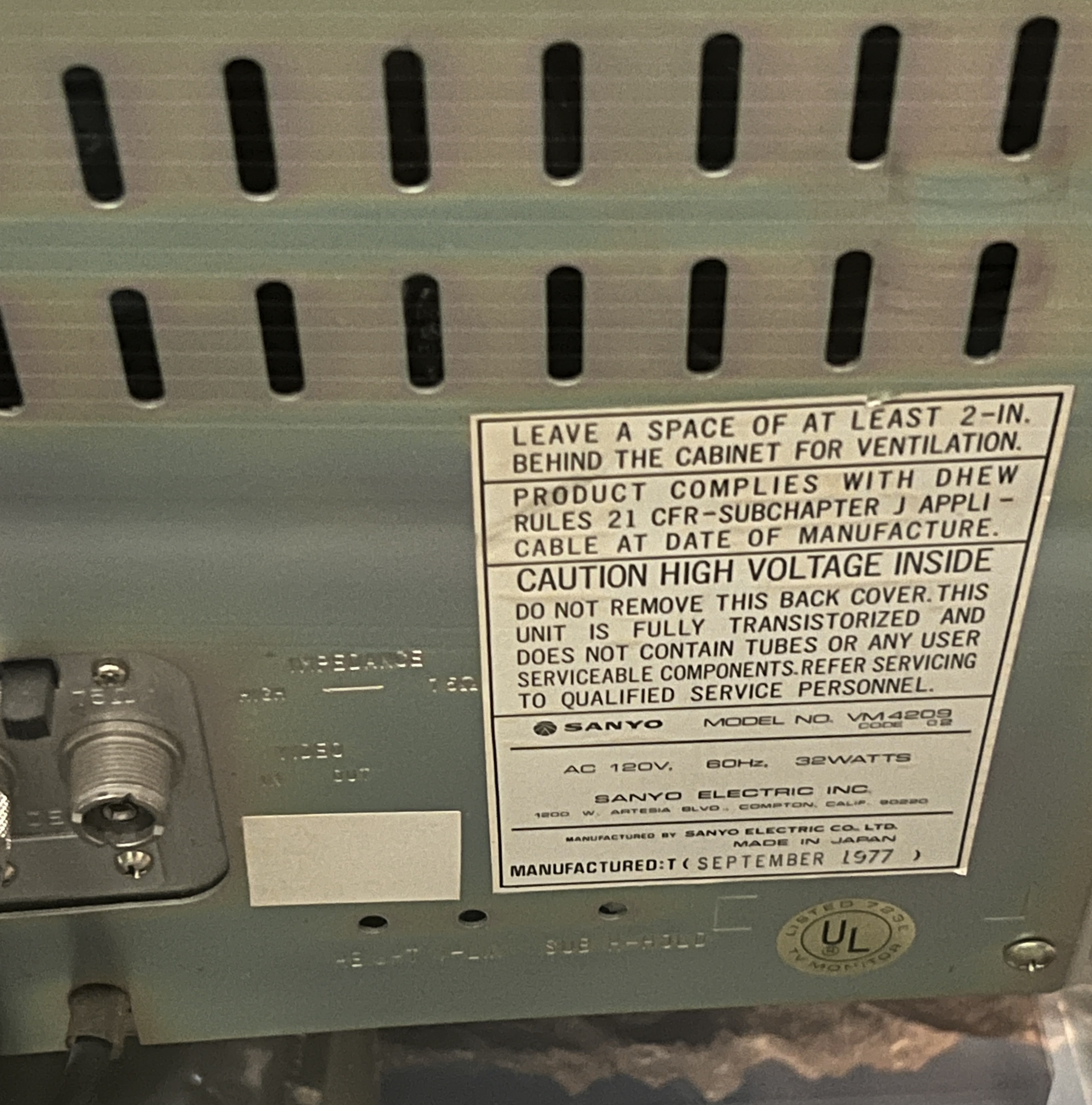

Sanyo
VM 4209, September 1977 date code.

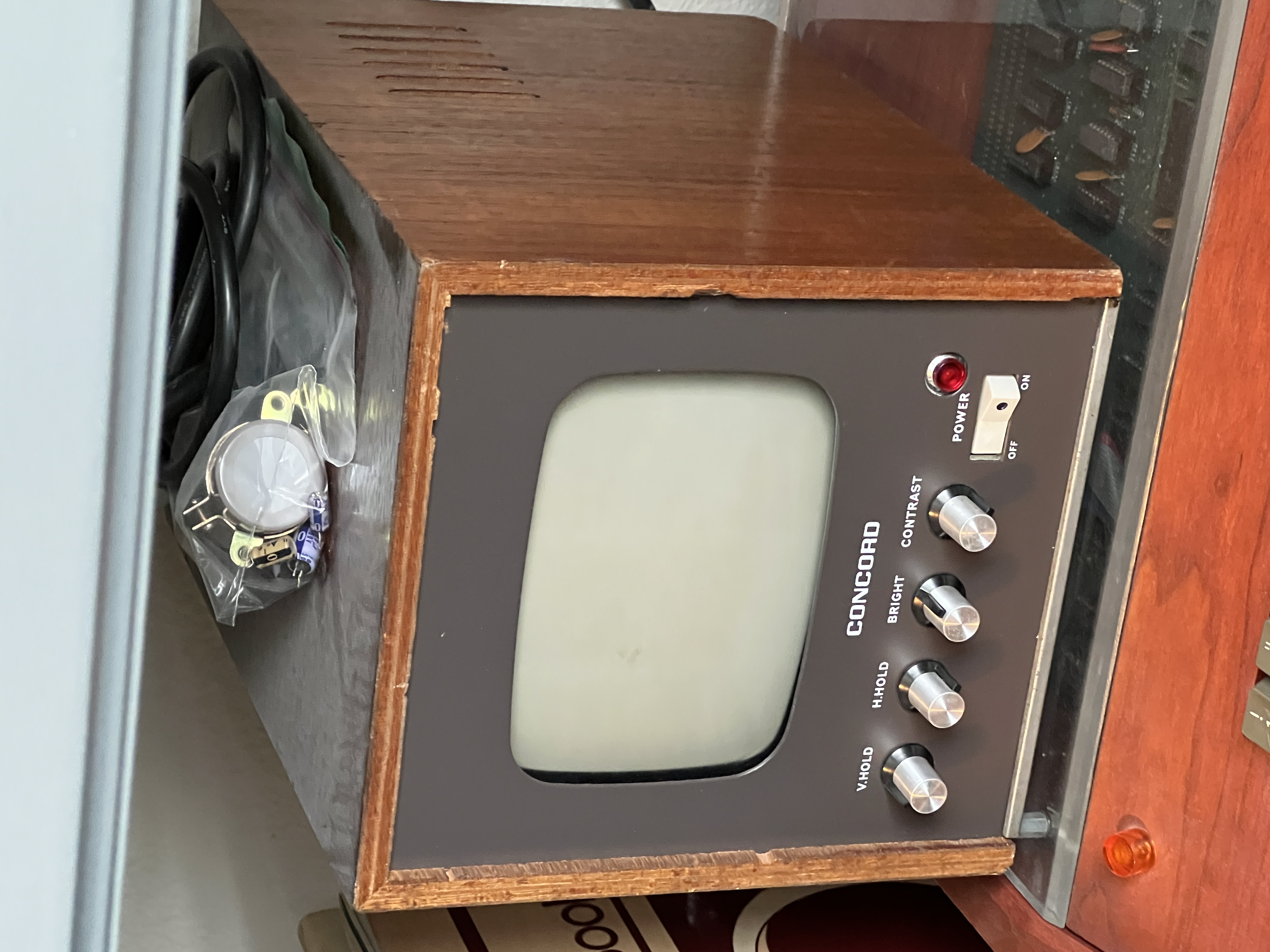

Concord
Small video terminal in wood enclosure, probably from early to mid 1970s. Restored to working condition, tested OK with my Mimeo replica.

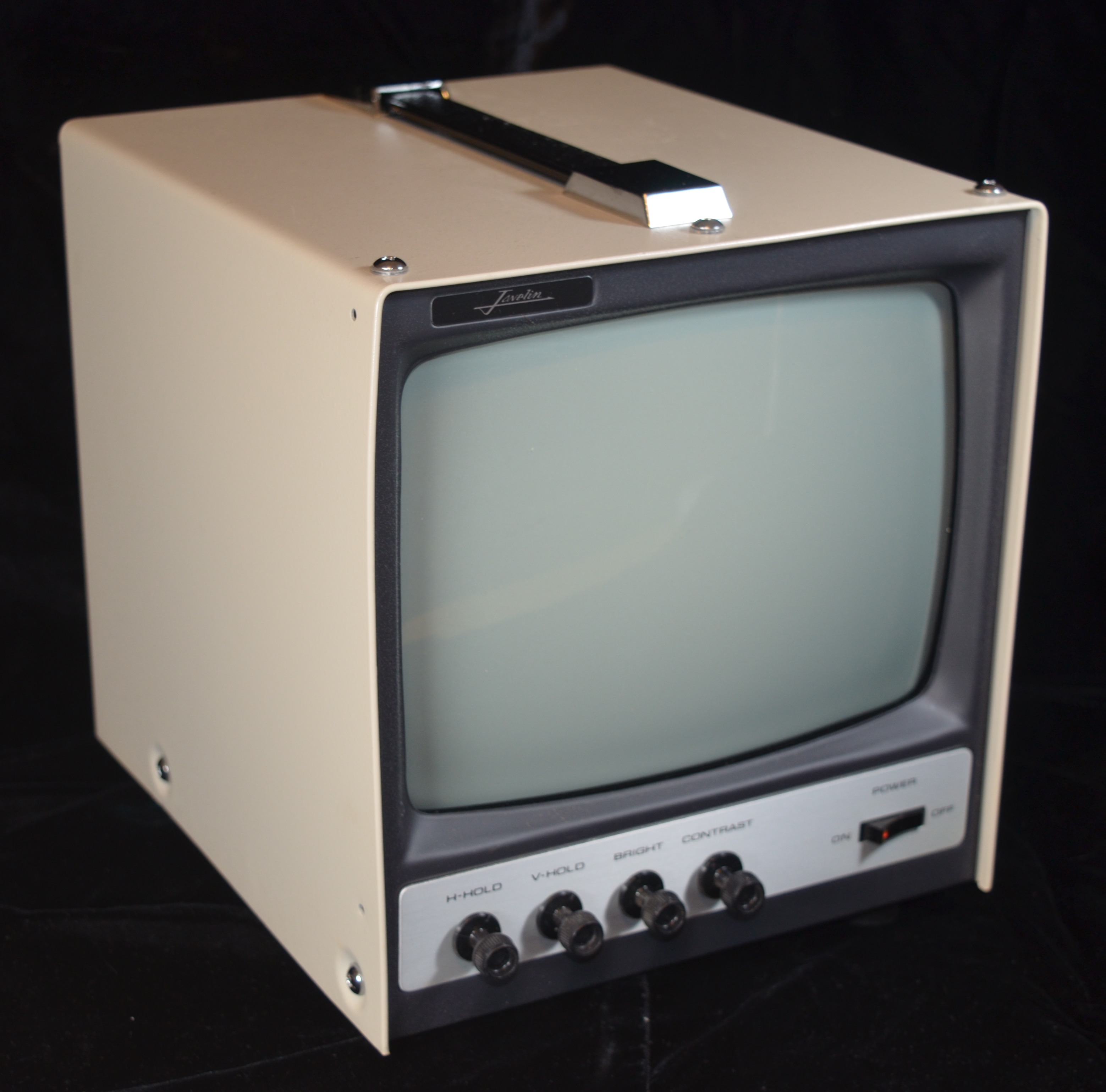

Javelin
VM 9A. Similar in form and size to the Sanyo VM 4209.

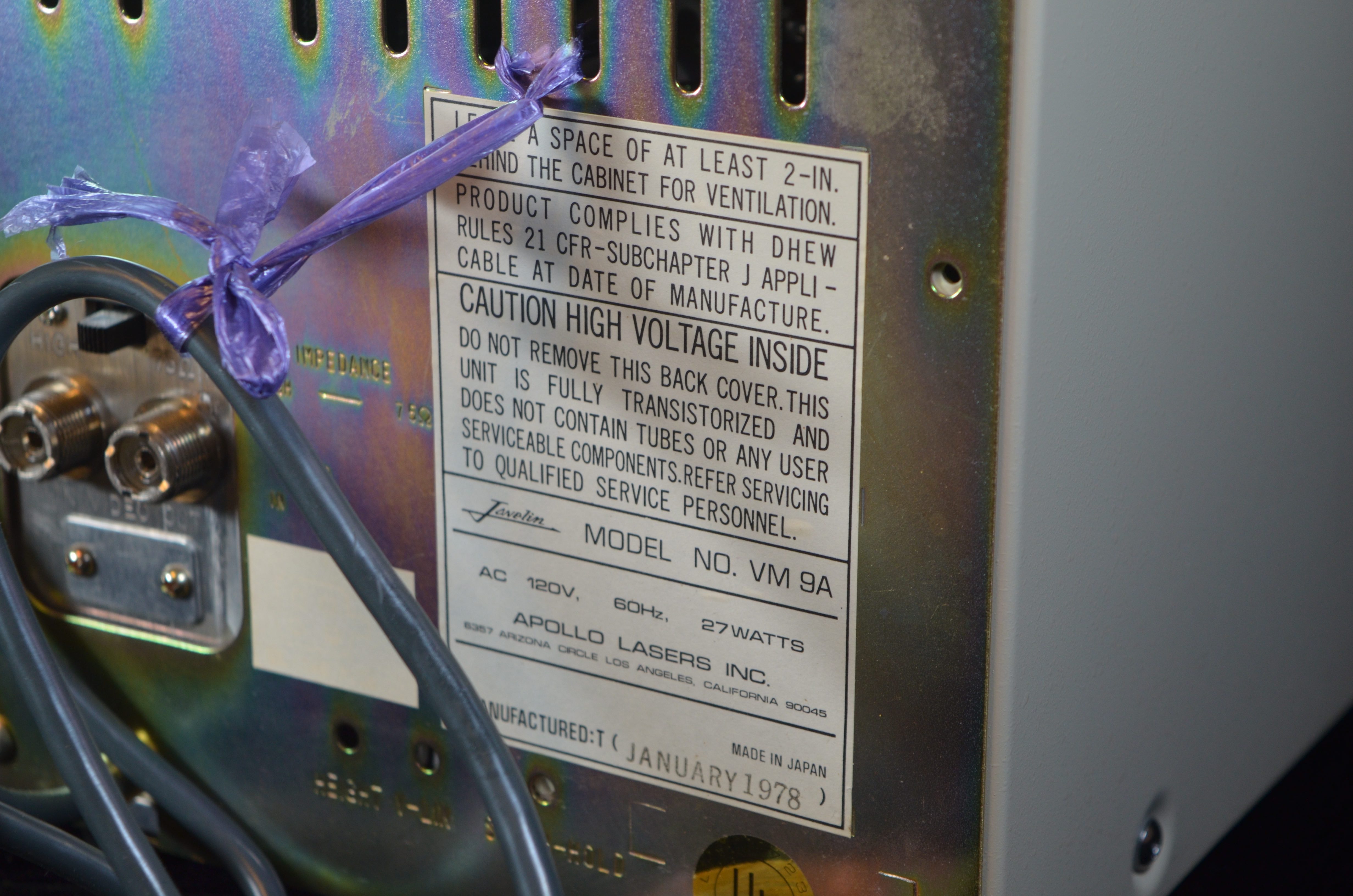

Javelin
VM 9A, January 1978 date code.

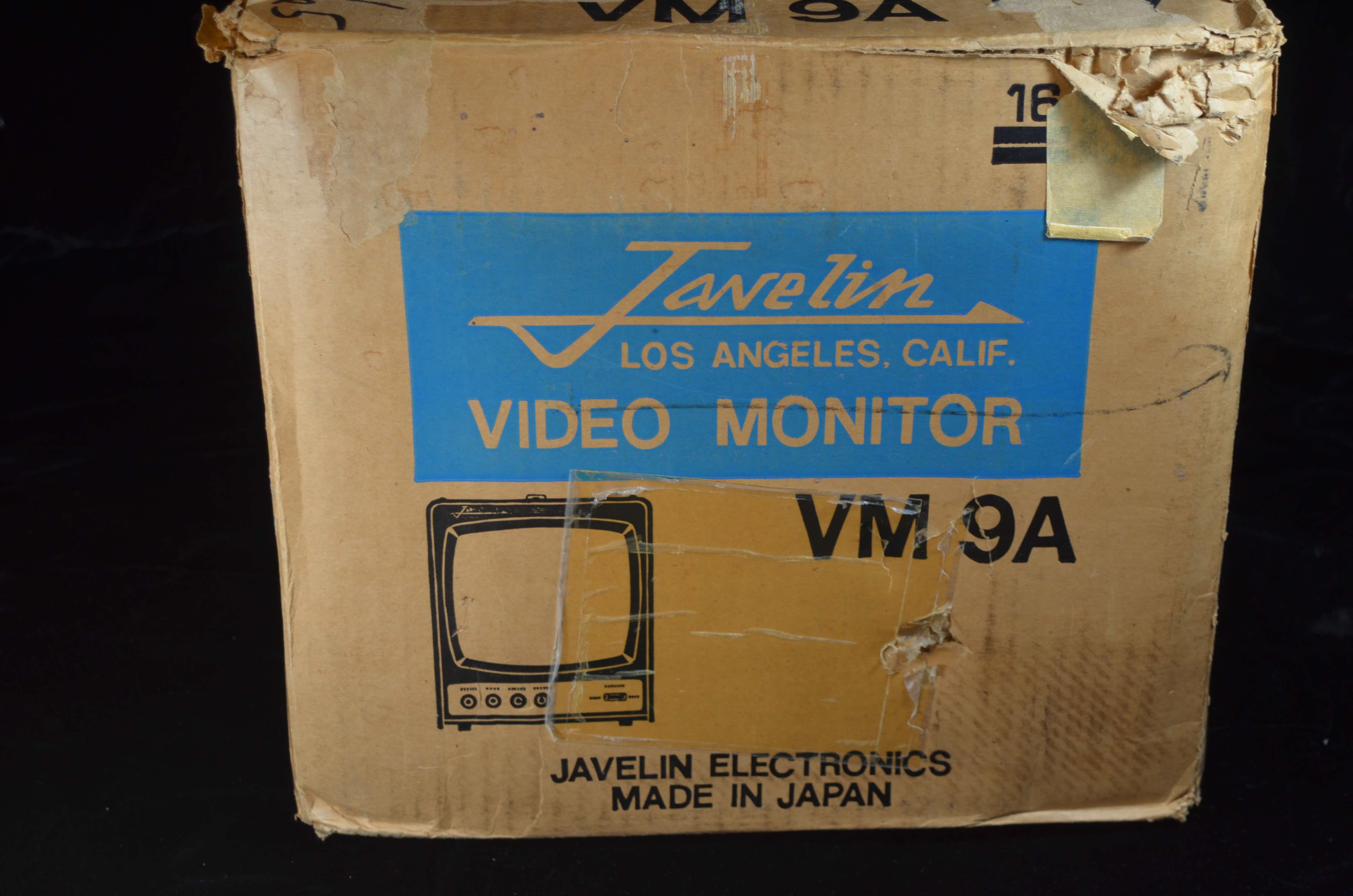

Javelin
VM 9A box.
