8T97B Tri-State Hex Buffer
Signetics
From a picture of a real pre-NTI Apple 1.
Vertical labeling, no extra “S” below part #.
Total on board: 2.
Signetics
From a picture of a real NTI Apple 1.
Vertical labeling, with and without extra “S".
Total on board: 2.

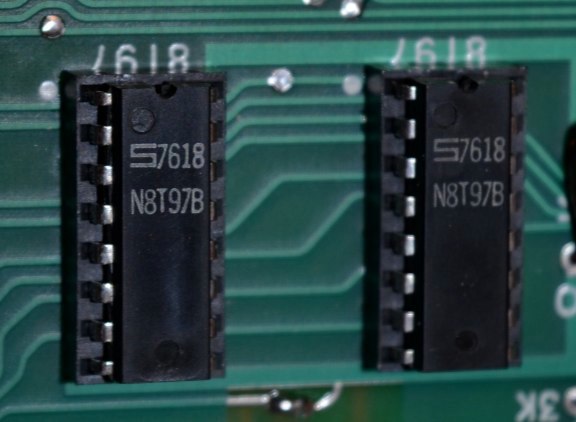

Signetics
Exact date code match of the part on a real pre-NTI Apple-1. On my Mimeo replica.
Signetics
Vertical labeling, no extra “S”, ’75 and ’76 date codes. Desoldered as well as unused.

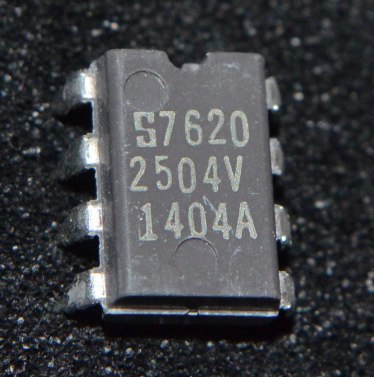

2504V/1404A 1K-Bit Dynamic Shift Register
Signetics
From a picture of a real pre-NTI Apple 1.
Vertical labeling, gray plastic, block “S” logo.
7620 date code.
Total on board: 7.
Signetics
From a picture of a real NTI Apple 1.
Vertical labeling, block “S” logo.
Total on board: 7.
Signetics
Vertical labeling, gray plastic, block “S” logo.
Exact date code and labeling match of the part on a real pre-NTI Apple-1. Unused.
Signetics
Exact date code match of the part on a real NTI Apple-1. Red paint above date code removed.
Signetics
Vertical labeling, gray plastic, 7622 date code.
Signetics

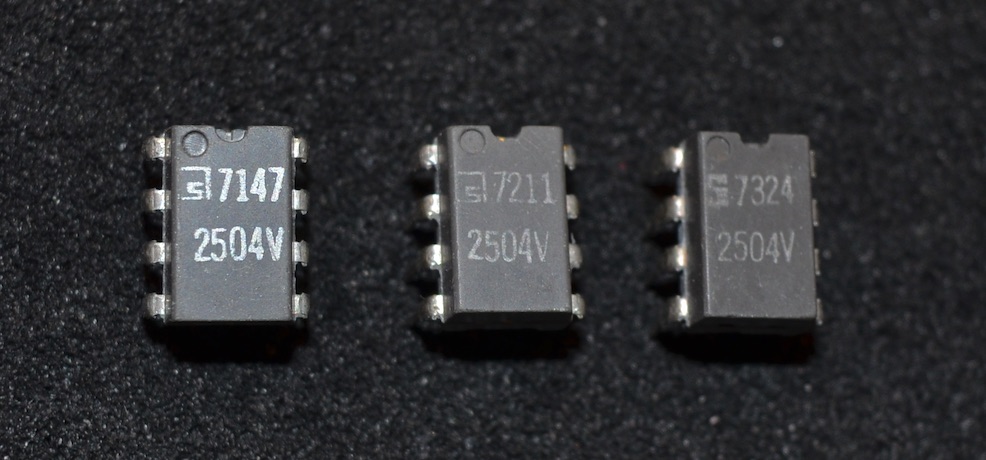

Vertical labeling, gray plastic, ’71, ’72, ’73 date codes.
2513N/CM2140 Character Generator/ASCII Font
Signetics
From a picture of a real pre-NTI Apple 1.
Vertical labeling.
Total on board: 1.

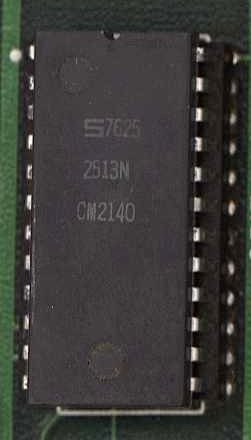

Signetics
From a picture of a real NTI Apple 1.
Vertical labeling.
Total on board: 1.
Signetics

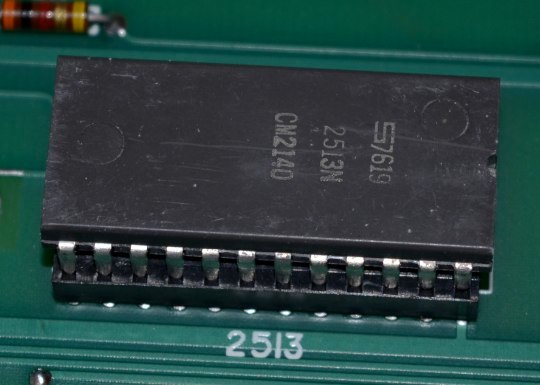

7619 date code. On my Mimeo replica.
Signetics
Exact date code match of the part on a real NTI Apple-1.

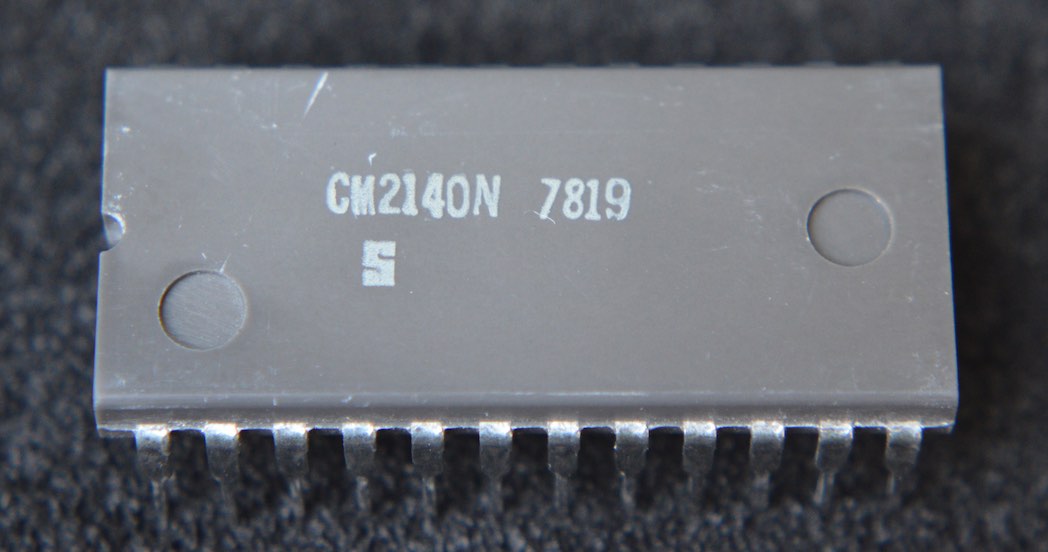

Signetics
Horizontal labeling. “2513N” not shown, only "CM2140N".
7819 date code.
2519B Hex 40-Bit Static Shift Register
Signetics

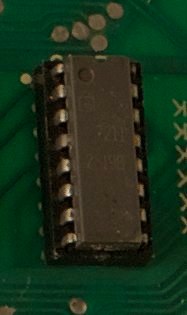

From a photo of a real pre-NTI Apple-1.
Vertical spread out labeling, gray plastic, tiny “S” logo. ’72 date code.
Total # on board: 1.
Signetics

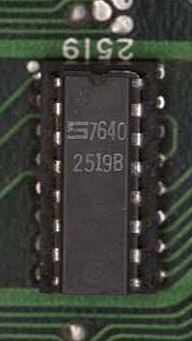

From a photo of a real NTI Apple-1.
Vertical normal spaced labeling, gray plastic, stretched “S” logo.
Total # on board: 1.
Signetics
From another photo of a real NTI Apple-1.
Vertical normal spaced labeling, appears to be darker plastic(?), stretched “S” logo.
Signetics

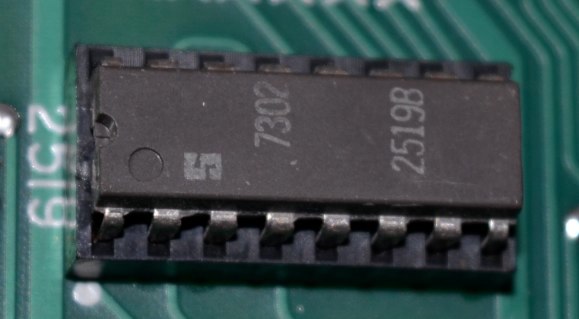

7302 date code, vertical spread out labeling, gray plastic, block “S” logo. On my Mimeo replica.
Signetics

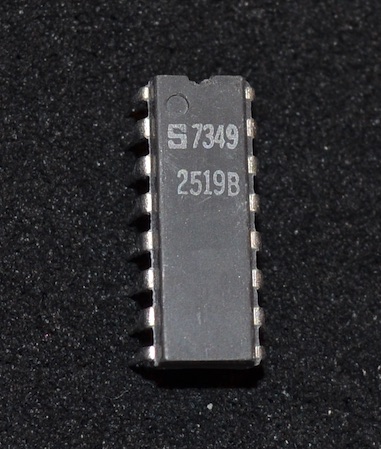

7349 date code, vertical normal spaced labeling, gray plastic, block “S” logo.

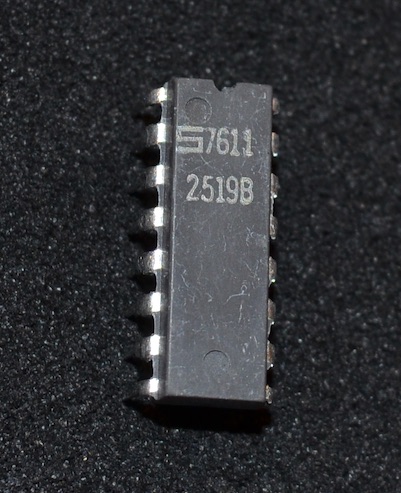

Signetics
7611 date code, vertical normal spaced labeling, gray plastic, stretched “S” logo.
6301-1J 256x4 PROMs

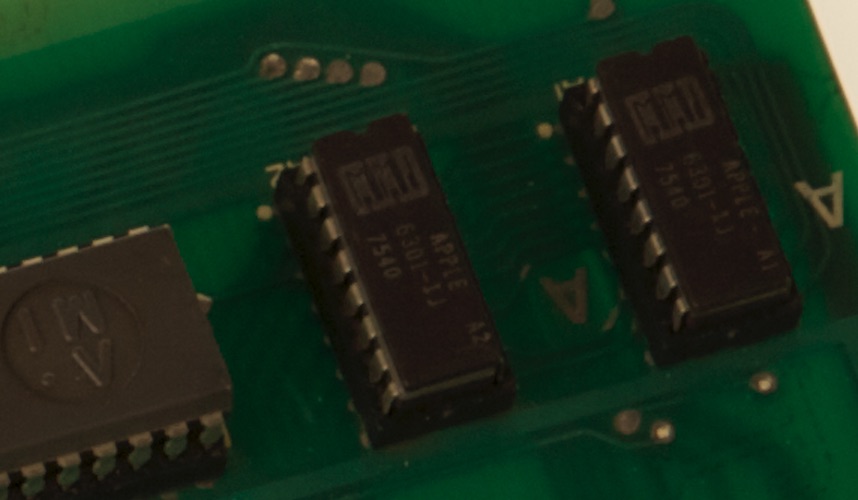

MMI

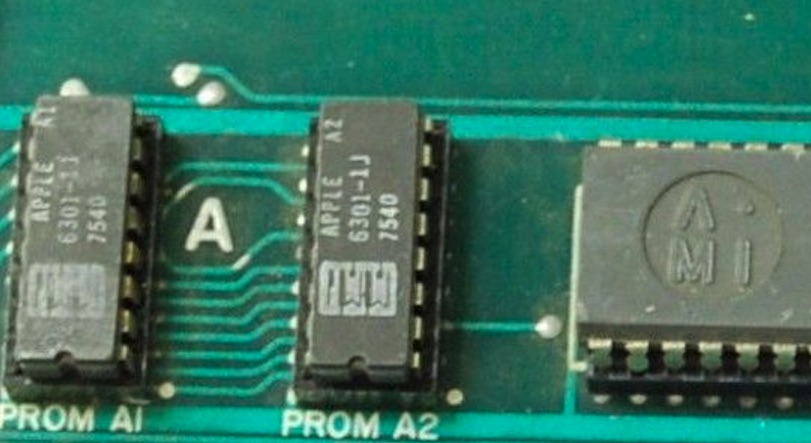

From a photo of a real pre-NTI Apple-1.
MMI graphic logo, “APPLE A1” and “APPLE A2” labels added. ‘75 date code.
Total # on board: 2.
MMI
From a photo of another real pre-NTI Apple-1.
MMI
From a photo of a real NTI Apple-1. MMI graphic logo, “APPLE A_1” and “APPLE A-2” labels added. 7620 date code.
MMI
From another photo of a real NTI Apple-1.

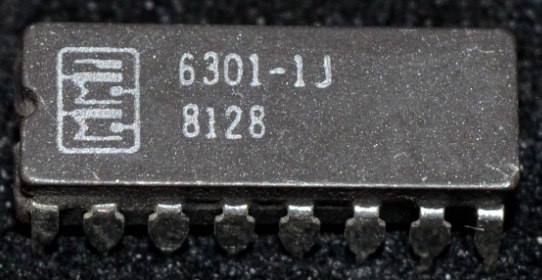

MMI
'81 date code, smaller MMI inverse graphic logo.
MMI

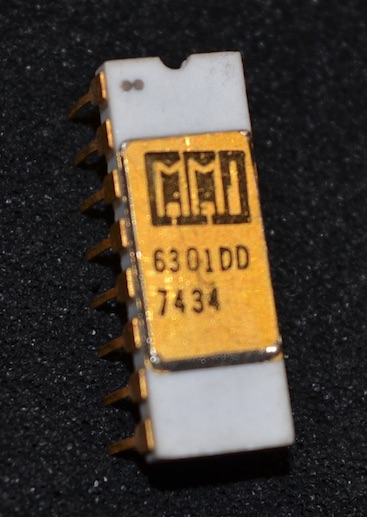

6301DD, white ceramic, MMI graphic logo, '74 date code. Can be coded and will function exactly like the 6301-1J.

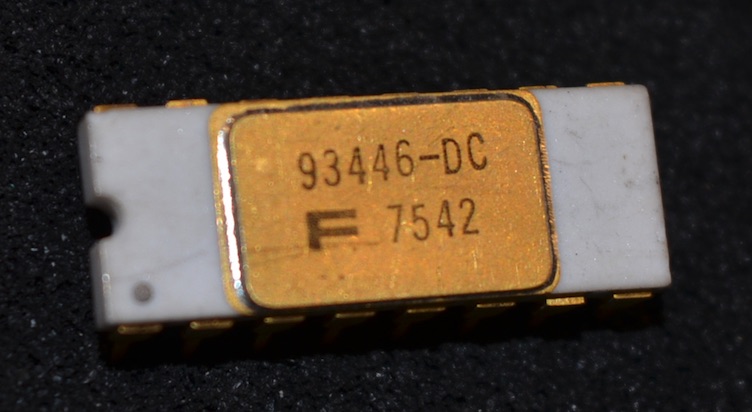

Fairchild
93446-DC, white ceramic, 512x4. Can be coded and will function as an Apple-1 PROM. '75 date code.
MMI

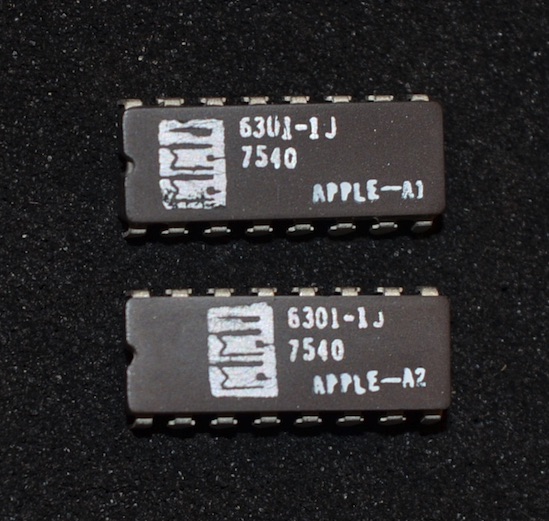

Replicas: original surface lettering removed from ‘80s MMI 6301-1J and re-painted to resemble pre-NTI PROM labeling.
MMI

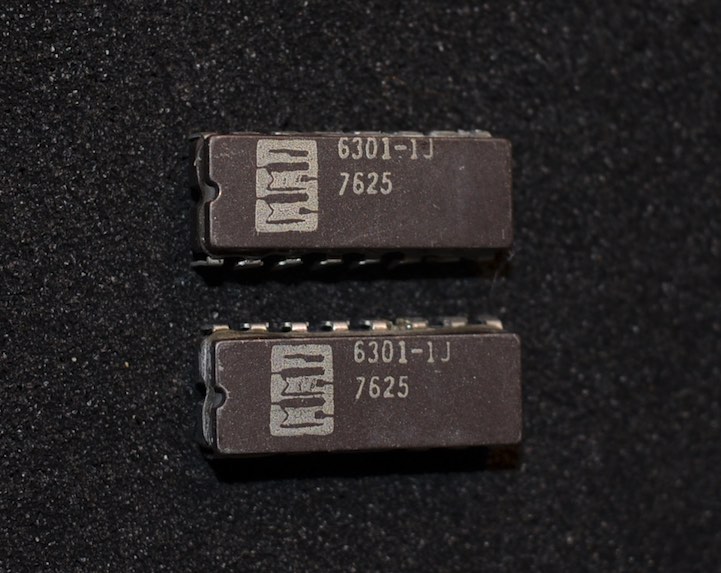

Replicas: original chip lids physically removed from ‘80s MMI 6301-1J and replaced with lids from older chips that had been found to be programmed in the past with unknown code. These actually function correctly even with such a destructive change.
6502 CPU
MOS

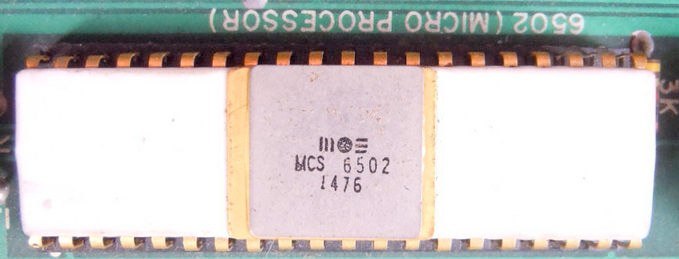

From a photo of a real pre-NTI Apple-1.
MCS 6502, white ceramic, gray cap, rounded edges, 1476 date code.
Total # on board: 1.
MOS

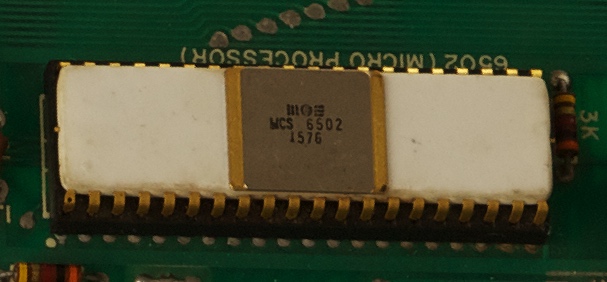

From another photo of a real pre-NTI Apple-1. Gray cap, 1576 date code.

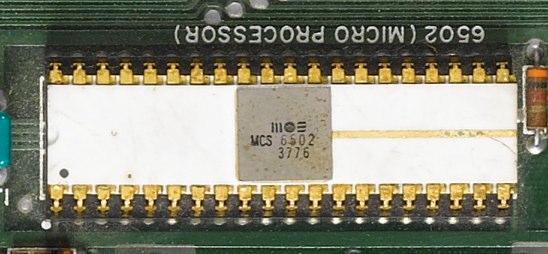

MOS
From a photo of a real NTI Apple-1.
3776 date code, MCS 6502, white ceramic but different appearance than earlier.
MOS

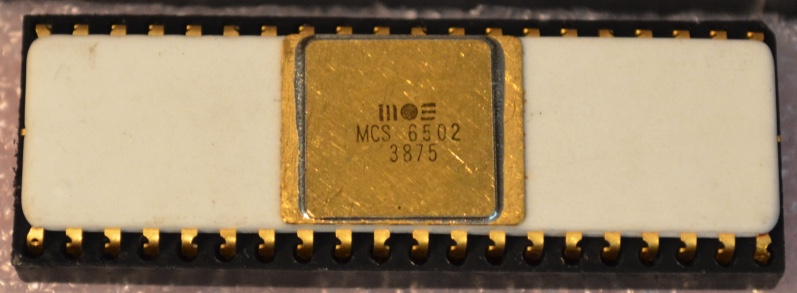

3875 date code, MCS 6502, gold plated cap, rounded edges. Has the ROR error. Currently running my Mimeo replica.

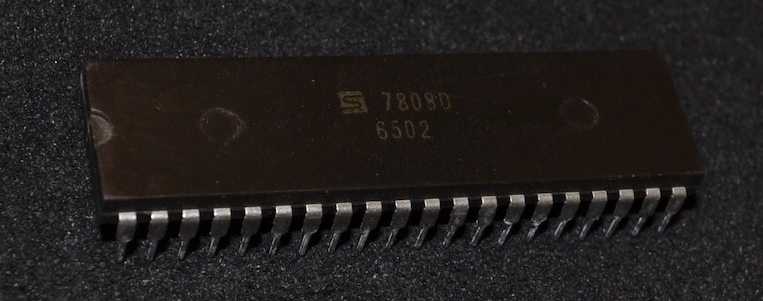

Synertek
6502, 7808 date code. Period-correct part for an early Apple ][.

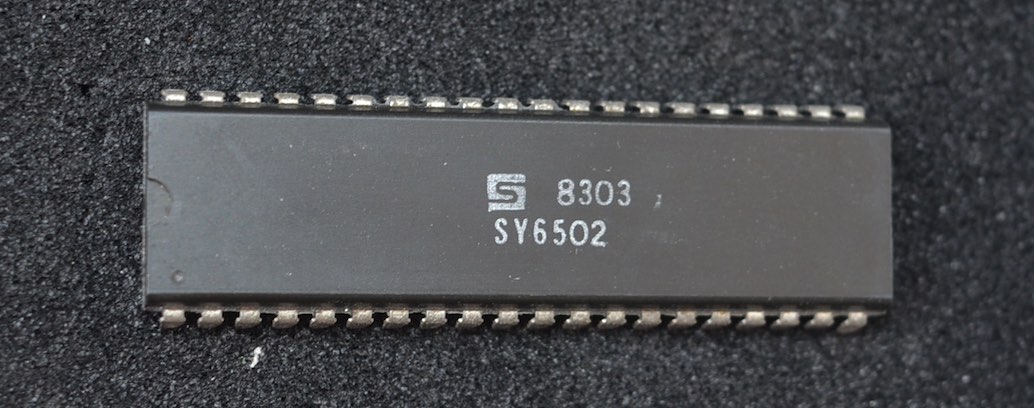

Synertek
SY6502, 8303 date code.
6820 Parallel Interface Adapter (PIA)

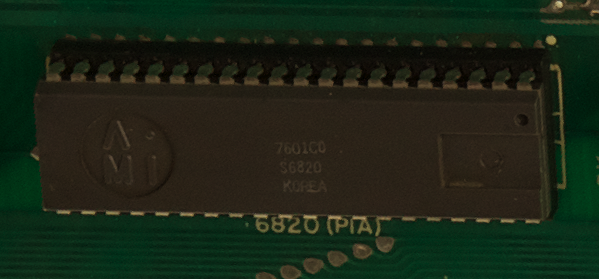

AMI

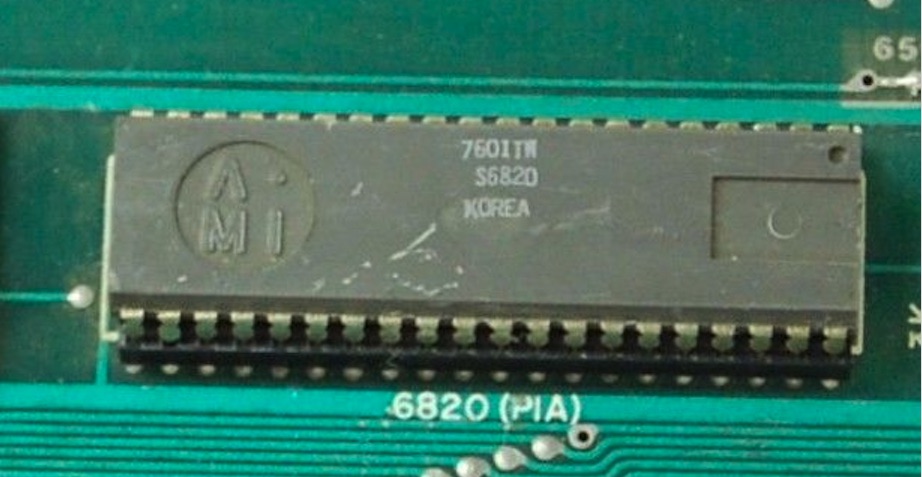

From a photo of a real pre-NTI Apple-1.
S6820, gray plastic, “stacked letters" logo. 7601 date code.
Total # on board: 1.
AMI
From another photo of a real pre-NTI Apple-1.
AMI
From a photo of a real NTI Apple-1.
Same appearance as the pre-NTI version.
Motorola

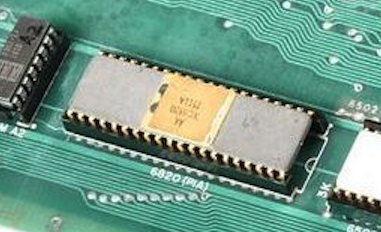

From a photo of a real prototype Apple-1. Ceramic with gold lid.
AMI

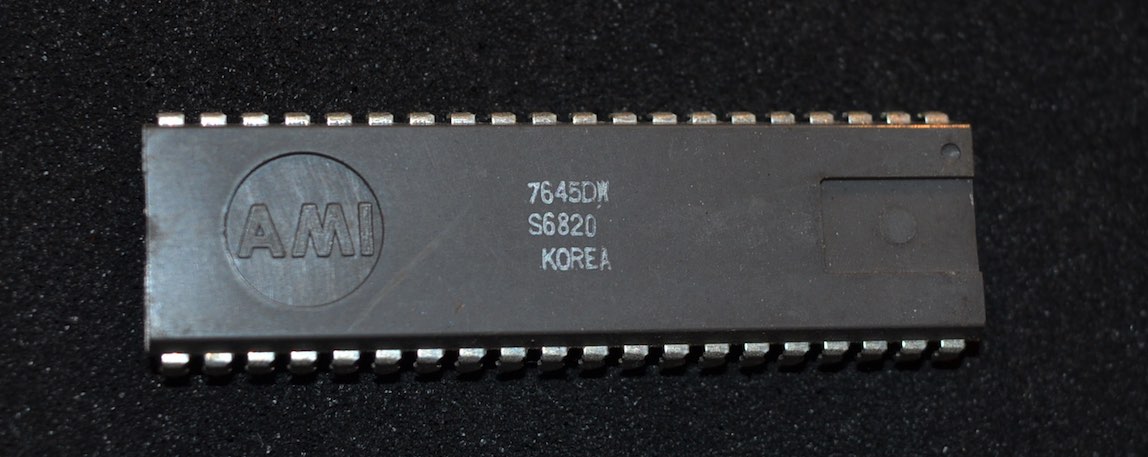

7645 date code, gray plastic, in-line letters logo.
Motorola
XC6820, 7548 date code, ceramic with gray lid and gold-plated legs.

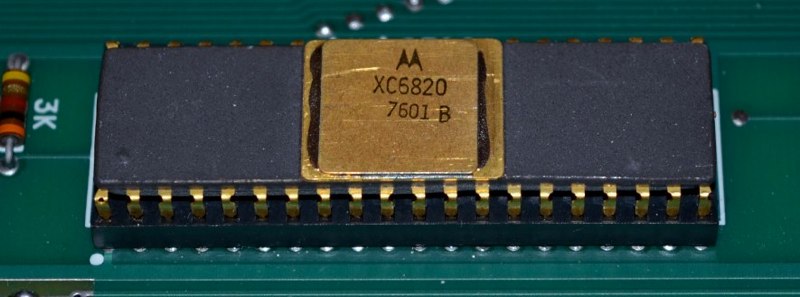

Motorola
XC6820, 7601 date code, ceramic with gold-plated lid and legs.

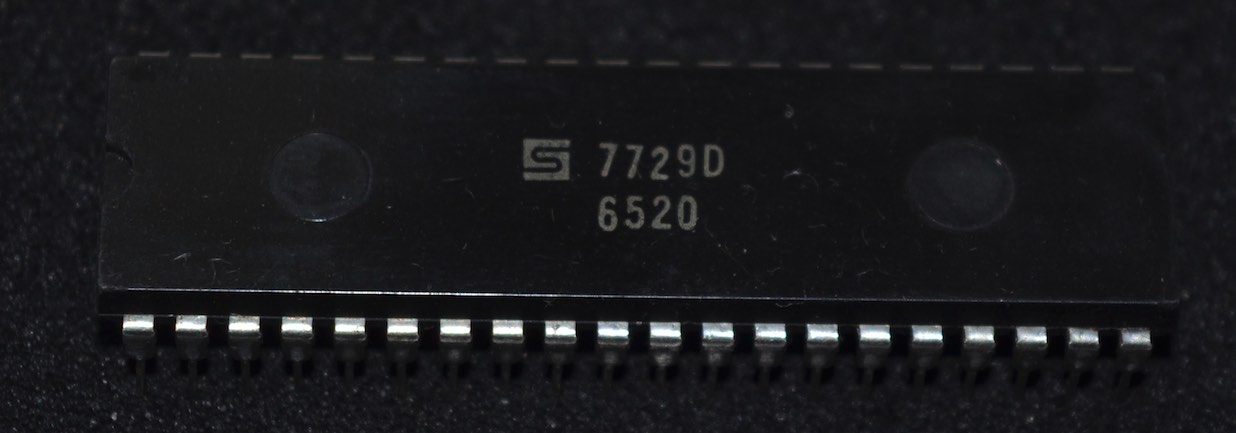

Synertek
6520, black plastic, 7729D date code.
7400 Quad 2-Input NAND Gate
Fairchild
From a photo of a real pre-NTI Apple-1.
9N00/7400 PCF.
7428 date code.
Total # on board: 3.

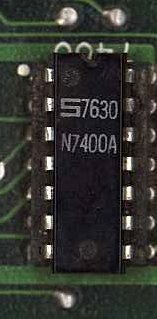

Signetics
From a photo of a real NTI Apple-1.
N7400A.
Vertical labeling, stretched “S” logo, no S below part number.
Total # on board: 3.

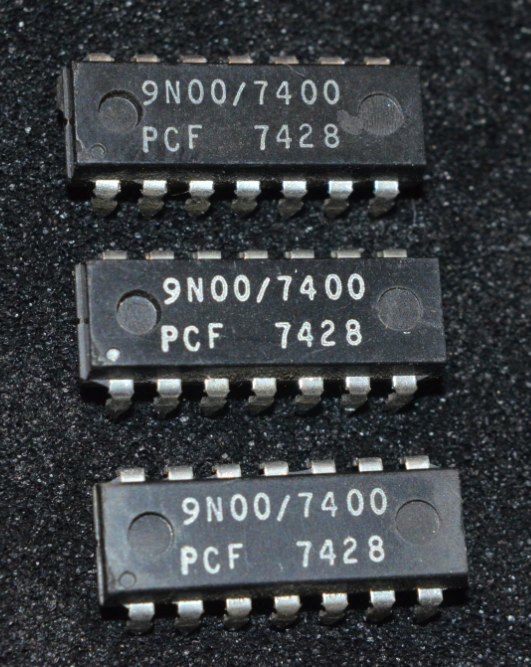

Fairchild
Desoldered.
Exact date code and labeling match of pre-NTI.
Fairchild
Unused.
Close date code to pre-NTI.
Fairchild
Unused.

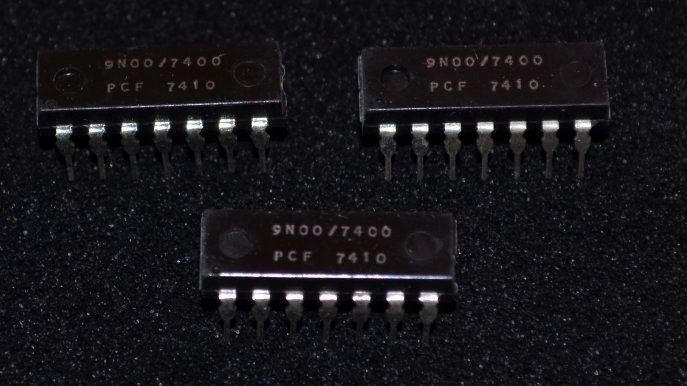

9N00/7400 PCF in smaller lettering. ’74 date code.

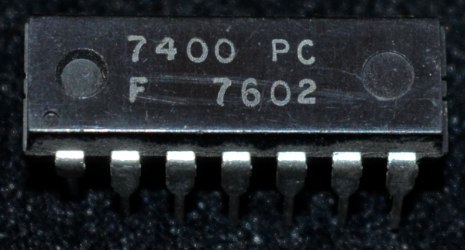

Fairchild
7400 PC F. 7602 date code.
Signetics
N7400A.
Close date code to NTI.
Vertical lettering, no S below part number.
Signetics
Desoldered.

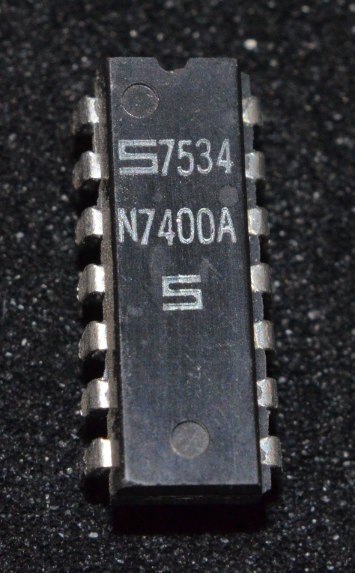

N7400A, vertical lettering with S below part number. ’75 date code.

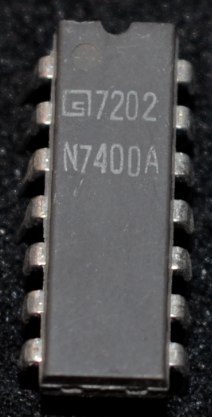

Signetics
N7400A.
Gray plastic, old logo, vertical lettering, no S below part number. ’72 date code.
7402 Quad 2-Input NOR Gate

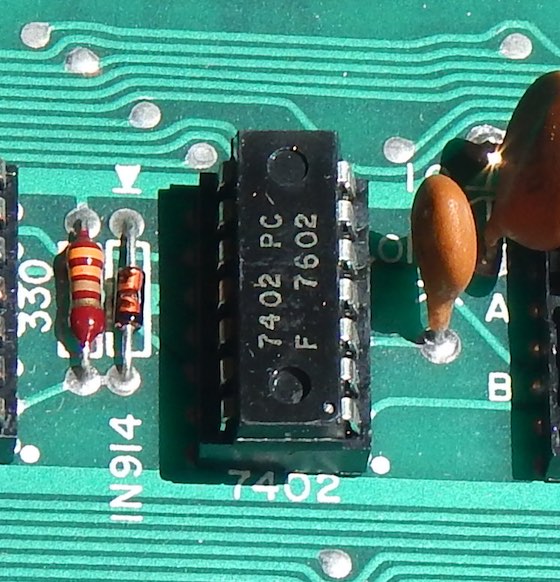

Fairchild
From a photo of a real pre-NTI Apple-1.
7402 PC F, black plastic.
7602 date code.
Total # on board: 1.
Signetics

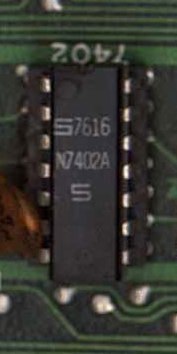

From a photo of a real NTI Apple-1.
Vertical labeling, black plastic, stretched “S” logo, additional S below part number.
Total # on board: 1.
Fairchild
7402 PC F, black plastic. 7625 date code. On my Mimeo replica.
Fairchild

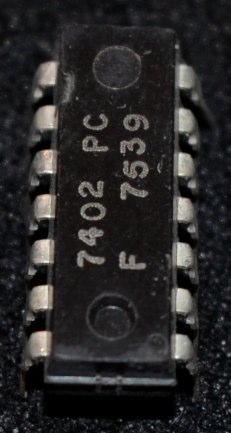

7402 PC F, black plastic. 7539 date code.
Fairchild

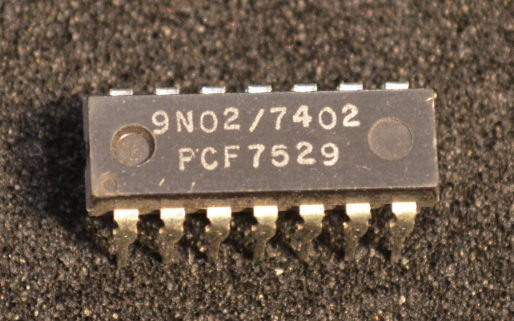

9N02/7402 PCF.
7529 date code.

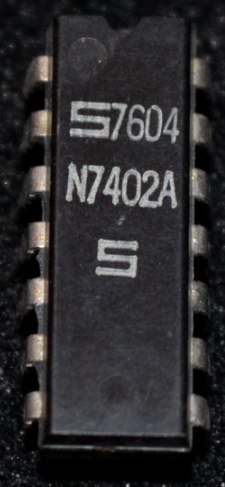

Signetics
Vertical labeling, black plastic, stretched “S” logo, additional S below part number. 7604 date code.
Signetics

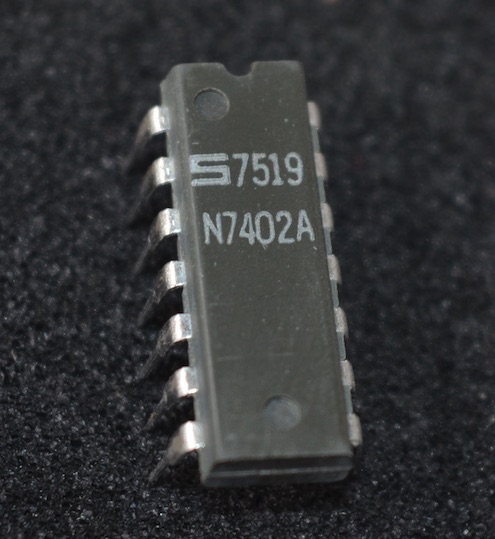

Vertical labeling, no added “S”, 7519 date code.
Signetics
Vertical labeling, additional S, 7535 date code.
Signetics

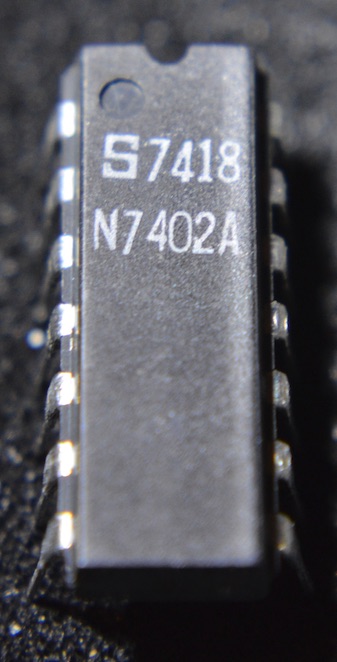

Vertical labeling, block “S” logo, no added S. 7418 date code.
7404 Hex Inverters

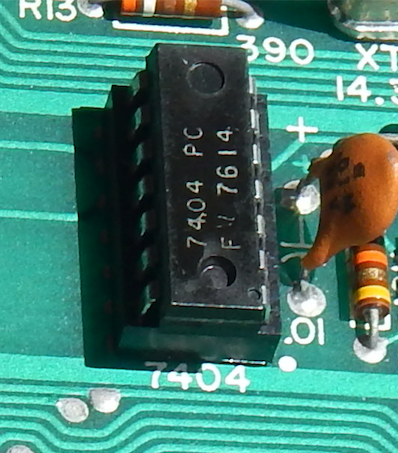

Fairchild
From a photo of a real pre-NTI Apple-1.
7404 PC F, black plastic.
7614 date code.
Total # on board: 1.
Fairchild
From a photo of another real pre-NTI Apple-1.
Signetics

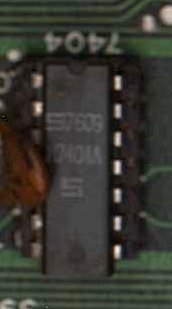

From a photo of a real NTI Apple-1.
Vertical labeling, black plastic, stretched “S” logo, additional S below part number. 7609 date code.
Signetics

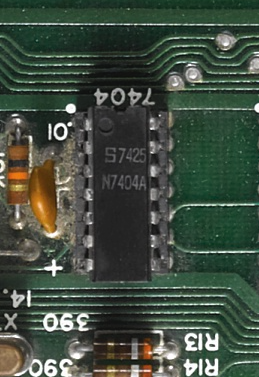

From another photo of a real NTI Apple-1.
Vertical labeling, black plastic, block “S” logo, no added S.
7425 date code.
Fairchild

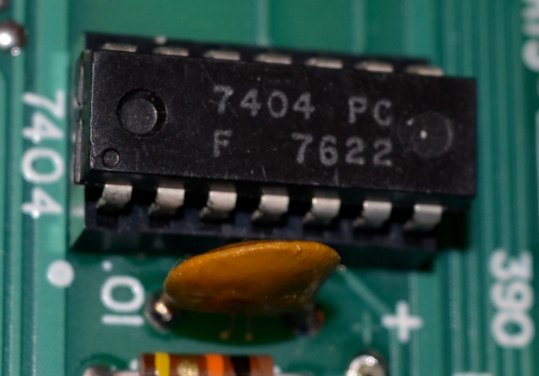

7404 PC F, black plastic. 7622 date code. On my Mimeo replica.

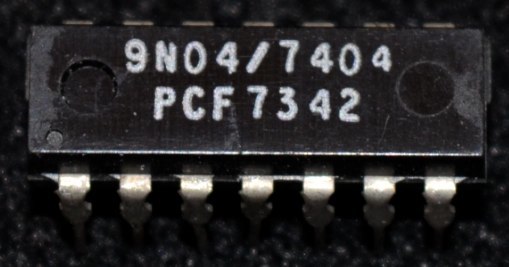

Fairchild
9N04/7404 PCF. 7342 date code.
Signetics

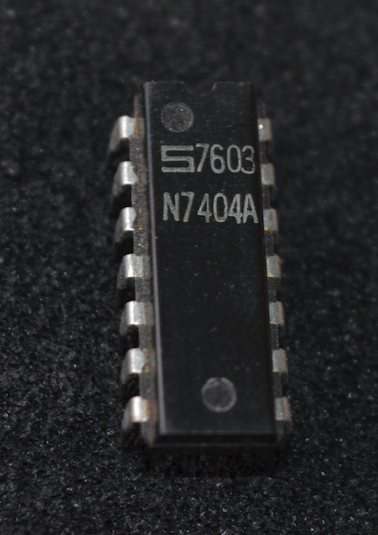

Vertical lettering, black plastic, stretched “S” logo, no added S. 7603 date code.
Signetics

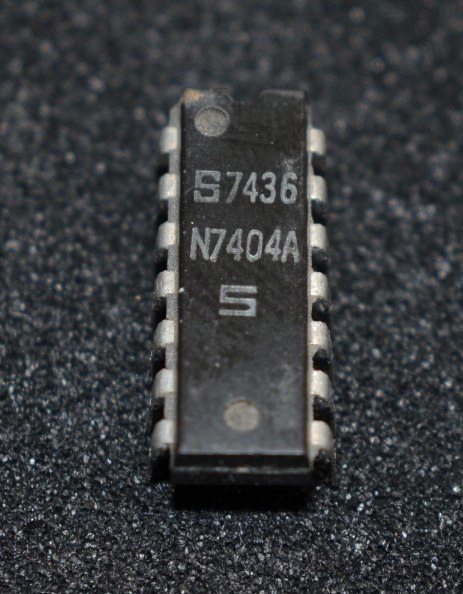

Vertical labeling, black plastic, block “S” logo, added S below part number. 7436 date code.
Signetics

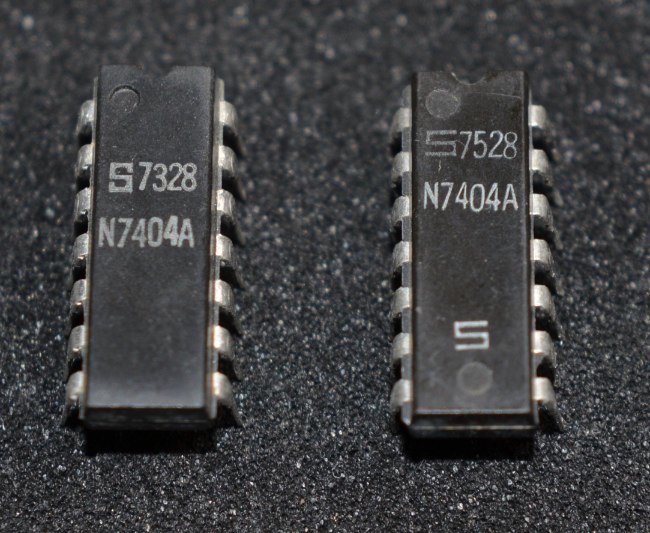

Vertical labeling, with and without added S, ’73 and ’75 date codes.
7408 Quad 2-Input AND Gate

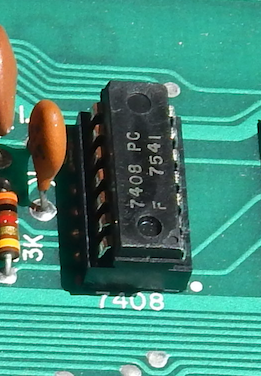

Fairchild
From a photo of a real pre-NTI Apple-1.
7408 PC F, black plastic.
7541 date code.
Total # on board: 1.

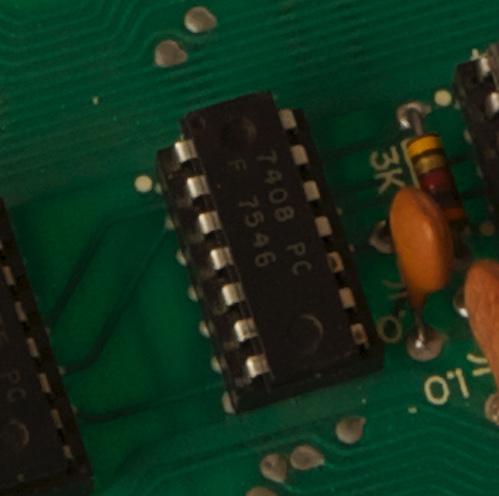

Fairchild
From another photo of a real pre-NTI Apple-1. 7546 date code.

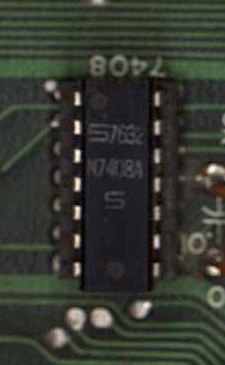

Signetics
From a photo of a real NTI Apple-1.
Vertical labeling, black plastic, stretched “S” logo, additional S below part number. 7632 date code.
Fairchild

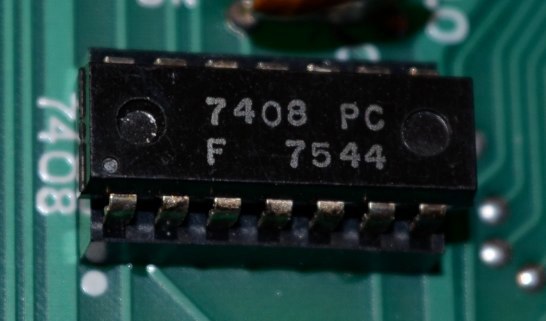

7408 PC F, black plastic, very close to matching date code (7544). On my Mimeo replica.

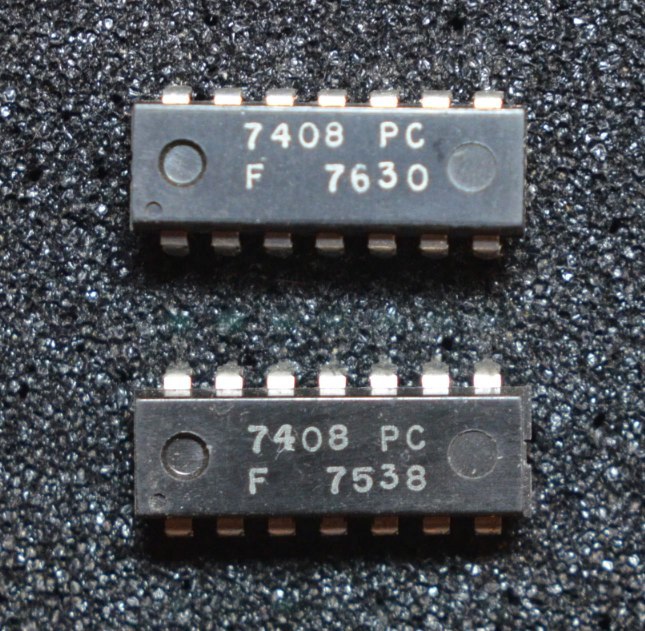

Fairchild
7408 PC F, ’75 and ’76 date codes.
Fairchild

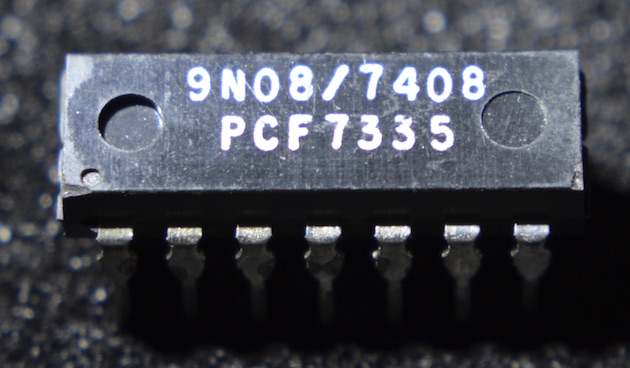

9N08/7408 PCF. 7335 date code.
Fairchild

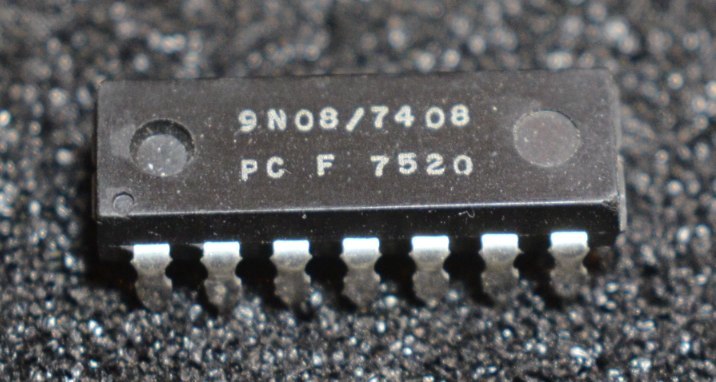

9N08/7408 PC F, small lettering, 7520 date code.

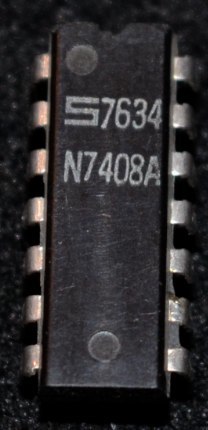

Signetics
Vertical labeling, black plastic, stretched “S” logo, no added S. 7634 date code.
Signetics

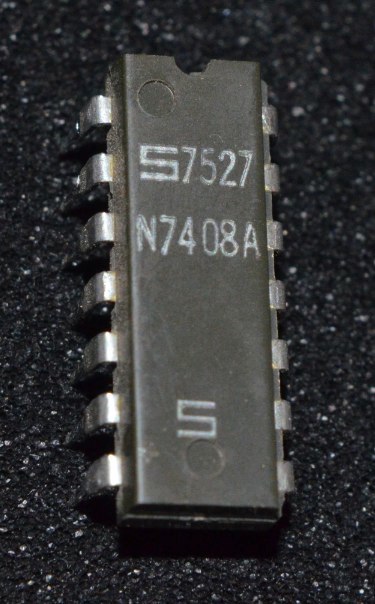

Vertical labeling, stretched “S” logo, added S. 7527 date code.
7410 Triple 3-Input NAND Gate
Fairchild
From a photo of a real pre-NTI Apple-1.
7410 PC F, black plastic.
7537 date code.
Total # on board: 2 (this chip is at location C6)
Fairchild

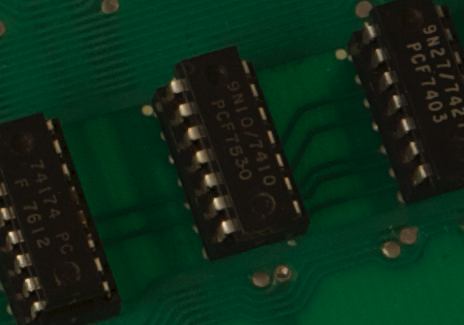

From another photo of a real pre-NTI Apple-1.
9N10/7410 PCF, black plastic, 7530 date code. This is also at location C6.
Fairchild

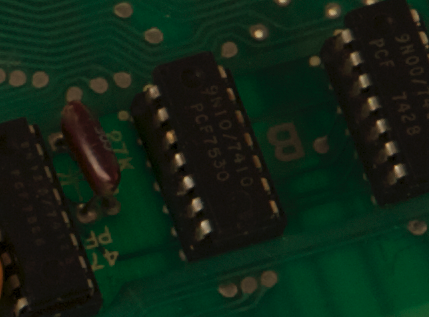

Location B2 of the same Apple-1 as the previous photo. Same part number and date code.

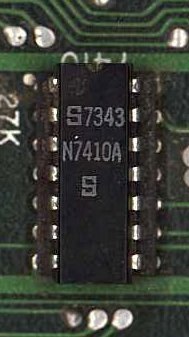

Signetics

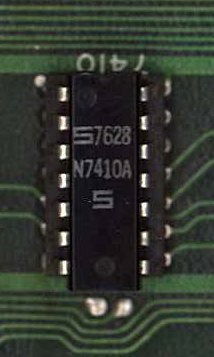

From a photo of a real NTI Apple-1. Vertical labeling, black plastic, stretched “S” logo, additional S below part number. 7628 date code. Location C6.
Signetics
From another photo of a real NTI Apple-1. Vertical labeling, black plastic, block “S” logo, added S. 7343 date code. Location B2.
Fairchild
7410 PC F, black plastic, 7630 date code. On my Mimeo replica at C6.
Fairchild

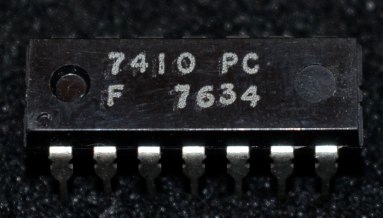

7410 PC F. 7634 date code.
Fairchild
9N10/7410 PCF, 7512 date code. On my Mimeo replica at B2.

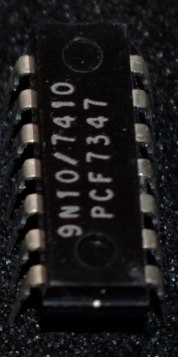

Fairchild
9N10/7410 PCF, black plastic, 7347 date code.
Fairchild

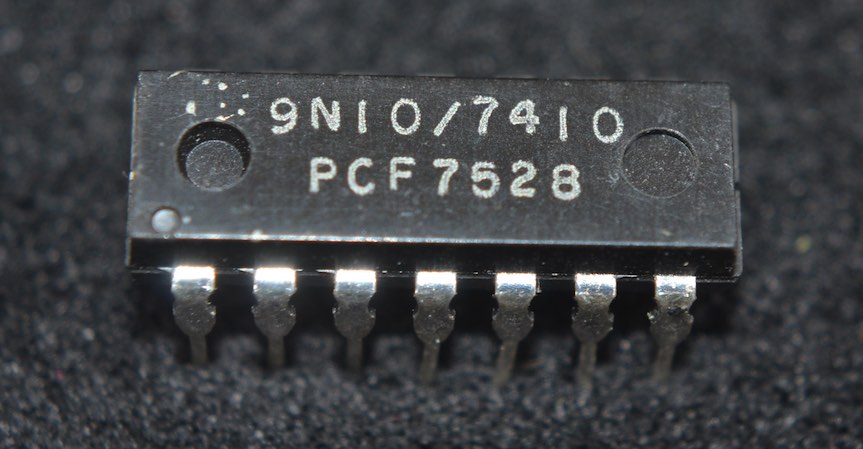

9N10/7410 PCF, black plastic, 7528 date code, close to a date code match.

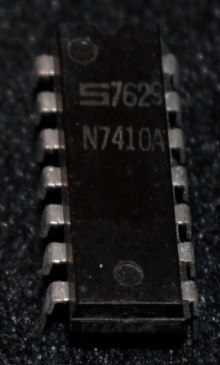

Signetics
Vertical labeling, black plastic, stretched “S” logo, no added S. 7629 date code, very close to a match.
Signetics

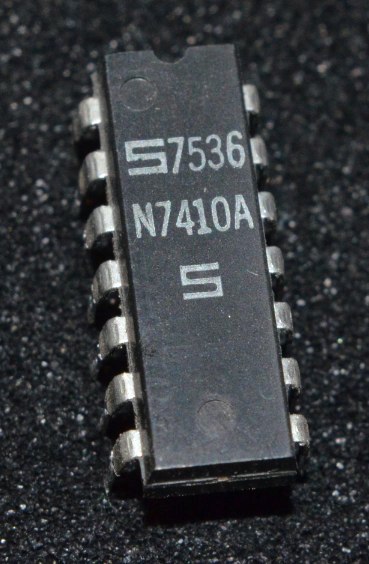

Vertical labeling, stretched “S” logo, added S. 7536 date code.
7427 Triple 3-Input NOR Gate
Fairchild
From a photo of a real pre-NTI Apple-1.
9N27/7427 PCF, black plastic. 7403 date code.
Total # on board: 1.

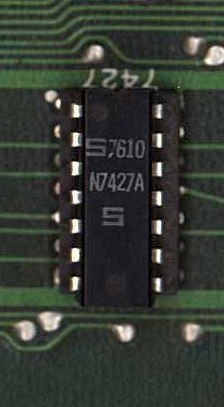

Signetics
From a photo of a real NTI Apple-1.
Vertical labeling, black plastic, stretched “S” logo, additional S below part number. 7610 date code.
Total # on board: 1.
Fairchild
9N27/7427 PCF, black plastic, 7402 date code. Almost exact date code and labeling match to real Apple-1.
Signetics

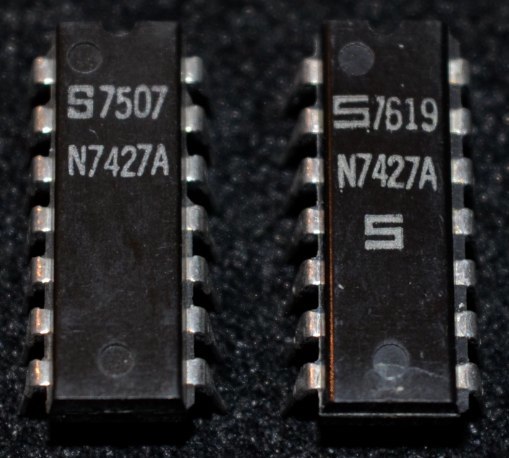

Vertical labeling, black plastic, with and without added S. ’75 and ’76 date codes.
Signetics

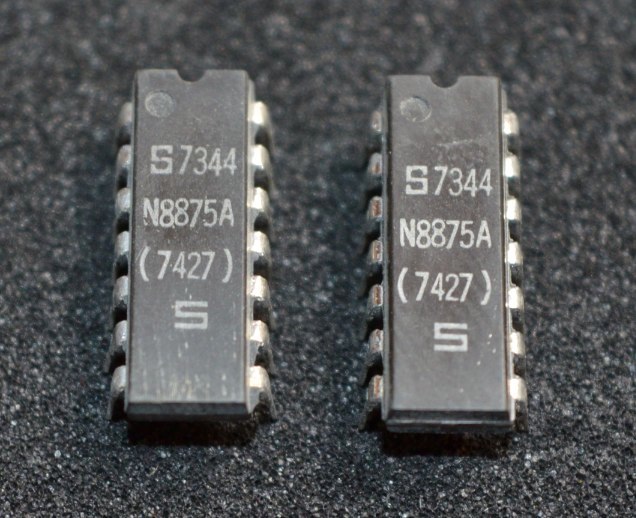

Vertical labeling, gray plastic, N8875A (7427), added S. 7344 date code.
7432 Quad 2-Input OR Gate
Fairchild

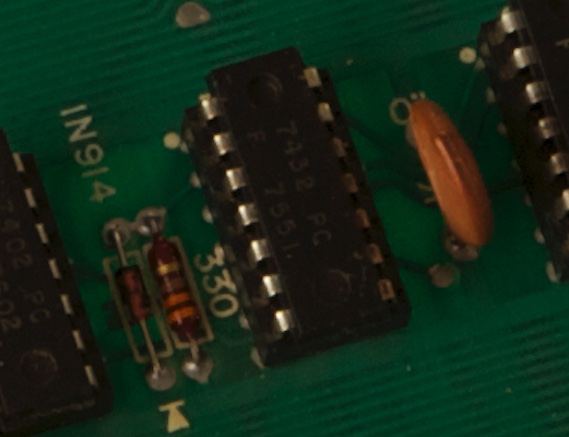

From a photo of a real pre-NTI Apple-1.
7432 PC F, black plastic.
7551 date code.
Total # on board: 1.
Signetics

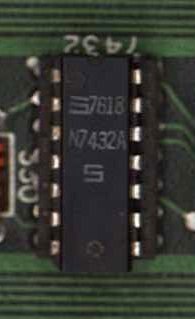

From a photo of a real NTI Apple-1.
Vertical labeling, black plastic, stretched “S” logo, additional S below part number. 7618 date code.
Total # on board: 1.
Fairchild

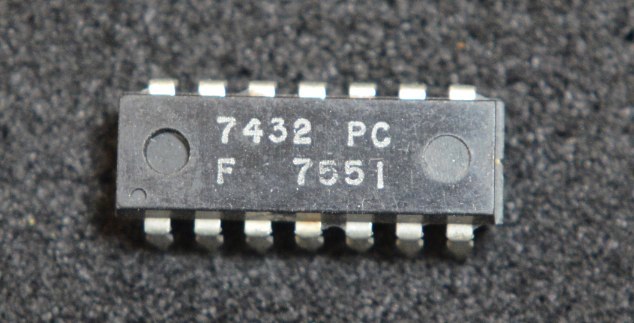

7432 PC F, black plastic. 7551 date code. Exact date code and labeling match to the real Apple-1.
Fairchild

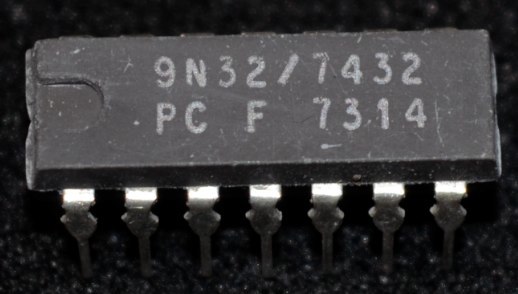

9N32/7432 PC F, gray plastic. 7314 date code.
Signetics

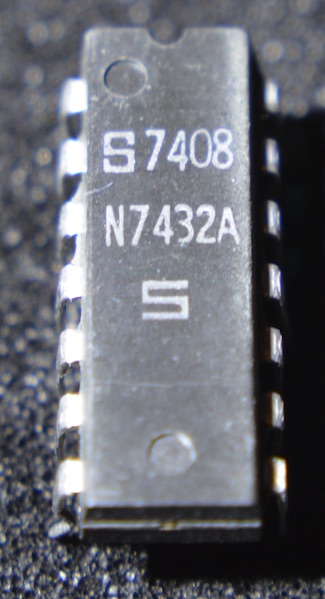

Vertical labeling, gray plastic, block “S” logo, added S. 7408 date code.

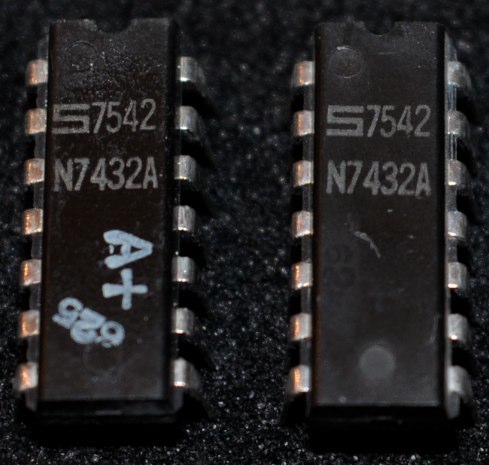

Signetics
Vertical labeling, black plastic, stretched “S” logo, no added S. 7542 date code. Extra lettering can be removed as shown.
7451 Dual AND-OR-INVERT Gate
Fairchild

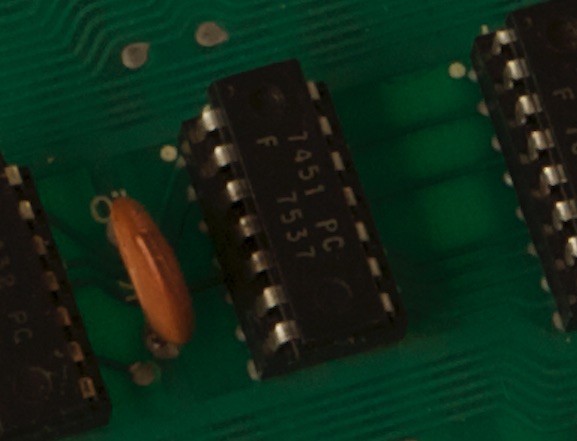

From a photo of a real pre-NTI Apple-1.
7451 PC F, black plastic.
7537 date code.
Total # on board: 1.
Signetics

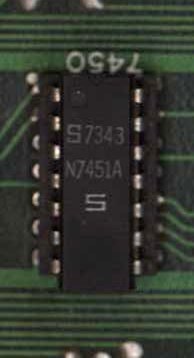

From a photo of a real NTI Apple-1.
Vertical labeling, black plastic, block “S” logo, additional S below part number.
Total # on board: 1.

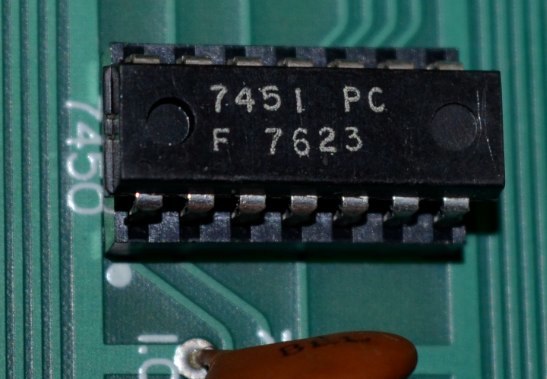

Fairchild
7451 PC F, black plastic, 7623 date code. On my Mimeo replica.
Fairchild

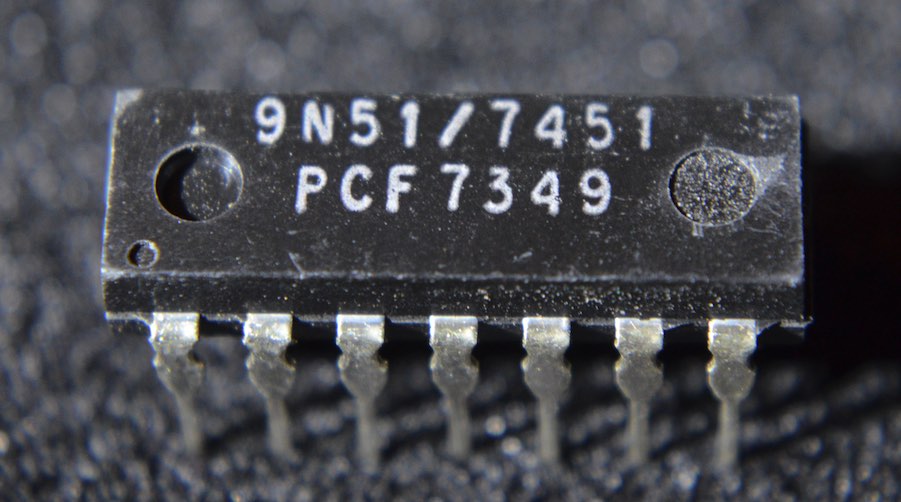

9N51/7451 PCF, black plastic. 7349 date code.

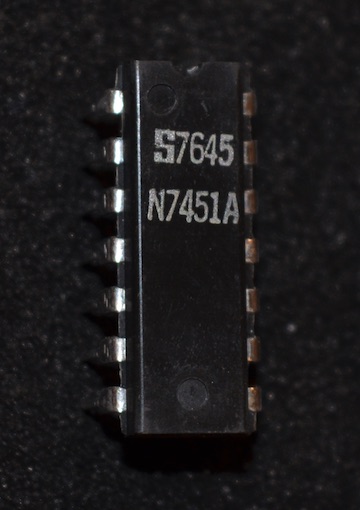

Signetics
Vertical labeling, black plastic, block “S” logo, no added S. 7645 date code.
Signetics

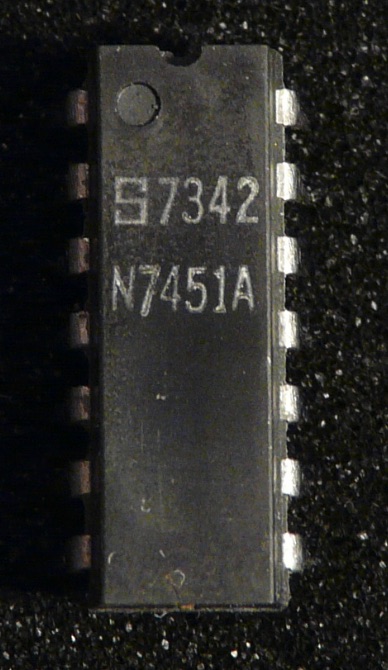

Vertical labeling, black plastic, block “S” logo, no added S. 7342 date code, almost exact date code match to the real Apple-1.
9316/74161 Synchronous 4-Bit Binary Counter
Fairchild

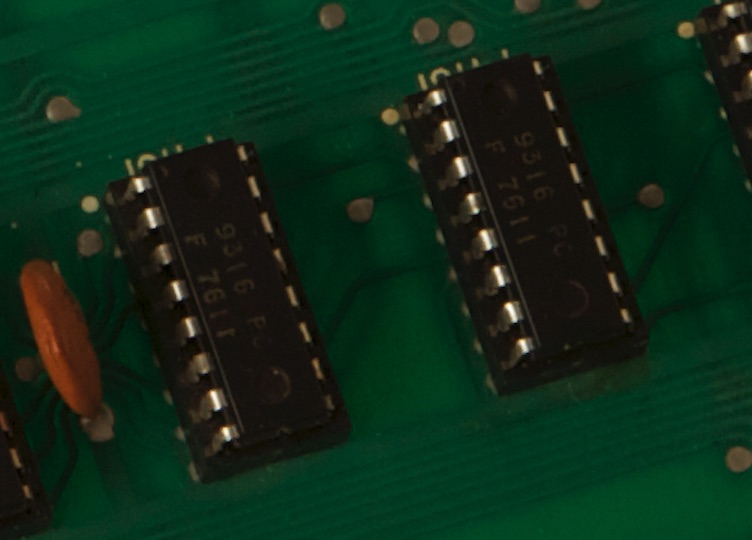

From a photo of a real pre-NTI Apple-1.
9316 PC F, black plastic.
7611 date code.
Total # on board: 5. Locations D7 and D8 shown. Three more are at D9, D11 and D15.
Fairchild
From another photo of a real pre-NTI Apple-1.

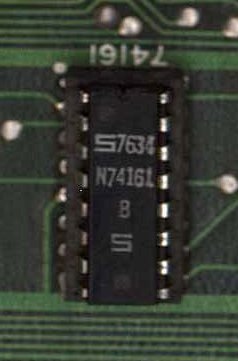

Signetics
From a photo of a real NTI Apple-1.
Vertical labeling, black plastic, stretched “S” logo, additional S below part number. 7634 date code.
Total # on board: 5. Location D7 shown.
Fairchild

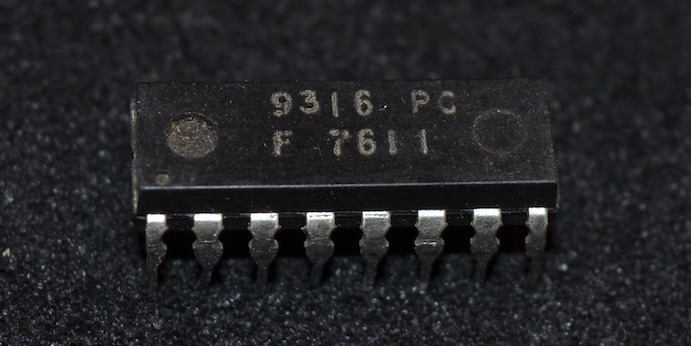

9316 PC F, black plastic. 7611 date code. Exact date code and labeling match to the real Apple-1.
Fairchild
9316 DC F, dark gray ceramic. 7344 date code.
Signetics
Vertical labeling, black plastic, block “S” logo, no added S. 7427 date code.
74123 Dual Monostable Multivibrator
Fairchild
From a photo of a real pre-NTI Apple-1.
9N123/74123 PCF, black plastic, small lettering.
7526 date code.
Total # on board: 1.

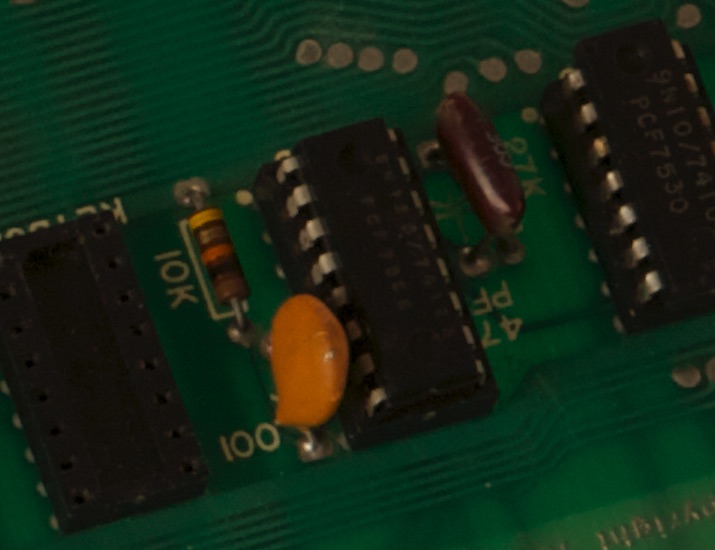

Fairchild
From another photo of a real pre-NTI Apple-1.
74123 PC F, black plastic. 7538 date code.
Signetics
From a photo of a real NTI Apple-1.
Vertical labeling, black plastic, stretched “S” logo, additional S below part number. 7627 date code.

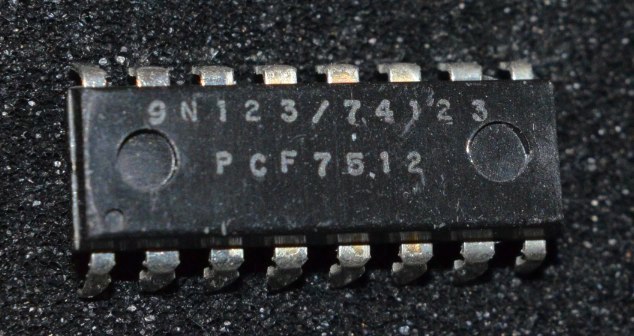

Fairchild
9N123/74123 PCF, black plastic, small lettering. 7512 date code. Close date code and exact labeling match to the real Apple-1.
Signetics

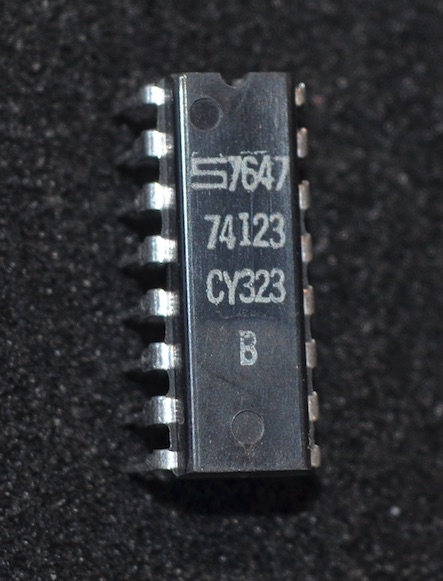

Vertical labeling, black plastic, “CY323” added below part number, no added S. 7647 date code.
Signetics
Vertical labeling, gray plastic, old “S” in box logo, no added S. ’72 date code.
74154 4-To-16 Line Decoder/Demultiplexer

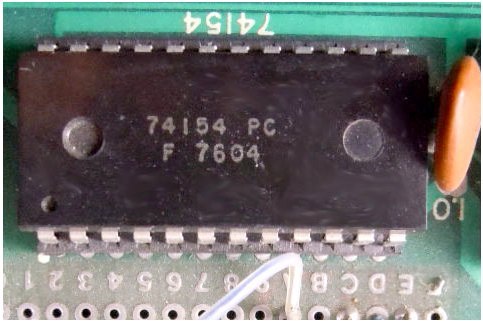

Fairchild
From a photo of a real pre-NTI Apple-1.
74154 PC F, black plastic.
7604 date code.
Total # on board: 1.

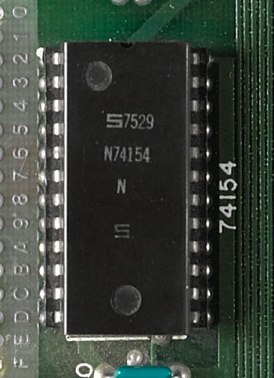

Signetics
From a photo of a real NTI Apple-1.
Vertical labeling, black plastic, stretched “S” logo, additional S below part number. 7529 date code.
Total # on board: 1.

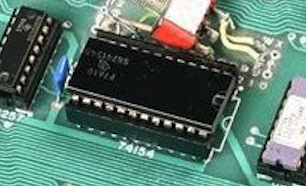

Texas Instruments
From a photo of a real prototype Apple-1.
SN74154N, black plastic, 7410 date code.

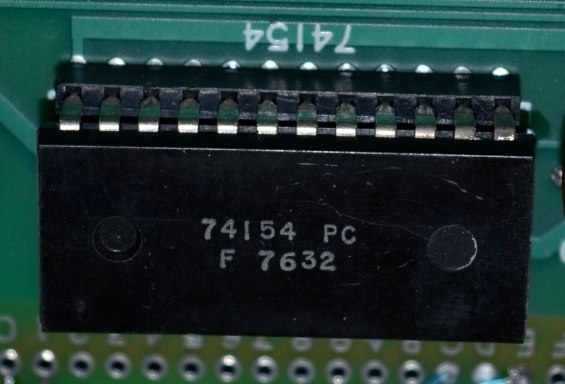

Fairchild
74154 PC F, black plastic. 7632 date code. Close date code and exact labeling match to the real Apple-1. On my Mimeo replica.
Signetics

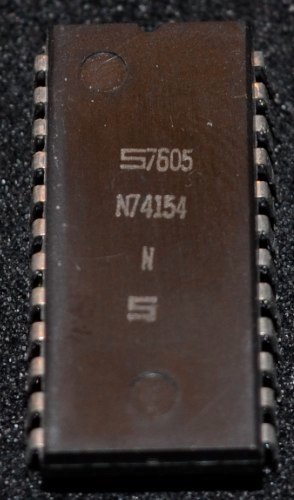

Vertical labeling, black plastic, stretched “S” logo, added S. 7605 date code.
Texas Instruments
SN74154N, black plastic, 7632 date code.
74157 Quad 2-Input Multiplexer

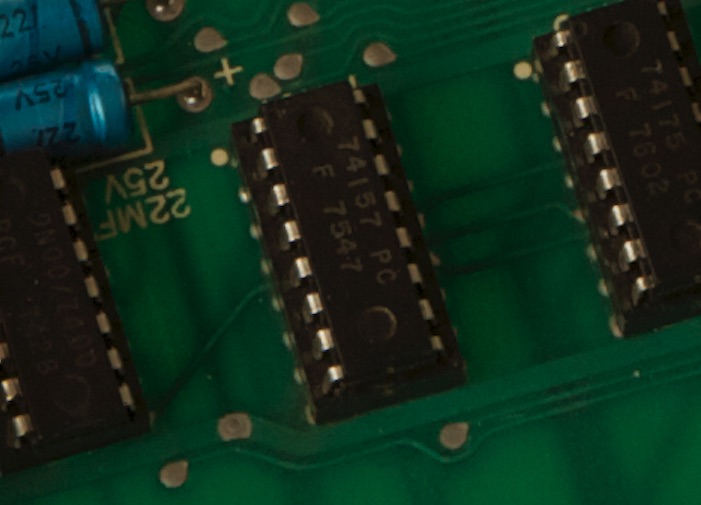

Fairchild
From a photo of a real pre-NTI Apple-1.
74157 PC F, black plastic.
7547 date code.
Total # on board: 2. Location C14 shown.

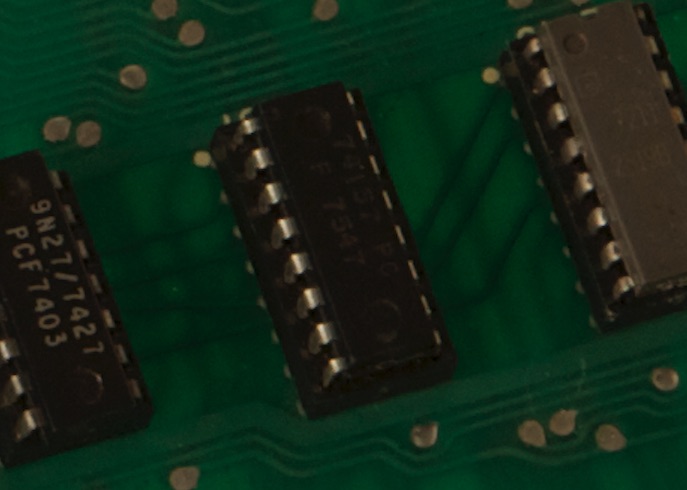

Fairchild
Location C4 on the same pre-NTI Apple-1 as the previous photo.

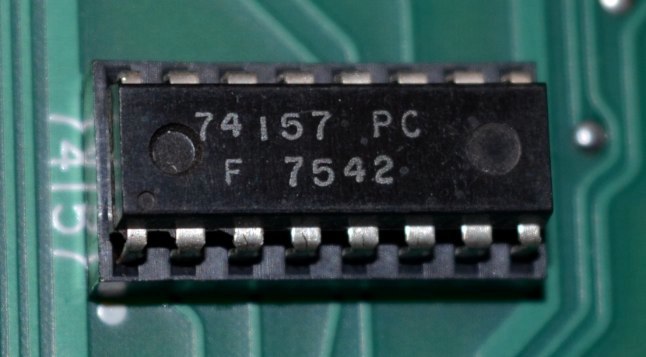

Fairchild
From another photo of a real pre-NTI Apple-1.
74157 PC F, black plastic. 7542 date code.
Signetics

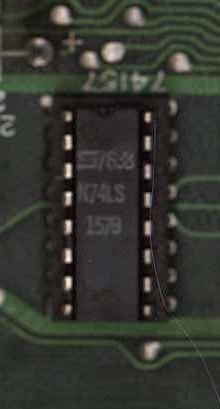

From a photo of a real NTI Apple-1, showing location C14.
N74LS157B. Vertical labeling, black plastic, stretched “S” logo, no added S. 7638 date code.

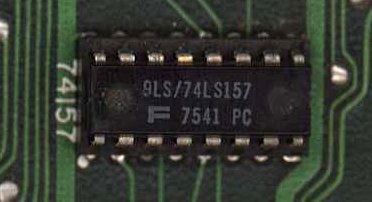

Fairchild
Location C4 on the same NTI Apple-1 as the previous photo.
9LS/74LS157 F PC. Stretched, bold “F” logo. 7541 date code.
Fairchild
74157 PC F, black plastic. 7542 date code. Exact date code and labeling match to the real Apple-1.

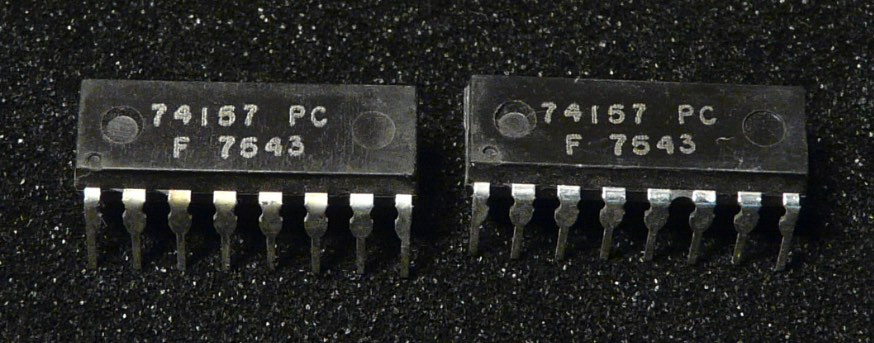

Fairchild
74157 PC F, black plastic. 7543 date code. Very close date code and exact labeling match to the real Apple-1.

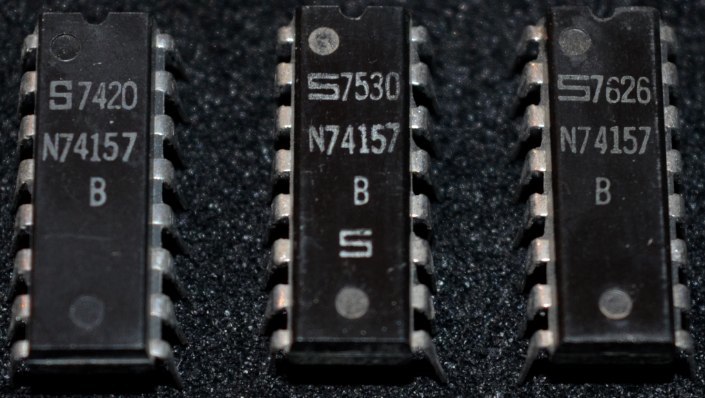

Signetics
Vertical labeling, black plastic, with and without added S. ’74, ’75, ’76 date codes.
74160 4-Bit Synchronous Decade Counter

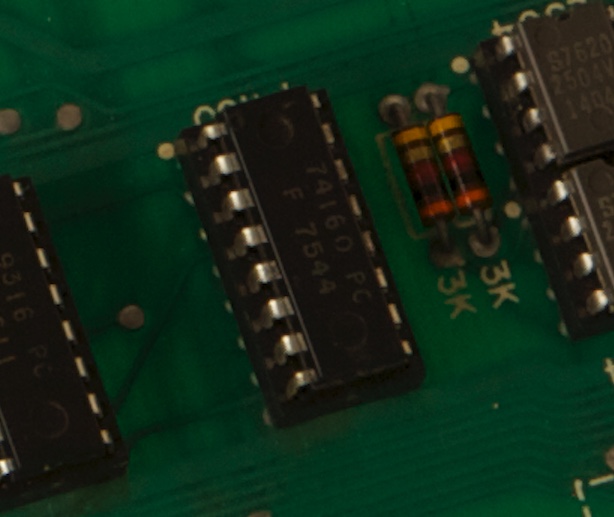

Fairchild
From a photo of a real pre-NTI Apple-1.
74160 PC F, black plastic.
7544 date code.
Total # on board: 1.

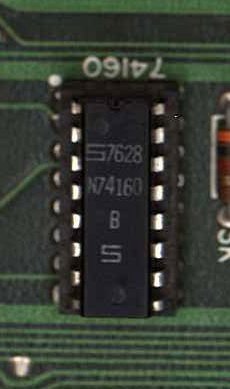

Signetics
From a photo of a real NTI Apple-1.
Vertical labeling, black plastic, stretched “S” logo, additional S below part number. 7628 date code.
Total # on board: 1.

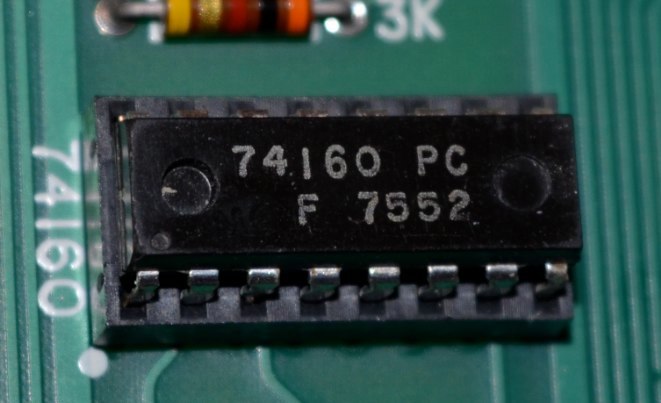

Fairchild
74160 PC F, black plastic. 7552 date code. Close date code and labeling match to the real Apple-1. On my Mimeo replica.

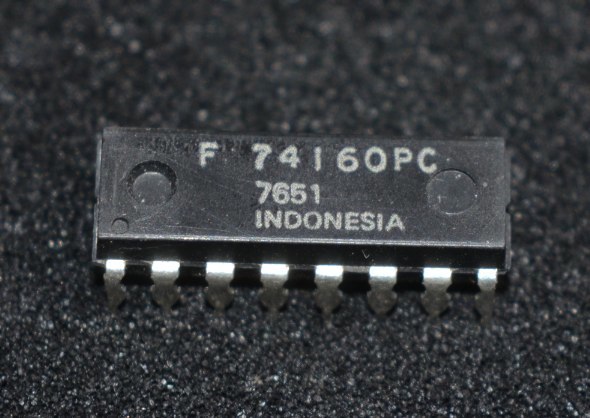

Fairchild
F 74160PC, black plastic. 7651 date code.
Signetics
Vertical labeling, black plastic, stretched “S” logo, no added S. 7639 date code. Extra white lettering can be removed.
74166 8-Bit Shift Register

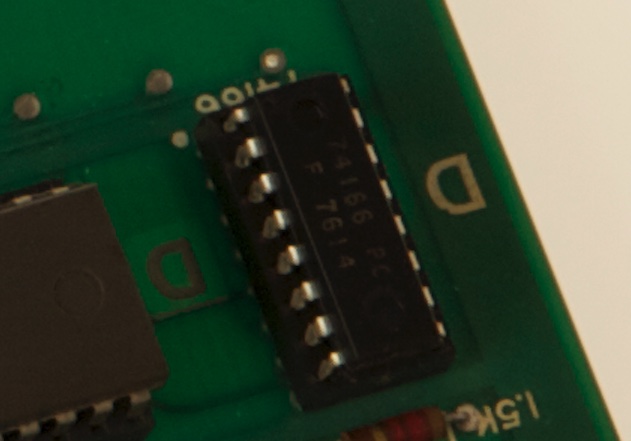

Fairchild
From a photo of a real pre-NTI Apple-1.
74166 PC F, black plastic.
7614 date code.
Total # on board: 1.

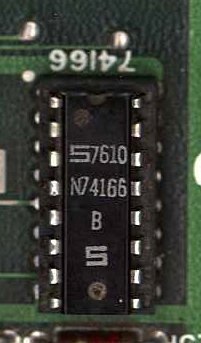

Signetics
From a photo of a real NTI Apple-1.
Vertical labeling, black plastic, stretched “S” logo, additional S below part number. 7610 date code.
Total # on board: 1.

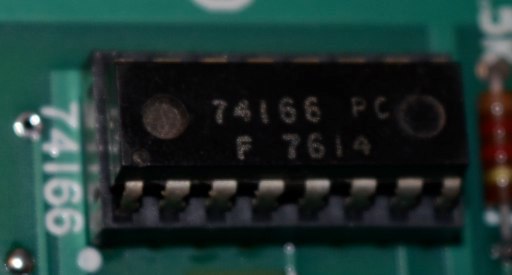

Fairchild
74166 PC F, black plastic. 7614 date code. Exact date code and labeling match to the real Apple-1. On my Mimeo replica.

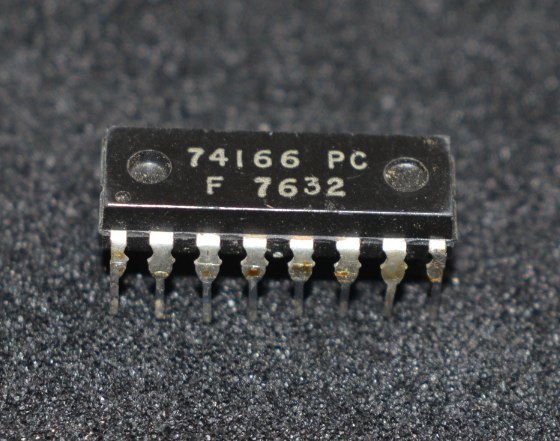

Fairchild
74166 PC F, black plastic. 7632 date code. Close date code and exact labeling match to the real Apple-1.

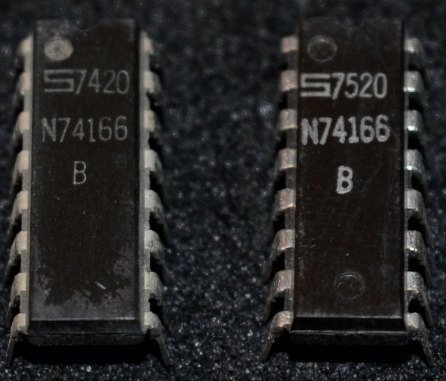

Signetics
Vertical labeling, black plastic, stretched “S” logo, no added S. ’74 and ’75 date codes.
74174 Hex D-Type Flip Flop
Fairchild

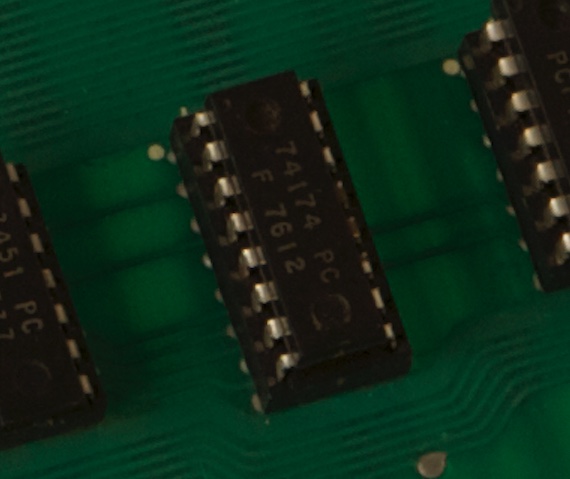

From a photo of a real pre-NTI Apple-1.
74174 PC F, black plastic.
7612 date code.
Total # on board: 1.

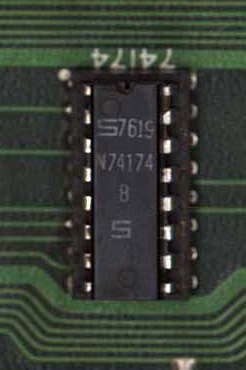

Signetics
From a photo of a real NTI Apple-1.
Vertical labeling, black plastic, stretched “S” logo, additional S below part number.
Total # on board: 1.
Fairchild
74174 PC F, black plastic. 7610 date code. Very close date code and exact labeling match to the real Apple-1.

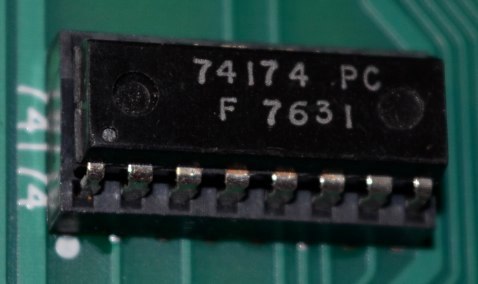

Fairchild
74174 PC F, black plastic. 7631 date code. Close date code and exact labeling match to the real Apple-1.

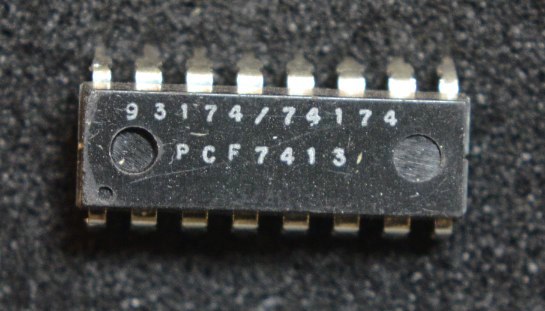

Fairchild
93174/74174 PCF, black plastic, small lettering. 7413 date code.
Signetics
Vertical labeling, black plastic, no added S. ’73, ’74, ’76 date codes.
74175 Quad D-Type Flip Flop
Fairchild
From a photo of a real pre-NTI Apple-1.
74175 PC F, black plastic.
7602 date code.
Total # on board: 1.
Fairchild
From another photo of a real pre-NTI Apple-1. Same labeling and date code as the previous photo.

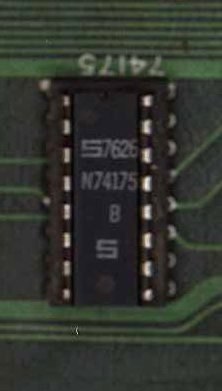

Signetics
From a photo of a real NTI Apple-1.
Vertical labeling, black plastic, stretched “S” logo, additional S below part number. 7626 date code.
Total # on board: 1.

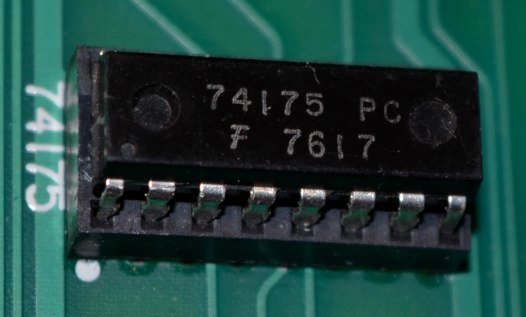

Fairchild
74175 PC F, black plastic, stylized “F” logo. 7617 date code. On my Mimeo replica.
Fairchild
93175/74175 PCF, black plastic, small lettering. 7405 date code.

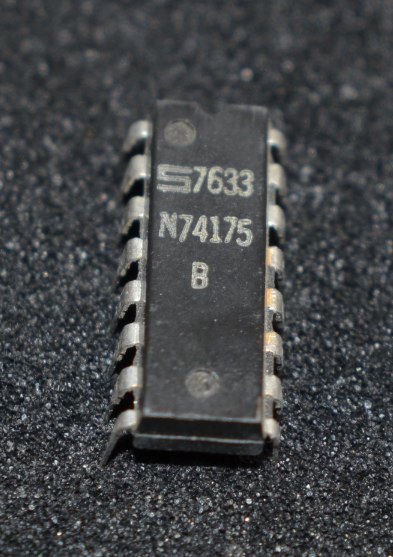

Signetics
Vertical labeling, black plastic, stretched “S” logo, no added S below part number. 7633 date code.
74S257 Quad 2-Input Multiplexer
Fairchild

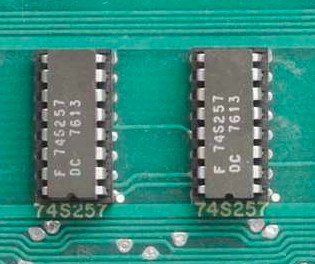

From a photo of a real pre-NTI Apple-1.
F 74S257 DC, gray ceramic.
7613 date code (also seen with 7617 date code).
Total # on board: 4 (locations B5 - B8).

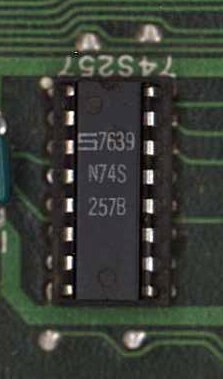

Signetics
From a photo of a real NTI Apple-1.
Vertical labeling, black plastic, stretched “S” logo, no added S below part number.
Total # on board: 4.

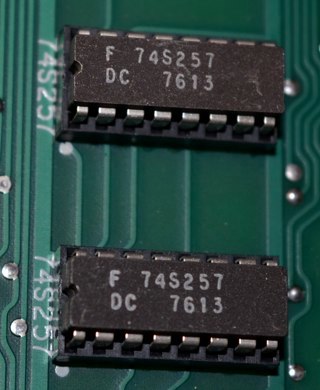

Fairchild
F 74S257 DC, gray ceramic. 7613 date code. Exact date code and labeling match to the real Apple-1. On my Mimeo currently.

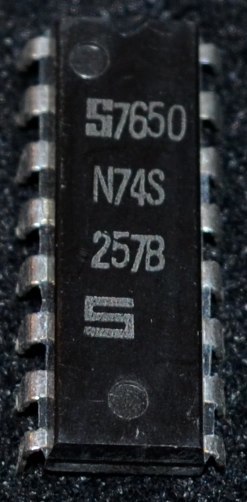

Signetics
Vertical labeling, black plastic, block “S” logo, additional S below part number. 7650 date code.
Signetics
Horizontal labeling, black plastic. 8112 date code.

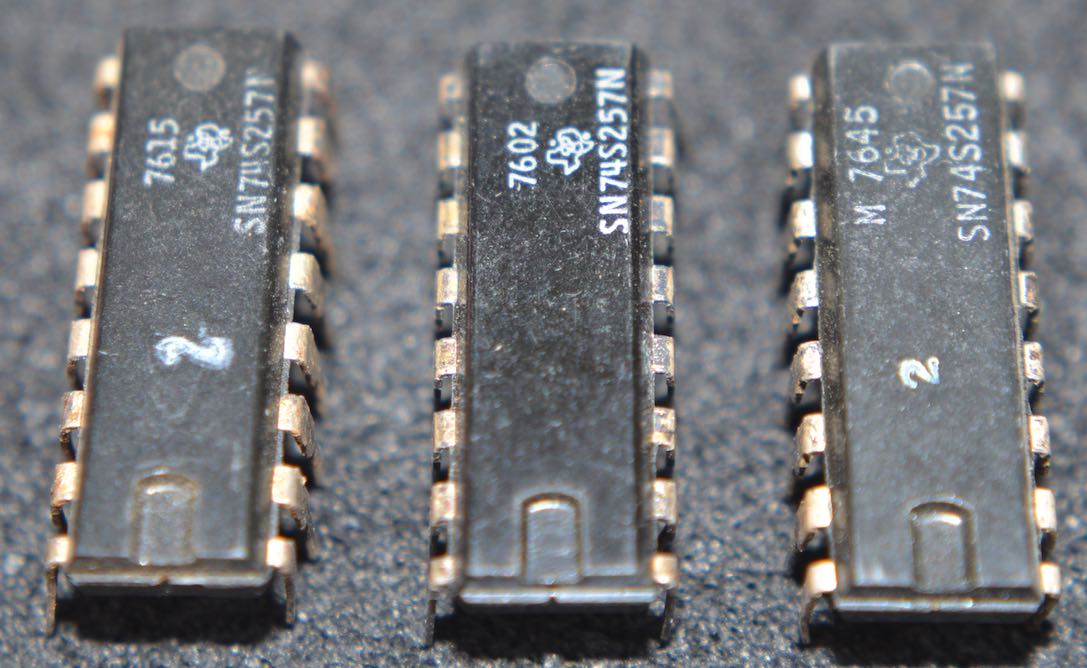

Texas Instruments
SN74S257N, black plastic. ’76 date codes.
4K x 1-Bit Dynamic RAM
MOSTEK

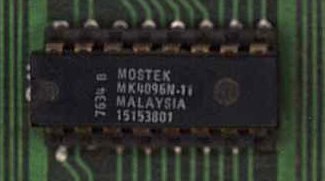

From a photo of a real NTI Apple-1.
MK4096N-11, black plastic.
7634 date code.
Total # on board: 16.
MOSTEK

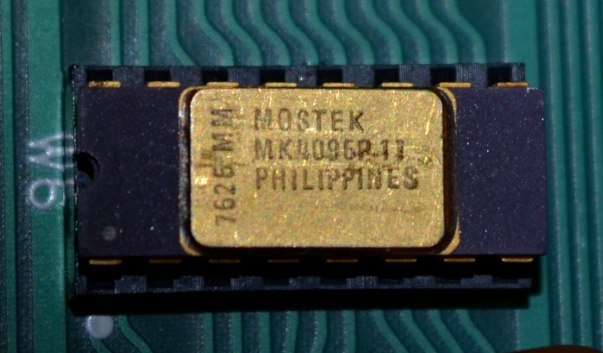

MK4096P-11, purple ceramic with gold-plated legs and cap. 7626 date code. On my Mimeo replica.
MOSTEK
MK4096P-6, purple ceramic with gold-plated legs and cap. 7617 date code.
MOSTEK
MK4096P7, purple ceramic with gold-plated legs and cap. ’75 date codes.
MOSTEK

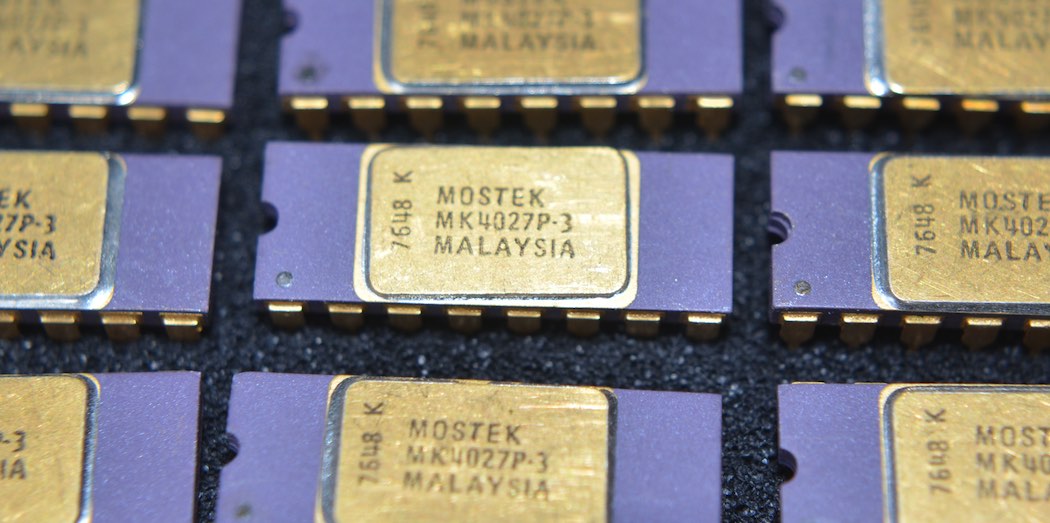

MK4027P-3, purple ceramic with gold-plated legs and cap. ’76 date codes.
555 Timer

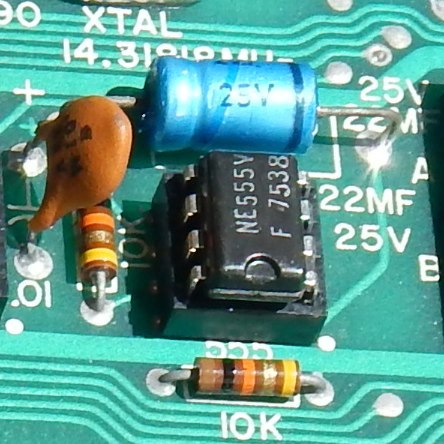

Fairchild
From a photo of a real pre-NTI Apple-1.
NE555V F, black plastic.
7538 date code.
Total # on board: 1.
Signetics
From a photo of a real NTI Apple-1.
Vertical labeling, black plastic, block “S” logo. 7609 date code.
Total # on board: 1.

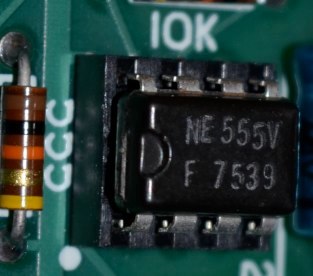

Fairchild
NE555V F, black plastic. 7539 date code. Very close date code and exact labeling match to the real Apple-1.

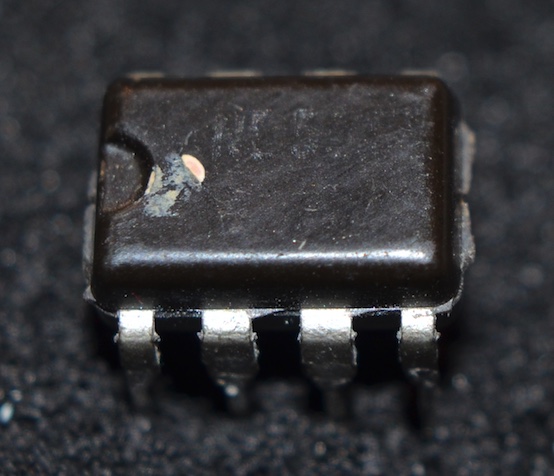

Fairchild
Labeling amost worn off, but appears to be an NE555V F in black plastic.

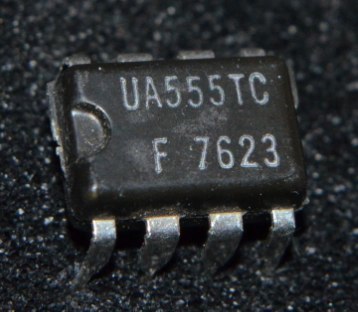

Fairchild
UA555TC F, black plastic. 7623 date code.

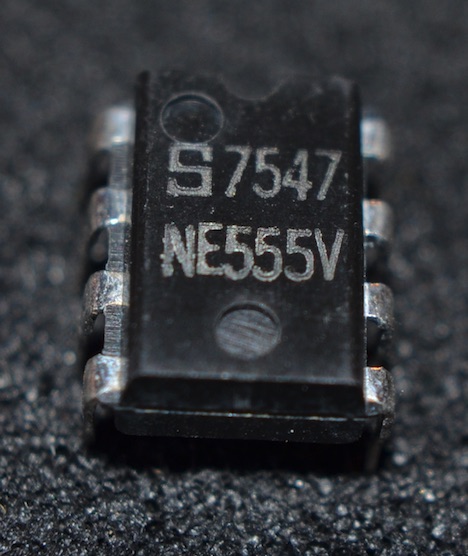

Signetics
Vertical labeling, black plastic, block “S” logo. 7547 date code. Close date code and exact labeling match to the real Apple-1.
DS/MH0025 2-Phase MOS Clock Driver
National Semi
From a photo of a real pre-NTI Apple-1.
DS/MH0025CN, black plastic, old “NS” logo.
451 date code.
Total # on board: 1.
National Semi
From a photo of a real NTI Apple-1.
DS0025CN, black plastic, old “NS” logo. 638 date code.
Total # on board: 1.
National Semi
DS/MH0025CN, black plastic, old “NS” logo. 501 date code. Close date code and exact labeling match to the real Apple-1.

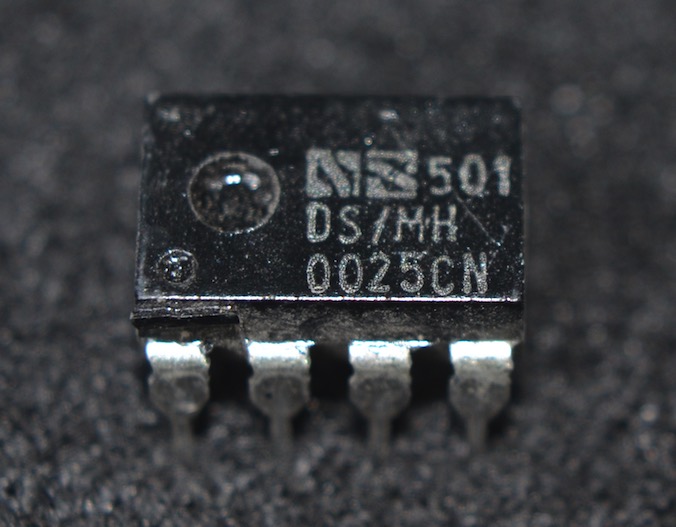

National Semi
DS/MH0025CN, semi-glossy black plastic, old “NS” logo. 501 date code.

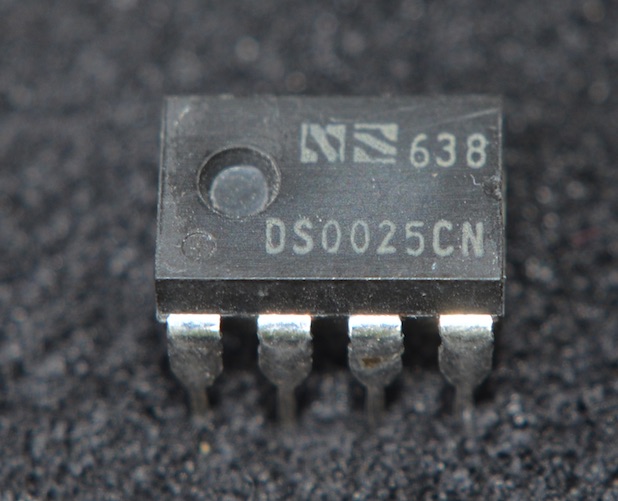

National Semi
DS0025CN, black plastic, old “NS” logo. 638 date code. Exact date code and labeling match to the real Apple-1.
National Semi

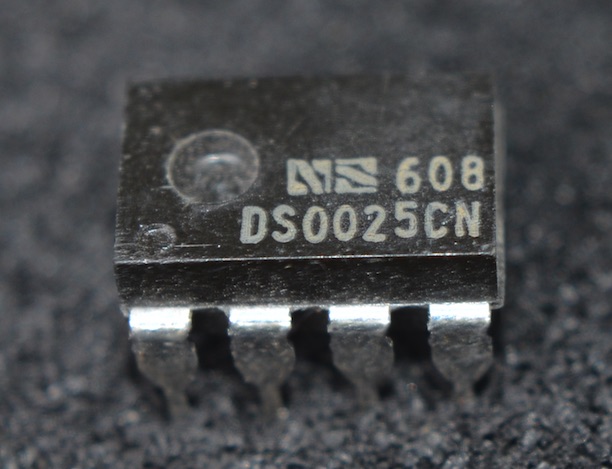

DS0025CN, black plastic, old “NS” logo. 608 date code.
ACI LM311 Voltage Comparator
National Semi
From a photo of a real NTI Apple-1 ACI card.
Old NS logo, ‘441 date code
Total # on board: 1.
Intersil
From a photo of another real NTI Apple-1 ACI card.
7620 date code.
Total # on board: 1.
Motorola
MLM311P1. From a photo of a real SCC Apple-1 ACI card.
Total # on board: 1.
National Semi

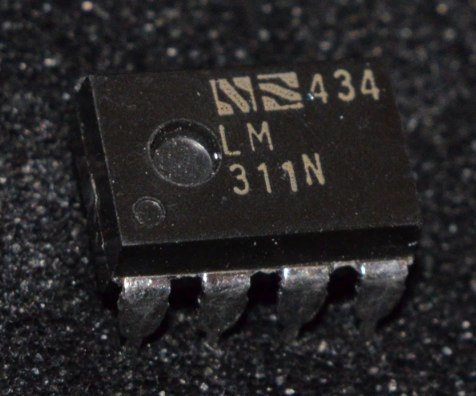

Old NS logo, ‘434 date code. Going on my replica.

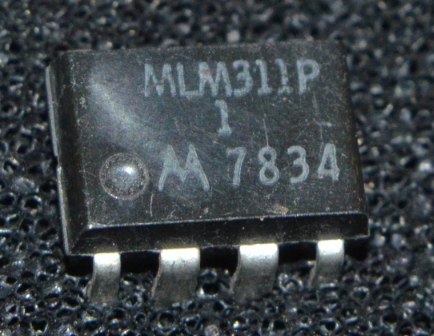

Motorola
MLM311P1. 7834 date code.
ACI 74LS02 Quad 2-Input NOR Gate

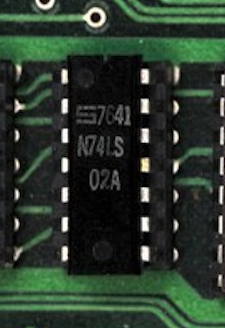

Signetics
From a photo of a real NTI Apple-1 ACI card.
N74LS02A, vertical labeling, black plastic, no “S” below part number. 7641 date code.
Total # on board: 1.

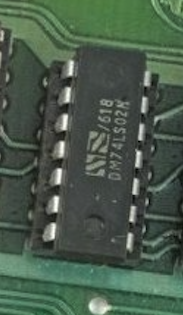

National Semi
From a photo of a real SCC Apple-1 ACI card.
DM74LS02N, old NS logo, ‘618 date code.
Total # on board: 1.

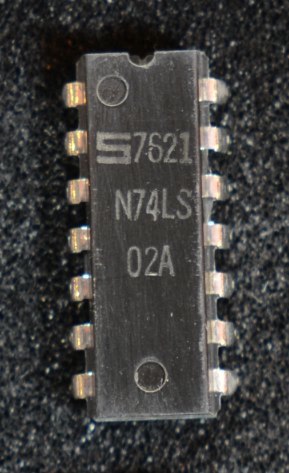

Signetics
Almost exact match with NTI card, except date code is 7621.
Fairchild
9LS/74LS02, ’75 and ’76 date codes.
ACI 74LS10 Triple 3-Input NAND Gate

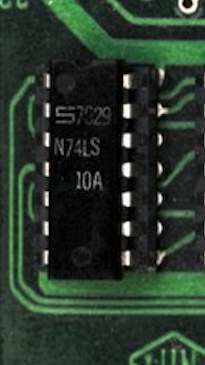

Signetics
From a photo of a real NTI Apple-1 ACI card.
N74LS10A, vertical labeling, black plastic, no “S” below part number. 7629 date code.
Total # on board: 1.

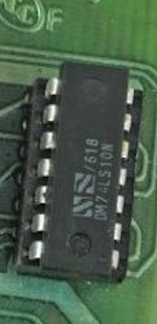

National Semi
From a photo of a real SCC Apple-1 ACI card.
DM74SL10N, old NS logo, ‘618 date code
Total # on board: 1.
National Semi
Old NS logo, ‘525 date code.

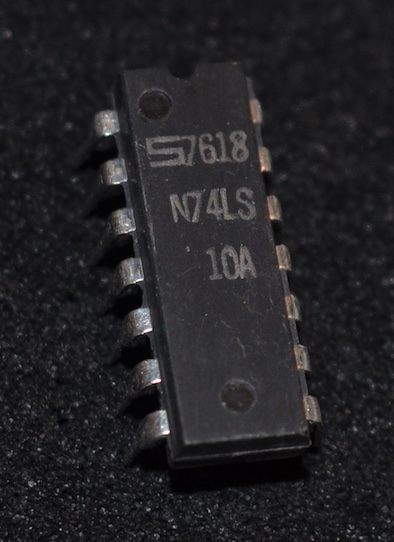

Signetics
N74LS10A, vertical labeling, no “S”. 7618 date code.

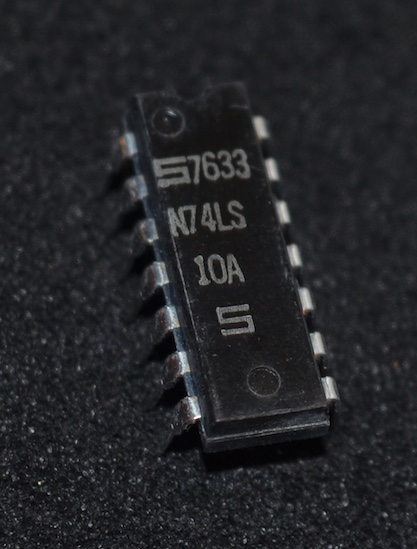

Signetics
N74LS10A, vertical labeling, with “S”. 7633 date code.
ACI 74LS74 Dual D-Type Flip Flop

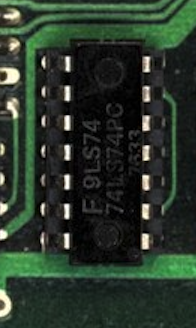

Fairchild
From a photo of a real NTI Apple-1 ACI card.
9LS74/74LS74PC. 7633 date code.
Total # on board: 1.

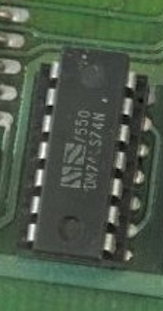

National Semi
From a photo of a real SCC Apple-1 ACI card.
DM74LS74N, old NS logo, ‘550 date code.
Total # on board: 1.

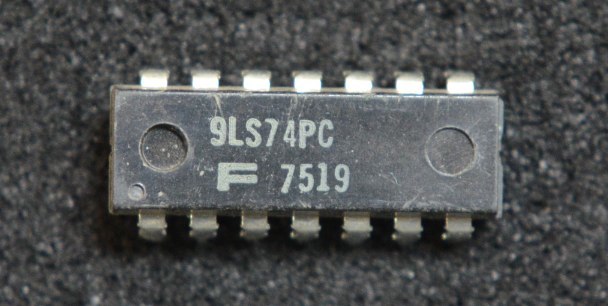

Fairchild
9LS74PC, 7519 date code. Stretched “F”.
